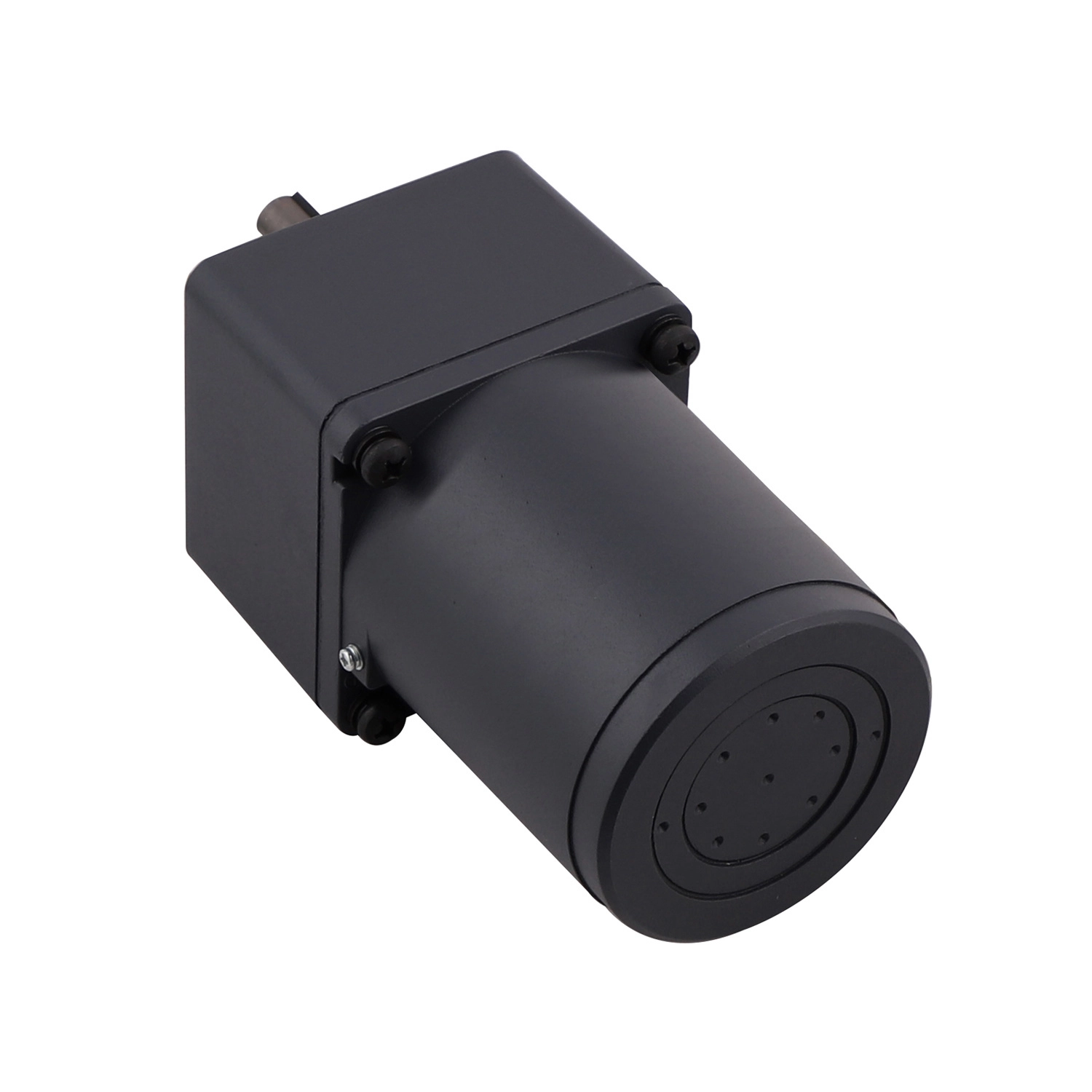

90mm 90W Induction Motor for Compact Drive Systems
Caida's 90mm 90W induction motor is positioned for equipment builders that need steady AC rotation in compact industrial machines. It can support practical drive layouts for conveyors, feeding units, packaging stations, light automation modules, small pumps, and rotating fixtures where frame size, shaft output, and gearbox choice must stay consistent across repeat orders.
For buyers comparing Induction motor manufacturers and evaluating ac motor manufacturers, the key decision is not only rated power. Procurement teams also need drawing support, configuration clarity, packing stability, and a supplier that can discuss gear motor options for real equipment conditions.
Application Fit and Product Specifications
This configuration is suited to OEM projects where buyers need a repeatable motor platform and a clear path for confirming voltage, gear ratio, shaft interface, and mounting requirements before sample approval.
Description

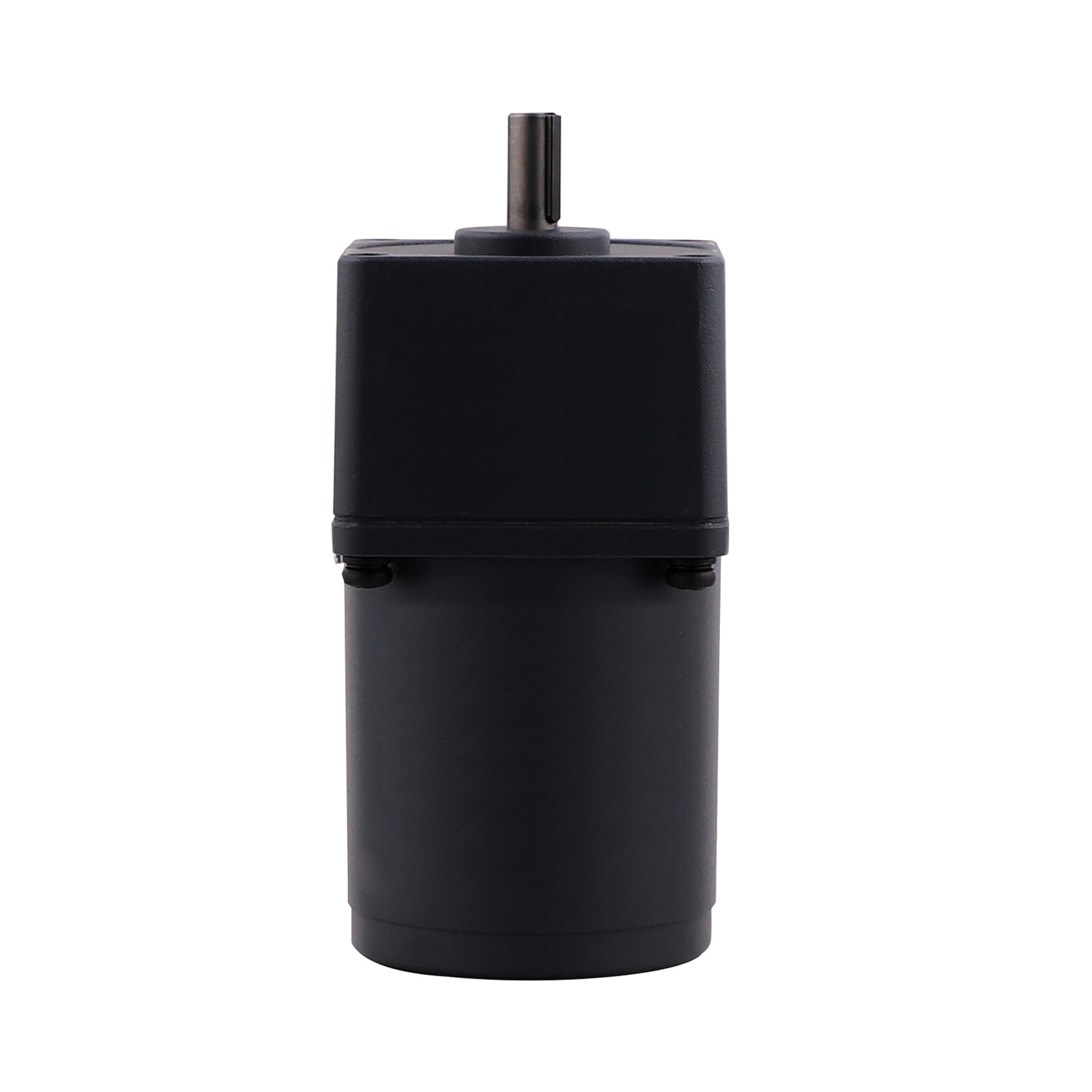

The 90mm 90W induction motor is a compact AC motor platform for equipment where continuous, stable rotation matters more than high-speed repositioning. Buyers can review it as a motor-only unit or as part of a gear motor selection when output speed reduction, right-angle installation, or holding after stop is required. The supplied media image keeps the product view close to the specification table so engineers can compare visual structure and selection details without a split layout.
Product Specifications
| Product type | AC induction motor |
|---|---|
| Frame size | 90mm class |
| Rated output | 90W |
| Motor family | Induction motor and gear motor compatible selection |
| Gearbox options | Parallel shaft, worm gearbox, bevel gearbox, or project-specific gear reduction to be confirmed |
| Brake option | Available when holding or stop control is required, subject to configuration review |
| Voltage and frequency | To be confirmed by project requirements |
| Installation checks | Mounting hole position, shaft size, rotation direction, and space envelope |
| Typical use | Compact conveyors, packaging equipment, small automation modules, feeding equipment, and light industrial drives |
| Selection status | Confirm with load, duty cycle, speed, torque, and mounting requirements before sample order |
Core Supply Advantages
Configuration support across motor-only, gear motor, right-angle, and brake-assisted selections helps buyers keep one drive family aligned with several compact machine layouts.
Repeatable Project Matching
Caida can review application data such as speed, torque, shaft interface, duty cycle, and installation space so repeated procurement can follow a controlled specification path.
Buyer-Oriented Documentation
Engineering and purchasing teams can request drawings, configuration discussion, and packing details that support sample approval and later batch ordering.
Related Engineering Reading
These Caida articles support engineers and procurement teams that are comparing compact motor behavior, AC motor upgrades, and wider gear motor product-line choices.
Technical Insights on 90mm 90W Mini Motors
A focused technical reference for buyers reviewing compact motor behavior in industrial applications, including how small-frame motors relate to installation space and drive stability.
Read Caida technical insightEvaluating AC Motors for Equipment Upgrades
This article helps maintenance and OEM teams compare AC motor upgrade factors such as fit, electrical requirements, and replacement planning for light industrial machines.
Review AC motor upgrade factorsGear Motor Product Lines for Industrial Use
A broader product-line overview for procurement teams comparing motor and gearbox combinations across machinery, automation, and industrial drive requirements.
Compare gear motor product linesVerified Procurement Feedback
Procurement teams value compact motor suppliers that can discuss configuration details clearly and keep repeat orders aligned with approved equipment requirements.
Five-star procurement review
"The 90mm motor selection discussion helped our team compare frame size, output speed, and gearbox direction before we released the sample request for a compact conveyor project."
OEM Sourcing Manager, Germany
Five-star procurement review
"Caida's team asked for the load, mounting direction, and duty cycle instead of quoting a generic part. That made the replacement review smoother for our equipment upgrade program."
Maintenance Purchasing Lead, United States
Five-star procurement review
"We needed a repeatable AC motor platform for small packaging equipment. The configuration notes gave our engineering and purchasing teams a clearer approval checklist."
Procurement Engineer, United Arab Emirates
90mm 90W Induction Motor FAQ
These questions cover the practical checks that help buyers match a compact induction motor to real equipment conditions.
What equipment is a 90mm 90W induction motor commonly selected for?
A 90mm 90W induction motor is commonly reviewed for compact conveyors, packaging equipment, material feeding units, small pumps, light-duty turntables, and automation stations where steady AC rotation is required. Buyers should confirm mounting pattern, shaft output, voltage, frequency, duty cycle, ambient temperature, and gearbox ratio before approving the motor for a production machine.
Which details should engineers confirm before replacing an existing AC motor?
Engineers should compare frame size, output power, voltage, frequency, shaft diameter, shaft length, mounting hole position, rotation direction, capacitor requirement, wiring method, insulation needs, and thermal conditions. If a gearhead is used, the ratio, output torque, gearbox type, and load inertia should also be checked to prevent undersized operation.
How should procurement teams compare induction motor suppliers for OEM equipment?
Procurement teams should look beyond the motor nameplate and review batch consistency, drawing support, sample evaluation process, packing method, test documentation, communication speed, and ability to supply matching gearboxes or brake options. A stable supplier should help the buyer reduce model confusion across repeated equipment builds.
Can the 90mm 90W induction motor be paired with different gearbox formats?
The 90mm 90W motor family is often discussed with gear reduction options such as parallel shaft gearboxes, right-angle worm gearboxes, bevel gearbox arrangements, and brake motor combinations. The final configuration should be confirmed by ratio, output speed, torque requirement, space envelope, and installation direction.
What information helps Caida recommend the correct motor configuration?
Useful details include equipment type, target output speed, load weight, start-stop frequency, operating hours, available voltage, mounting orientation, shaft interface, control method, environmental temperature, and whether holding force is needed after stop. Photos or drawings of the existing motor can also reduce selection risk.
Why is application matching important for a compact induction motor?
Compact induction motors are selected as part of a drive system, not as isolated parts. A motor that matches nameplate power may still perform poorly if gearbox ratio, load inertia, duty cycle, ventilation, or installation space is wrong. Application matching helps buyers choose a motor that supports stable rotation and repeatable machine output.
