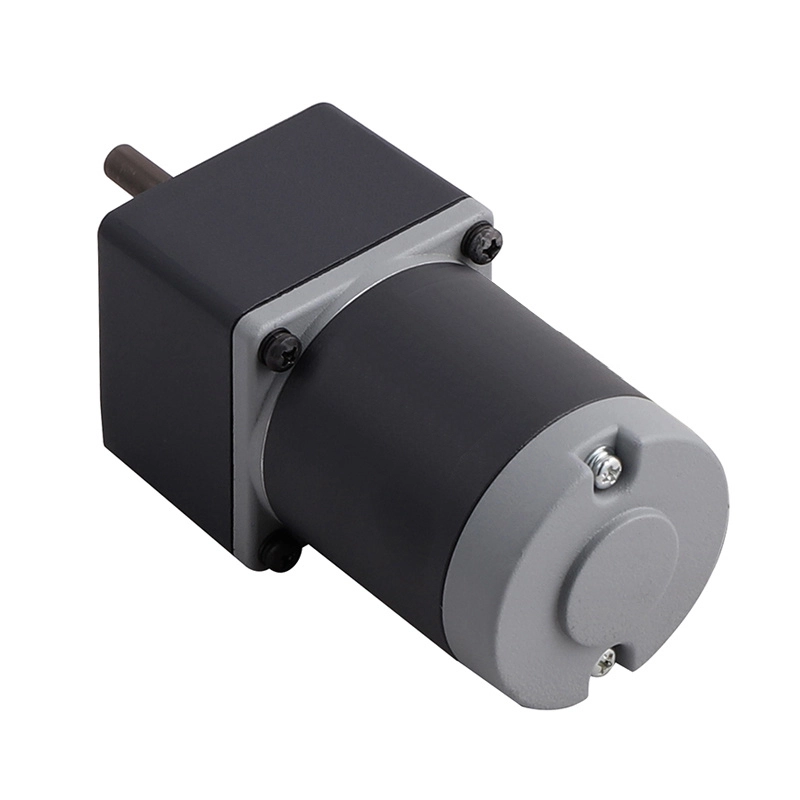

Caida Z2D06 Series
Compact DC Motors for Small Motion Control Applications
The Z2D06 60mm 6W DC motor gives equipment builders a compact drive option for automation modules, logistics devices, medical equipment, security systems, and light industrial mechanisms that need controlled rotary output in a small frame.
For buyers comparing a gear motor manufacturer and a custom gear motor supplier, the practical value is in matching voltage, speed, gear ratio, shaft interface, and installation conditions before moving into sample approval or repeat purchasing.
Caida lists 12V, 24V, and 90V motor variants with 2GN gearmotor data, helping engineering teams select between higher speed movement and lower speed output with increased rated torque.
Media and Product Specifications
Description

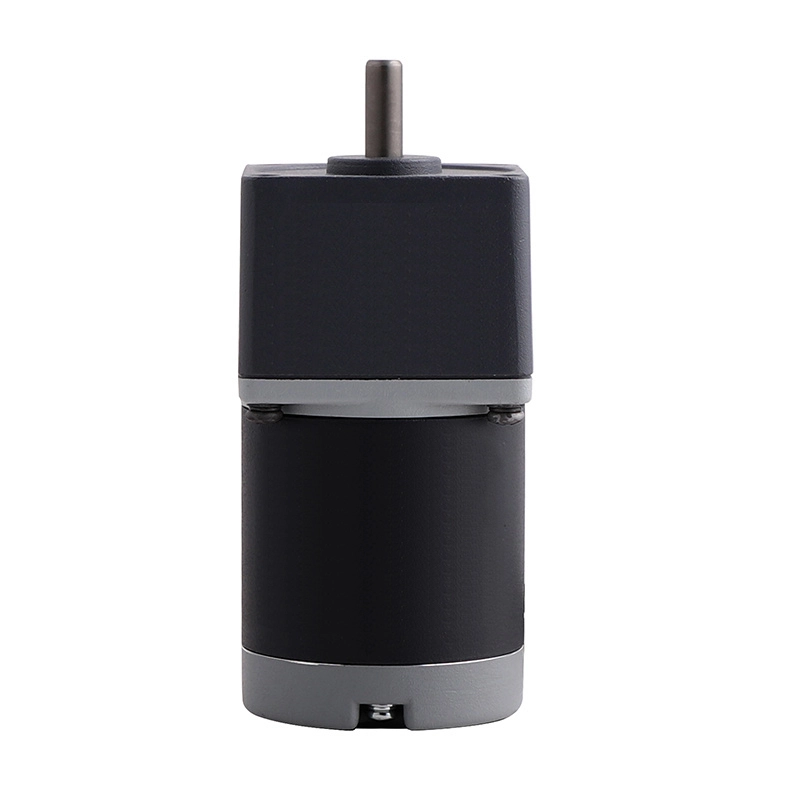

The 60mm 6W DC motor is designed for compact equipment where controlled speed, modest rated torque, and repeatable fitment matter more than oversized power. Its listed motor variants and 2GN gearmotor data support early selection for conveyor subassemblies, small pumps, automatic access devices, compact machine modules, and embedded motion systems.
Product Specifications
| Model | Voltage | Power | No-load Speed | Rated Speed | Starting Torque |
|---|---|---|---|---|---|
| Z2D06-12 | 12V | 6W | 3200 r/min | 2950 r/min | 19 mNm |
| Z2D06-24 | 24V | 6W | 3200 r/min | 2950 r/min | 19 mNm |
| Z2D06-90 | 90V | 6W | 3000 r/min | 2800 r/min | 20 mNm |
| Motor Weight | 0.6 kg | Brush Life | 2000H | Gearmotor Data | 2GN series |
| 2GN Gear Ratio | Output Speed | Rated Torque |
|---|---|---|
| 3 to 10 | 983 to 295 r/min | 0.05 to 0.16 Nm |
| 12.5 to 30 | 236 to 98 r/min | 0.20 to 0.42 Nm |
| 36 to 75 | 82 to 39 r/min | 0.51 to 0.96 Nm |
| 90 to 200 | 33 to 15 r/min | 1.15 to 2.55 Nm |
Core Supply Advantages
Application Matching
Model choice can be reviewed against voltage, output speed, load profile, shaft connection, and machine space before sample confirmation.
Gear Ratio Coverage
The 2GN data gives buyers a practical range from faster low-ratio output to slower movement with higher rated torque.
Sourcing Support
Caida supports comparison across DC motors, AC/DC gearmotors, BLDC gearmotors, planetary gearmotors, and mini motor options.
Related Engineering Articles
Increasing Operational Efficiency with AC DC Gear Motors in Industrial Settings
This article reviews how AC and DC gear motors support continuous industrial workflows, with attention to torque, size, operation rhythm, and practical customization.
Read ArticleComprehensive Overview of AC Gear Motor Solutions for Industrial Machinery
This overview explains standard induction AC gear motor design, power rating selection, and application-specific adaptation for industrial machinery.
Read ArticleEnhancing Industrial Automation Through Reliable DC Gear Motor Technology
This DC gear motor article focuses on long operating hours, reduced maintenance demands, shaft and connector adaptation, and compact automation use cases.
Read ArticleVerified Procurement Feedback
★★★★★
"We evaluated the 60mm 6W DC motor for a compact access-control actuator. The data table made it easier to shortlist voltage and gear ratio before requesting samples."
Product Engineer, Germany
★★★★★
"Our team compared several compact DC gear motor options for a small conveyor module. Caida's model information helped us align output speed with the expected load."
Procurement Manager, United States
★★★★★
"The 2GN ratio range was useful during early design review. We could compare compact high-speed movement with slower torque-focused output for a device update."
Automation Sourcing Lead, Singapore
FAQ
Which applications are suitable for the Z2D06 60mm 6W DC motor?
The Z2D06 60mm 6W DC motor is suitable for compact motion control where moderate torque, small installation size, and stable low-voltage operation are required. Typical evaluation areas include small conveyors, dosing modules, access devices, light-duty automation fixtures, compact medical equipment, and security actuators.
How should buyers select between 12V, 24V, and 90V versions?
Voltage selection should match the equipment power architecture, control board output, safety design, and available driver configuration. The 12V and 24V options are common for compact low-voltage devices, while the 90V option may fit systems designed around higher DC supply levels. Final selection should be checked against load torque, duty cycle, wiring length, and controller limits.
What gear ratio range is available with the 2GN gearmotor data?
The listed 2GN gearmotor data covers gear ratios from 3 to 200. Output speed decreases as the ratio rises, while rated torque increases across much of the range. Buyers can use this range to compare fast light-load movement against slower movement requiring higher output torque.
What technical details should be confirmed before sample evaluation?
Before sample evaluation, confirm rated voltage, gear ratio, target output speed, operating load, shaft interface, mounting orientation, connector or cable format, duty cycle, ambient temperature, and installation space. These details help align the motor and gearbox combination with real equipment conditions.
Can the motor support repeated starts and stops in automation equipment?
The motor can be evaluated for repeated starts and stops when the load, acceleration profile, thermal rise, and controller settings are defined. For frequent cycling, buyers should review rated torque, starting torque, heat buildup, gear ratio, and expected operating rhythm rather than selecting by power rating alone.
Why work with Caida for compact gear motor sourcing?
Caida provides product families across AC/DC gearmotors, right angle gearmotors, BLDC gearmotors, planetary gearmotors, servo motors, stepper motors, and mini motors. This range helps engineering and procurement teams compare compact drive options, request model-specific data, and align motor selection with installation and batch sourcing needs.
