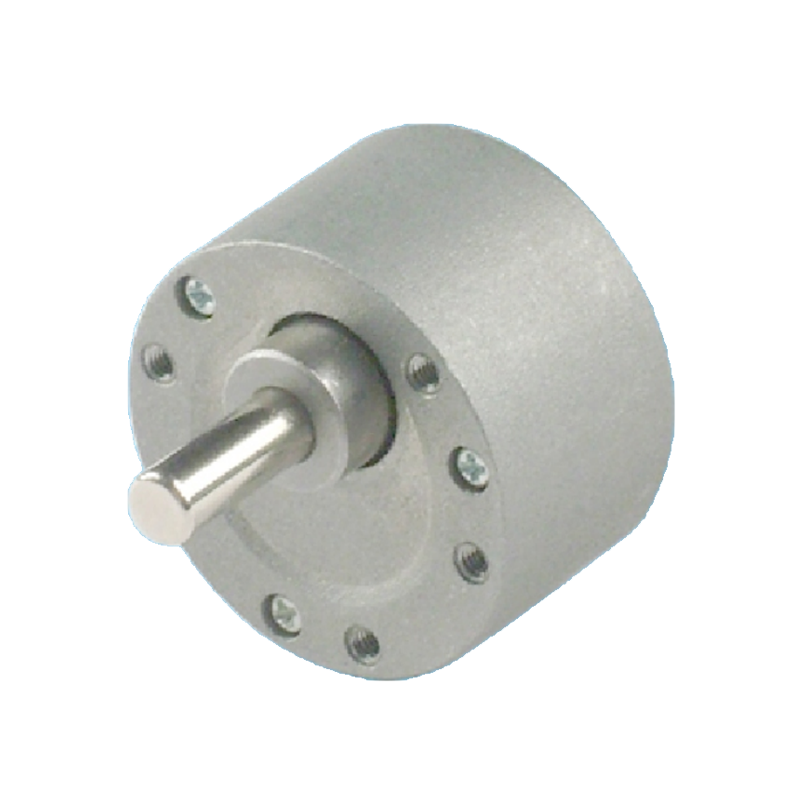

Note:
1、 Housing material:zinc alloy
2、≤2° Backlash,at no-load:≤2°
3 、 Bearing at output:Sleeve bearings
4、≤0.05mm Radial play of shaft:≤0.05mm
5、≤0.5mm Thrust play shaft:≤0.5mm
6、The gear box can apply to 520,528,545,555,385,395,36ZY motors.
7 、When the motors using at low speed,high gear ratio will cause gear motor torque more than 30kgf.cm.At this torque the gears will be broken easily.Be noted.
8 、When install the gear motor please don't let the screws go through into the gearbox internal more then 3.5mm.If so the gearbox will be demaged.

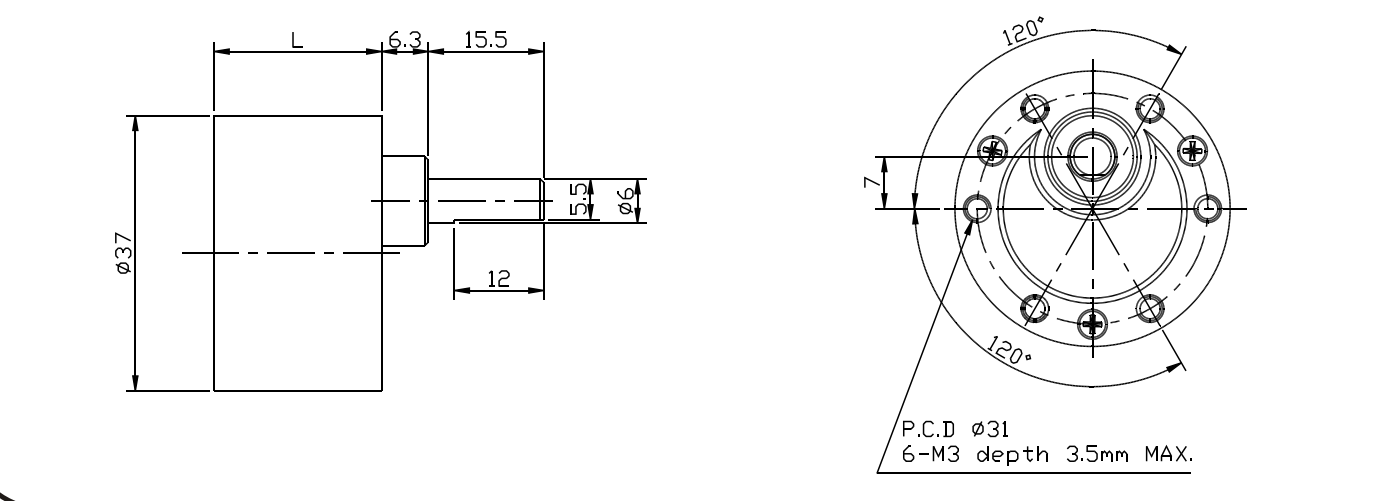

APPEARANCE SIZE
PINION SPECIFICATIONS
|
Model |
0.4M |
0.4M |
0.5M |
|
No.of teeth |
13 |
12 |
10 |
|
Pressure angle |
20° |
||
|
Helix angle |
15°left |
15°left |
|
|
Hole diameter |
Φ3.12 |
Φ3.12,Φ1.97,Φ2.27,Φ2.96 |
Φ1.98 |
|
Reduction ratio |
6 |
10,20,30,60,90,120,180,270,489,540,810 |
489,810,1620,2430 |

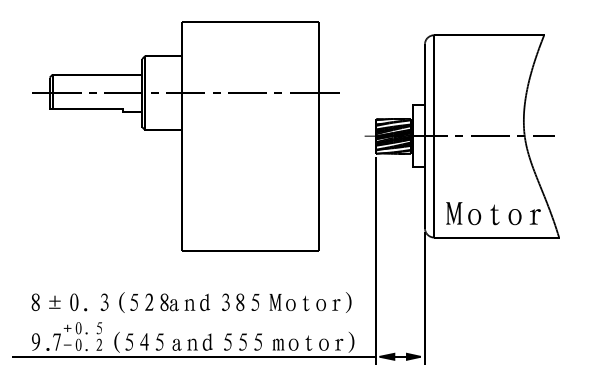

MOTOR INSTALLATION
GEARBOXES SPECIFICATIONS
|
Reduction ratio |
Rated torque |
Max breaking torque |
Efficiency |
Number of stages |
“L”mm |
Direction(Relationship with motor) |
|
6,10 |
0.5kgf.cm |
1.5kgf.cm |
81% |
2 |
22.523.5 |
Same |
|
20,30 |
1.5kgf.cm |
4kgf.cm |
73% |
3 |
22.523.5 |
Different |
|
60,90 |
3kgf.cm |
8kgf.cm |
65% |
4 |
2526 |
Same |
|
120,180,270 |
10kgf.cm |
30kgf.cm |
59% |
5 |
2728 |
Different |
|
360 |
10kgf.cm |
30kgf.cm |
53% |
6 |
2930 |
Same |
|
540,810 |
10kgf.cm |
30kgf.cm |
53% |
6 |
2930 |
Same |
