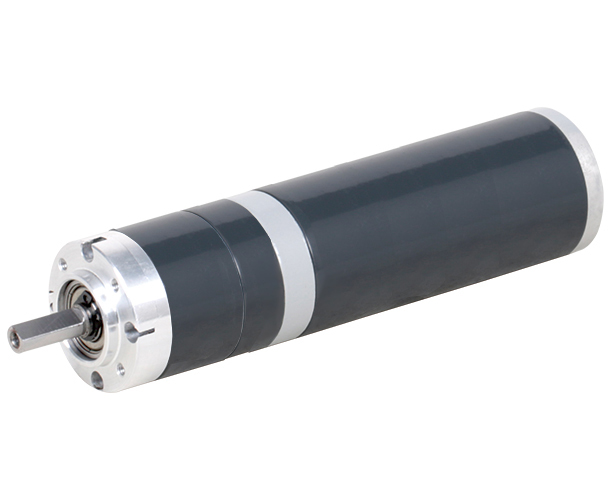

Outside Diameter 32 DC Brushless Motor
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| U | V | W | GND | Hv | Hw | Hu | +Vcc |
|
Motor Type |
Gearbox Model |
Gear Ratio |

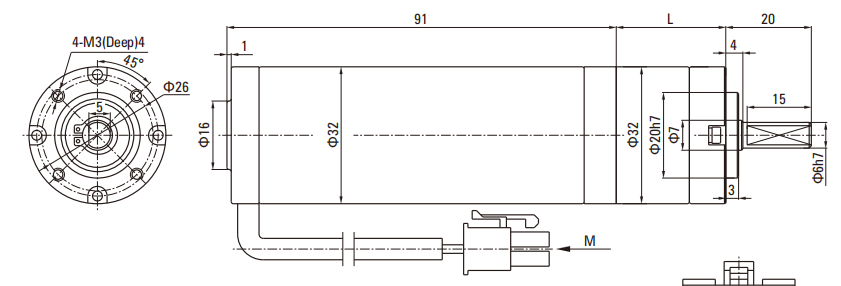

Dimension |
|
Z32BLDPN |
32PN□ |
3.7~6.75 | 13.73~45.56 | 50.89~307.54 |
25.6 | 35.9 | 46.2 |
BLDC Motor Technical Data
|
Motor Type |
Voltage(V) |
Rated Power(W) |
Rated Current(A) |
Rated Speed(RPM) |
Rated Torque(N.m) |
Grade Protection(IP) |
|
Z32BLDPN2420-40S |
24 | 20 | 1.3 | 4000 | 0.048 | 20 |
BLDC Planetary Gear Motor Technical Data
|
Gear Ratio
|
Output shaft speed (r/min) |
Allowable torque(Nm) |
Reduction stage |
|---|---|---|---|
| 3.7 | 1081 | 0.16 | 1 |
| 4.29 | 932 | 0.092 | 1 |
| 5.18 | 772 | 0.22 | 1 |
| 6.75 | 593 | 0.29 | 1 |
| 13.73 | 291 | 0.53 | 2 |
| 19.2 | 208 | 0.74 | 2 |
| 25 | 160 | 0.97 | 2 |
| 28.93 | 138 | 1.12 | 2 |
| 34.97 | 114 | 1.35 | 2 |
| 45.56 | 88 | 1.76 | 2 |
| 50.89 | 79 | 1.77 | 3 |
| 68.08 | 59 | 2.37 | 3 |
| 78.7 | 51 | 2.74 | 3 |
| 92.7 | 43 | 3.23 | 3 |
| 99.5 | 40 | 3.47 | 3 |
| 115.1 | 35 | 4.00 | 3 |
| 129.6 | 31 | 4.00 | 3 |
| 149.9 | 27 | 4.00 | 3 |
| 168.85 | 24 | 4.00 | 3 |
| 195.28 | 20 | 4.00 | 3 |
| 236.1 | 17 | 4.00 | 3 |
| 307.54 | 13 | 4.00 | 3 |
