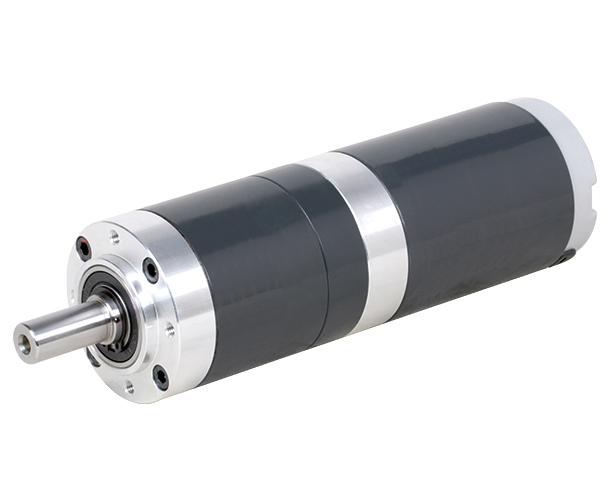

Outside Diameter 72 DC Brush Motor
|
Motor Type |
Gearbox Model |
Gear Ratio |

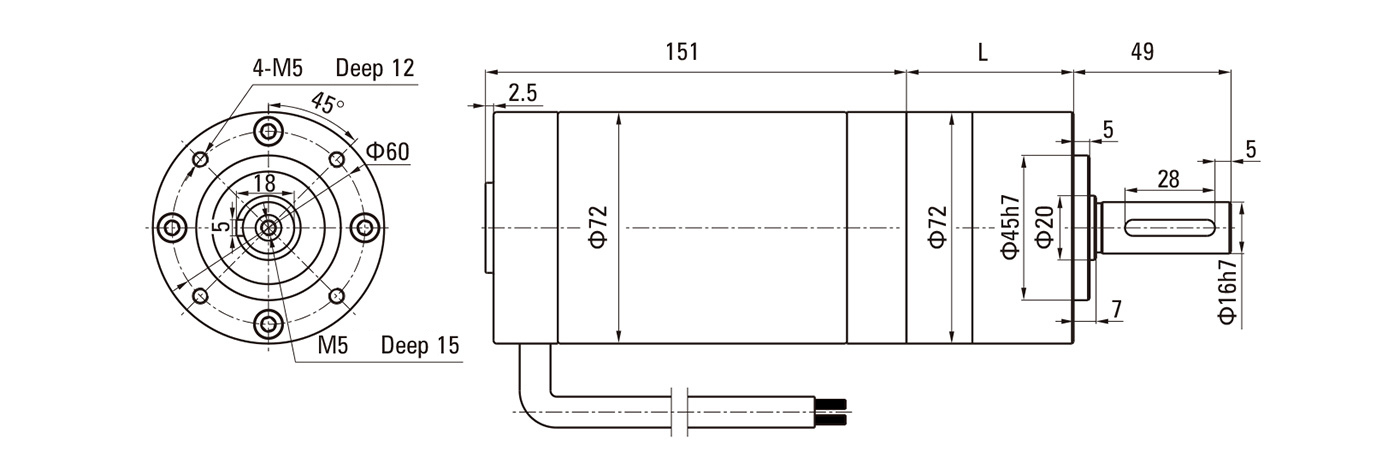

Dimension |
|
Z72DPN |
72PN□ |
3.65~8.63 | 13.53~58.22 | 67.08~392.98 |
52.00 | 72.15 | 92.30 |
DC Motor Technical Data
|
Motor Type |
Voltage(V) |
Rated Power(W) |
No-load Current(A) |
No-load Speed(RPM) |
Rated Current(A) |
Rated Speed(RPM) |
Rated Torque(N.m) |
Motor Life(H) |
|
Z72DPN1260-30S |
12 |
60 |
2.0 |
3500 |
7.2 |
3000 |
0.191 |
2000 |
|
Z72DPN2490-30S |
24 |
90 |
2.0 |
3400 |
5.5 |
3000 |
0.287 |
2000 |
|
Z72DPN24120-30S |
24 |
120 |
2.0 |
3500 | 7.2 | 3000 |
0.382 |
2000 |
DC Planetary Gear Motor Technical Data
|
Gear Ratio
|
Output shaft speed (r/min) |
Allowable torque(Nm) |
Reduction stage |
|---|---|---|---|
| 3.65 | 822 | 0.94 | 1 |
| 5.36 | 560 | 1.38 | 1 |
| 6.55 | 458 | 1.69 | 1 |
| 8.63 | 348 | 2.23 | 1 |
| 13.53 | 222 | 3.15 | 2 |
| 18.92 | 159 | 4.40 | 2 |
| 24.65 | 122 | 5.73 | 2 |
| 28.05 | 107 | 6.52 | 2 |
| 33.92 | 89 | 7.89 | 2 |
| 44.69 | 67 | 10.39 | 2 |
| 58.22 | 52 | 13.53 | 3 |
| 67.08 | 45 | 14.05 | 3 |
| 81.11 | 37 | 16.99 | 3 |
| 91.36 | 33 | 19.14 | 3 |
| 102.88 | 29 | 21.55 | 3 |
| 118.98 | 25 | 24.93 | 3 |
| 127.74 | 24 | 26.76 | 3 |
| 145.36 | 21 | 30.45 | 3 |
| 165.64 | 18 | 34.70 | 3 |
| 191.56 | 16 | 40.13 | 3 |
| 231.61 | 13 | 48.52 | 3 |
| 301.68 | 9.9 | 63.20 | 3 |
| 392.98 | 7.6 | 82.33 | 3 |
