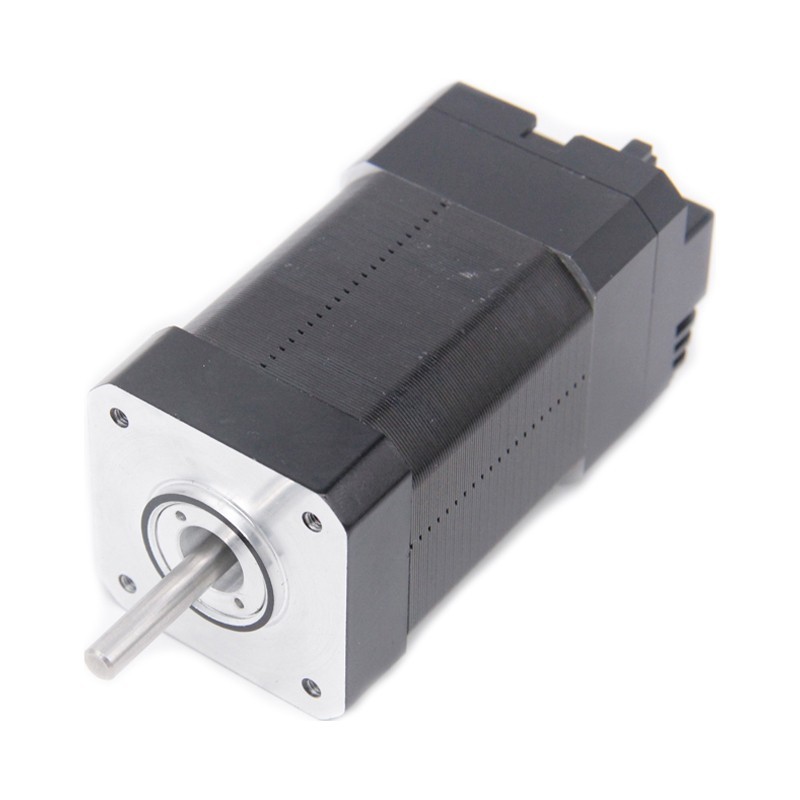

The 17HSM servo motor with integrated driver merges compact design and precision control, delivering optimized automation performance from a trusted integrated stepper motor manufacturer with high reliability in 24v closed loop stepper motor technology.
Product Advantages
Structural and System Design Strengths
The 17HSM servo motor with integrated driver exemplifies an optimized structural design by merging motor and drive components into a unified assembly. This integration reduces installation space and significantly lowers wiring complexity, addressing critical constraints in machine design. From a system engineering perspective, the modular approach promotes easier maintenance and scalability, with configurable parameters tailored by the integrated stepper motor manufacturer to meet specific industry standards. The compact form factor also reinforces packaging efficiency in applications requiring high precision from a 24v closed loop stepper motor architecture.
Performance Efficiency and User-Centered Value
Performance-wise, the closed-loop servo algorithm embedded in the 17HSM ensures precision positioning with minimal latency and robust torque consistency, aligning with the demands of high-accuracy automation. The integrated driver’s configurability empowers system controllers to customize operational parameters, facilitating smoother workflow integration and enhanced uptime. Users benefit from reductions in design and production cost while maintaining reliability standards expected from a reputable closed loop stepper motor supplier. This product thus supports improved engineering ROI across multiple industrial sectors.
Product Description
The stepper all-in-one machine is a perfect combination of drive and stepper motor; it perfectly integrates stepper motor and drive technology, which can not only save installation space, but also simplify wiring at the same time. Save design costs and production costs for you.
Compact integration;
Servo algorithm closed-loop control;
Customizable drive function;
Customizable motor parameters;
Customizable screw.
Electrical Specifications

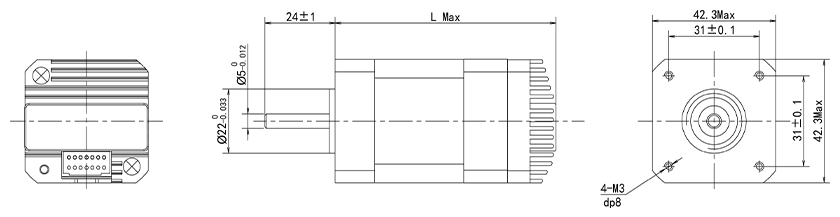

| Series Model | Input Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.cm) | Motor Length L (mm) | Rotor Inertia (g.cm²) | Step Angle (°) |
| 17HSM3401-TBXXX | 24V | 1.3 | 2.4 | 3.5 | 28 | 61 | 34 | 1.8 |
| 17HSM4401-TBXXX | 24V | 1.7 | 1.5 | 2.8 | 40 | 67 | 54 | |
| 17HSM8403-TBXXX | 24V | 2.3 | 1.2 | 1.6 | 50 | 76 | 68 |
Use Scenarios
Compact Automation Systems in Robotics and Equipment Manufacturing
In robotics and precision equipment manufacturing, compactness and accuracy are paramount. The 17HSM’s role as a servo motor with integrated driver provides these systems with a space-saving yet high-torque motor solution, simplifying installation with minimized cabling requirements. Its closed-loop feedback enhances positioning accuracy critical to robotic arms and automated assembly equipment. The integration streamlines system workflows, increasing manufacturing throughput while ensuring compliance with industry engineering criteria for motion control reliability, as expected from a leading integrated stepper motor manufacturer.
Custom Industrial Equipment with Specific Drive Configurations
For custom machinery and prototype developments, variable operational demands necessitate adaptable motor solutions. The 17HSM supports customizable drive functions and screw options, enabling seamless adaptation to unique mechanical configurations. Operating at 24 volts, this 24v closed loop stepper motor is suitable for environments requiring precise torque control and efficient feedback loops. Its inclusion as a core actuator within these custom systems ensures compliance with design requirements and facilitates integration into broader automation platforms managed by system integrators and engineering teams in industrial settings.
What voltage does the 17HSM Servo Motor With Integrated Driver require?
Our 17HSM series operates at a standardized 24V input voltage, ensuring compatibility with common industrial power supplies. This stable voltage supports the motor’s performance and allows seamless integration into your automation setup as a reliable 24V closed loop stepper motor.
Can you customize the motor and drive parameters for specific applications?
Yes, we offer customization for drive functions, motor parameters, and screw options to fit your project needs. Our flexibility as an integrated stepper motor manufacturer allows us to tailor the servo motor with integrated driver exactly to your operational requirements.
How does having an integrated driver simplify installation and maintenance?
By combining motor and driver into one compact unit, we reduce wiring complexity and installation space. This streamlines your production process and lowers costs, while providing a cleaner setup that facilitates quicker maintenance and troubleshooting for optimal uptime.
What logistics support is available for international customers?
We maintain European overseas warehouses enabling local 72-hour delivery across Europe. This ensures timely supply and reduces lead times for your orders, helping your projects progress without delay while maintaining access to our certified closed loop stepper motor supplier expertise.
