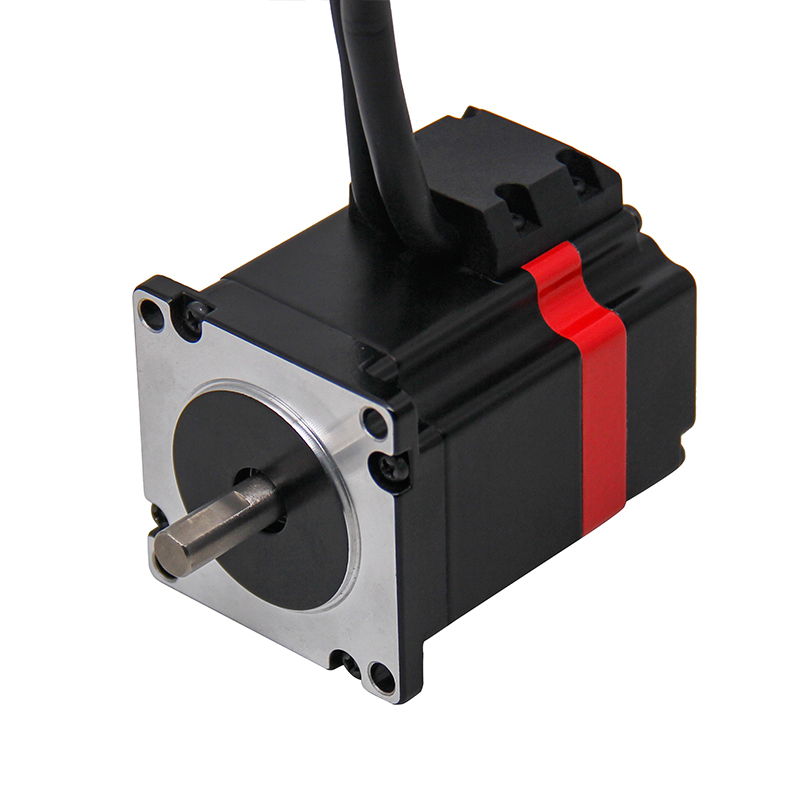

Step-Servo System are specifically designed to be paired with Step-Servo Motor to create motor and drive combinations that outperform traditional step motor systems. Each Step-Servo motor is a premium, two-phase, hybrid step motor built with an integral high resolution feedback device. The performance gains achieved when using a Step-Servo motor in combination with one of our Step-Servo drives include high peak torque ranges for faster acceleration and greater machine throughput, as well as quieter operation and less power consumption.
Low vibration
Low noise
Low fever
High efficiency
High response
High precision
High torque

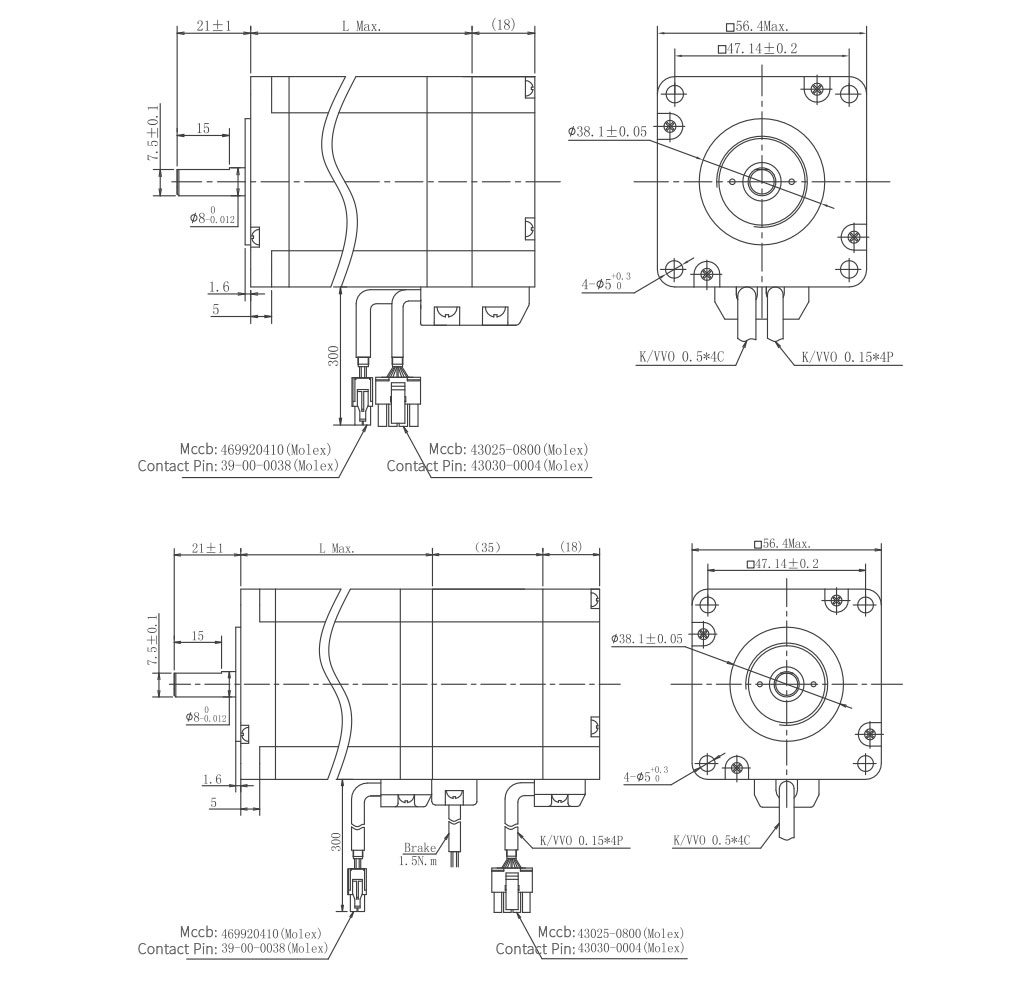

Electrical Specifications| Series Model |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Lead Wire (No.) |
Holding Torque (N.cm) |
Motor Length L (mm) |
Rotor Inertia (g.cm²) |
Motor Weight (g) |
Step Angle (°) |
| 23HSM6404EG | 4.2 | 0.4 | 1.2 | 4 | 1.1 | 54 | 980 | 420 | 1.8 |
| 23HSM80404EG | 4.2 | 0.7 | 2.0 | 2.2 | 80 | 480 | 1050 | ||
| 23HSM1460EG | 6.0 | 0.38 | 1.5 | 2.7 | 100 | 680 | 1250 | ||
| Encoder Resolution | 2500 | Line Driver Output | 3-channel:A+A-B+B-Z+Z- | ||||||

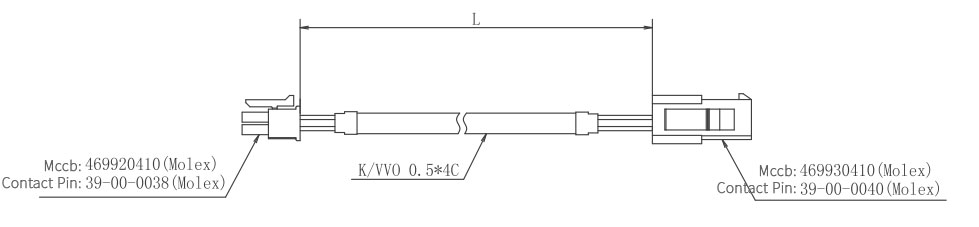

| Type | Length |
| 23-469920410/469930410-100A | 1M |
| 23-469920410/469930410-200A | 2M |
| 23-469920410/469930410-500A | 5M |
| 23-469920410/469930410-1000A | 10M |

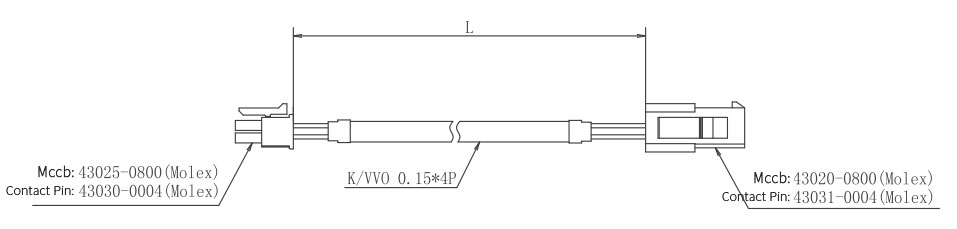

| Type | Length |
| 430250800/430200800-100A | 1M |
| 430250800/430200800-200A | 2M |
| 430250800/430200800-500A | 5M |
| 430250800/430200800-1000A | 10M |
