| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) |
Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Length (mm) | Encoder Resolution (P/R) |
| 24SSTT482030 | 3 |
10 |
48 |
3000 |
0.64 | 200 | 5.5 | 82 | 1000, 1024, 2500/17bit |
| 24SSTT484030 | 1.27 | 400 | 11 | 97 | |||||
| 24SSTT2202030 | 3 | 10 | 220 | 3000 | 0.64 | 200 | 1.45 | 82 | |
| 24SSTT2204030 | 1.27 | 400 | 2.9 | 97 |
*Note: We can manufacture products according to customer's requirements.

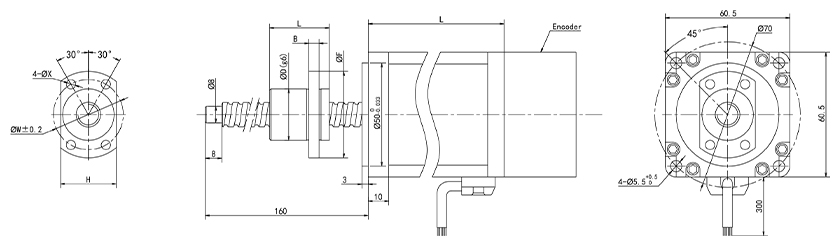

| Lead screw model | Lead screw diameter | Lead screw guide | Steel ball diameter | Cycle | Rating load N | Nut | ||||||||
| d | P | Da | n | Dynamic load Ca | Static load Coa | D | F | B | L | E | W | H | X | |
| 1202 | 12 | 2 | 1.5875 | 3.7×1 | 3000 | 6400 | 25 | 42 | 5 | 24 | 34 | 27 | 4.5 | |
| 1210 | 12 | 10 | 2.381 | 1.7×2 | 5100 | 9600 | 24 | 41 | 5 | 30 | 9.5 | 33 | 26 | 4.5 |
