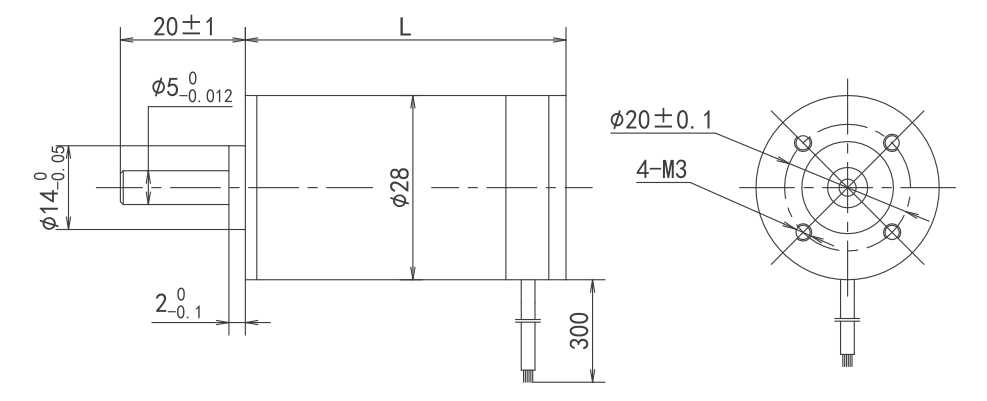

Basic Size: 28mm
Length (mm): 49mm-69mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.02-0.04N.m
Rated Power (W): 8-16W
Rated Speed (Rpm): 4000Rpm
Electrical Specifications
| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) | Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Peak Current (A) | Peak Torque (N.M) | Rotor Inertia (kg.cm²) | Torque Constant (N.m/A) | Torque Constant (V/krpm) | Line-Line Resistance (Ω) | Line-Line Inductance (mH) | Length (mm) | Weight (kg) |
| 28RLSE240840 | 3 |
8 |
24 |
4000 |
0.02 | 8 | 0.4 | 1.2 | 0.06 | 0.009 | 0.05 | 4.48 | 1.9 | 0.9 | 49 | 0.2 |
| 28RLSE241240 | 0.03 | 12.5 | 0.6 | 1.8 | 0.09 | 0.018 | 0.05 | 5.23 | 2.5 | 1.1 | 59 | 0.3 | ||||
| 28RLSE241640 | 0.04 | 16.7 | 0.8 | 2.4 | 0.12 | 0.025 | 0.05 | 4.18 | 3.4 | 1.3 | 69 | 0.5 |
