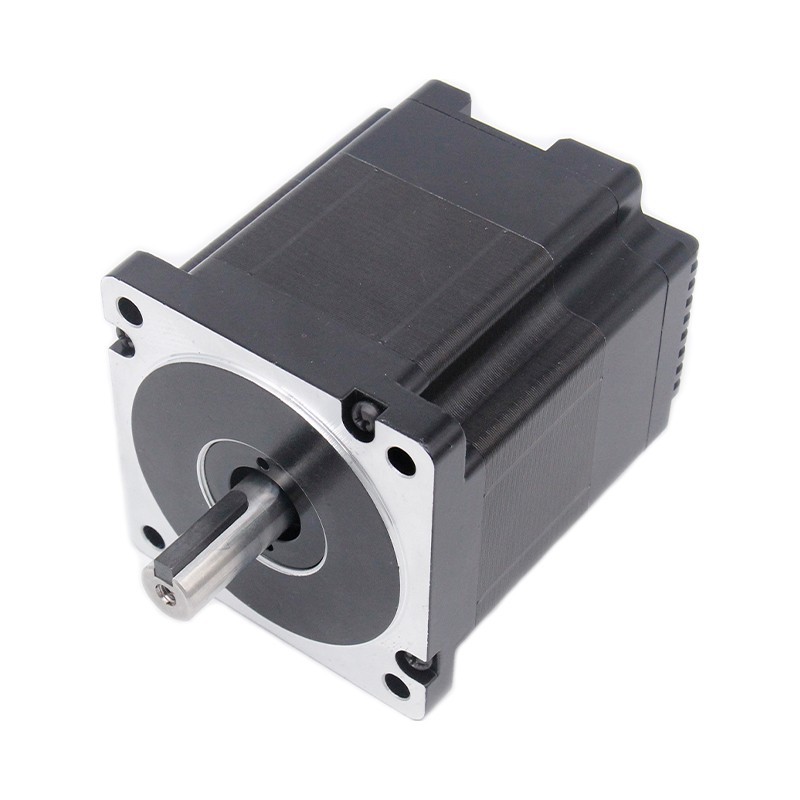

Product Description
The stepper all-in-one machine is a perfect combination of drive and stepper motor; it perfectly integrates stepper motor and drive technology, which can not only save installation space, but also simplify wiring at the same time. Save design costs and production costs for you.
Compact integration;
Servo algorithm closed-loop control;
Customizable drive function;
Customizable motor parameters;
Customizable screw.
Electrical Specifications
| Series Model | Input Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.cm) | Motor Length L (mm) | Rotor Inertia (g.cm²) | Step Angle (°) |
| 34HSM8402-TBXXX | 24~48V | 7.0 | 0.2 | 1.8 | 4.2 | 85 | 1050 | 1.8 |
| 34HSM4402-TBXXX | 24~48V | 7.0 | 0.35 | 3.2 | 8.2 | 121 | 1800 |
