Motor Model	Number of Phase	Number of Poles	Rated Voltage (VDC)	Rated Speed (Rpm)	Rated Torque (N.m)	Rated Power (W)	Rated Current (A)	Peak Current (A)	Peak Torque (N.M)	Rotor Inertia (kg.cm²)	Torque Constant (N.m/A)	Torque Constant (V/krpm)	Line-Line Resistance (Ω)	Line-Line Inductance (mH)	Length (mm)	Weight (kg)
34WSTE482230	3	8	48	3000	0.7	220	5.8	17.4	2.1	1.6	0.12	11	0.6	0.5	66.5	1.8
34WSTE483130	3	8	48	3000	1	310	8.6	25.8	3	1.9	0.11	10.5	0.5	0.4	80.5	2.2

*Note: We can manufacture 24 volt DC servo motors according to customer's requirements.

Wiring Diagram

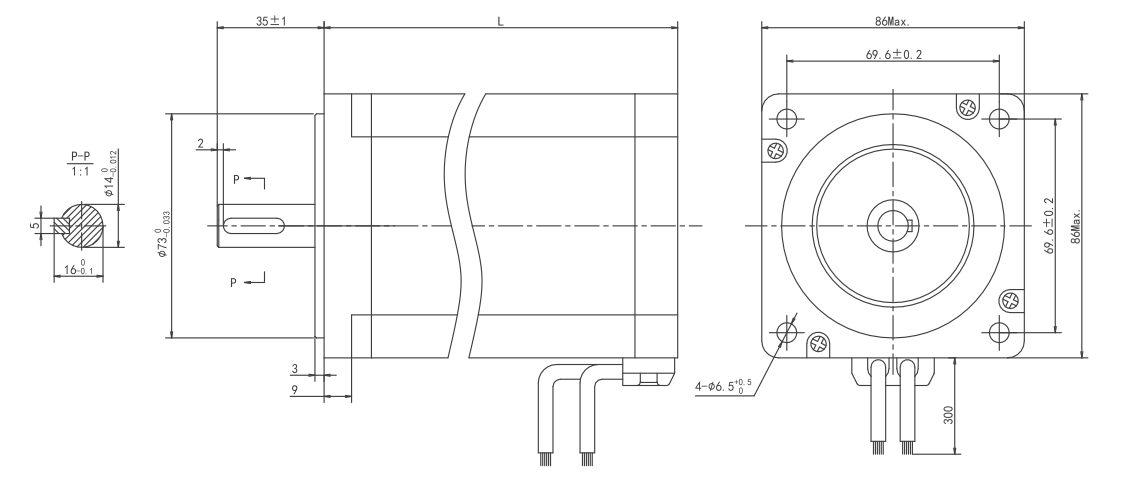

Dimensions(Unit: mm)

Targeted Functional Positioning for Precision Drive Applications

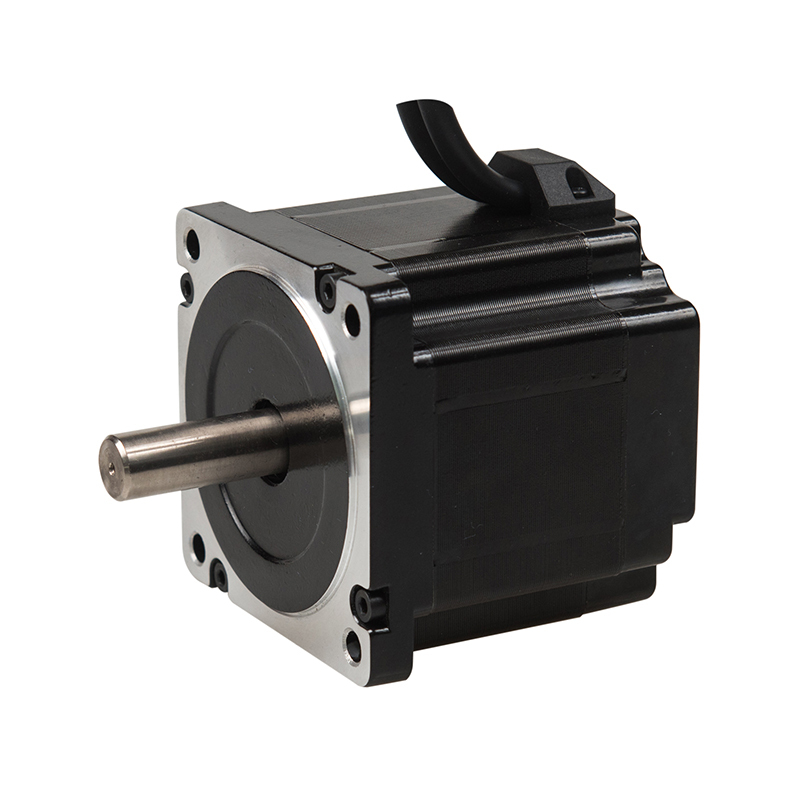

The 34WSTE Series DC brushless motor is engineered for technical users and system integrators who require consistent torque and speed under a 48V DC supply. Ideal for factory automation and servo drive systems, it addresses needs for stable, maintenance-reduced operation within machines leveraging bdlc planetary gearmotor components. The motor’s compatibility with multiple configurations and custom voltage options supports diverse mechanical designs, making it suitable for OEM applications that prioritize system reliability and operational uptime.

Comprehensive Technical Specifications Ensuring Performance Consistency
Featuring rated outputs from 188W to 250W and speeds up to 3000 RPM, this brushless motor attains torque levels between 0.6 and 0.8 N.m, with peak torque up to 2.1 N.m. Its brushless construction facilitates lower electromagnetic interference and longer life cycles compared to brushed alternatives. Key technical parameters such as line-line resistance of 0.5–0.6 Ω and torque constant between 0.11–0.12 N.m/A ensure predictable control response. The compact design and standardized length choices facilitate integration alongside bdlc planetary gearmotor units where space constraints exist.

Application Spectrum and Integration Value Across Industries
This brushless motor series is well-suited for deployment in industrial automation, robotics, and servo drives where precise speed control and torque stability are critical. The motor’s compliance with CE, UL, and RoHS certifications, backed by in-house ISO 9001:2015 manufacturing, ensures global quality standards. Its adaptability supports engineers and OEM manufacturers in sectors requiring seamless integration with bdlc planetary gearmotor assemblies, promoting enhanced system efficiency and prolonging equipment lifecycle in demanding operational environments.

Use Scenarios

Automation Equipment Speed Control in Manufacturing Systems
Within automated production lines, stable torque and speed control from the 34WSTE motor enhance the precision of conveyor systems and robotic arms. It functions as a core component in brushless drive systems requiring durable, low-maintenance operation, efficiently integrated with bdlc planetary gearmotor units for stepped speed reduction and amplified torque output. The motor’s compatibility with standard 48V DC supplies allows easy insertion into existing electrical infrastructures while maintaining compliance with global regulatory standards, thus optimizing workflow continuity and equipment availability.

Industrial Machinery Drive Replacement and Retrofit Applications
In sectors where older brushed motors are being phased out due to maintenance costs and performance limitations, the 34WSTE Series DC brushless motor serves as an effective replacement. Its torque stability and controlled speed profiles ensure minimized system wear while providing compatibility with existing couplings and gearboxes, including bdlc planetary gearmotor systems. This replacement facilitates compliance with modern efficiency and safety standards, supporting initiatives for equipment modernization while preserving mechanical reliability and system uptime within industrial drivetrain architectures.

FAQ

What customization options are available for the 34WSTE Series DC Brushless Motor?
The 34WSTE Series supports custom configurations, including length adjustments from 99mm to 109mm and power variants ranging from 188W to 250W. Custom 24V DC servo motors are offered on request to meet specific application needs, making it ideal for various BDLC planetary gearmotor uses.

How does the brushless design of the 34WSTE Series improve maintenance requirements?
As a brushless motor, the 34WSTE Series eliminates brushes that wear out over time, resulting in lower maintenance demands and longer service life compared to brushed designs. This durability supports continuous operation in industrial BDLC planetary gearmotor applications needing reliability.

What certifications does the 34WSTE Series motor comply with?
This motor is manufactured in an ISO 9001:2015-certified facility and complies with CE, UL, and RoHS standards. These certifications ensure that it meets strict international safety, quality, and environmental requirements essential for global industrial buyers.

What are the typical delivery timelines and support options for international orders?
Delivery times vary based on customization and order size, with local warehouses enabling faster fulfillment in Europe. Caida provides multilingual technical support to assist global clients during installation and commissioning of the 34WSTE Series brushless motor systems.
