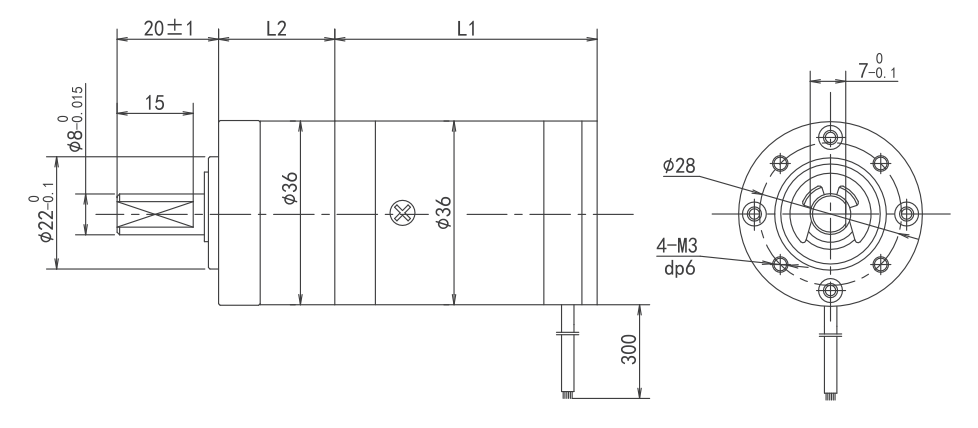

Basic Size: 36mm
Length (mm): 59mm-79mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.04-0.08N.m
Rated Power (W): 16-32W
Rated Speed (Rpm): 4000Rpm
Electrical Specifications
| Motor Model | Rated Voltage(VDC) | Rated Speed(Rpm) | Rated Torque(N.m) | Rated Power(W) | Length(mm) |
| 36RLSE241640 | 24 | 4000 | 0.04 | 16.7 | 59 |
| 36RLSE242540 | 0.06 | 25 | 69 | ||
| 36RLSE243340 | 0.08 | 33.5 | 79 |
| Reducer Series | Transmission efficiency | Max radial load | Max axial load | Transmission torque | Reduction Ratio | Length(mm) |
| 1 | 90% | 40N | 20N | 0.3N.m | 3.7,5.18,6.75 | 25.6 |
| 2 | 81% | 40N | 20N | 1.2N.m | 14,19,25,27,35,45 | 34 |
| 3 | 73% | 40N | 20N | 2.5N.m | 51,71,93,100,139,181,236,307 | 42 |
