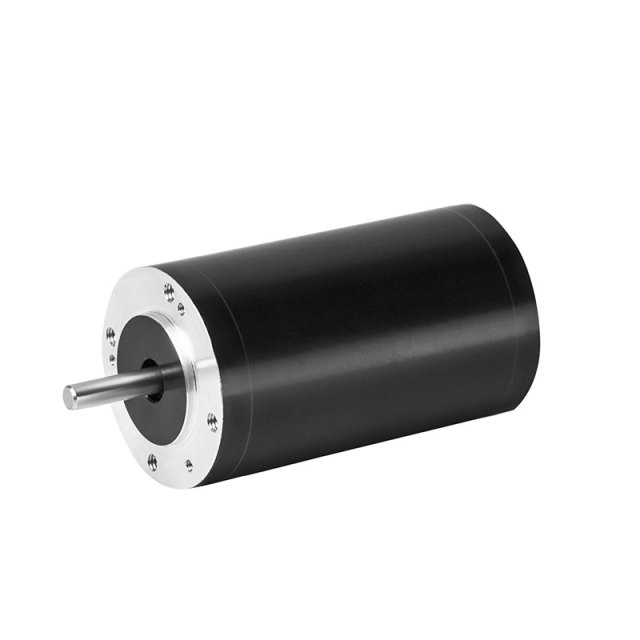

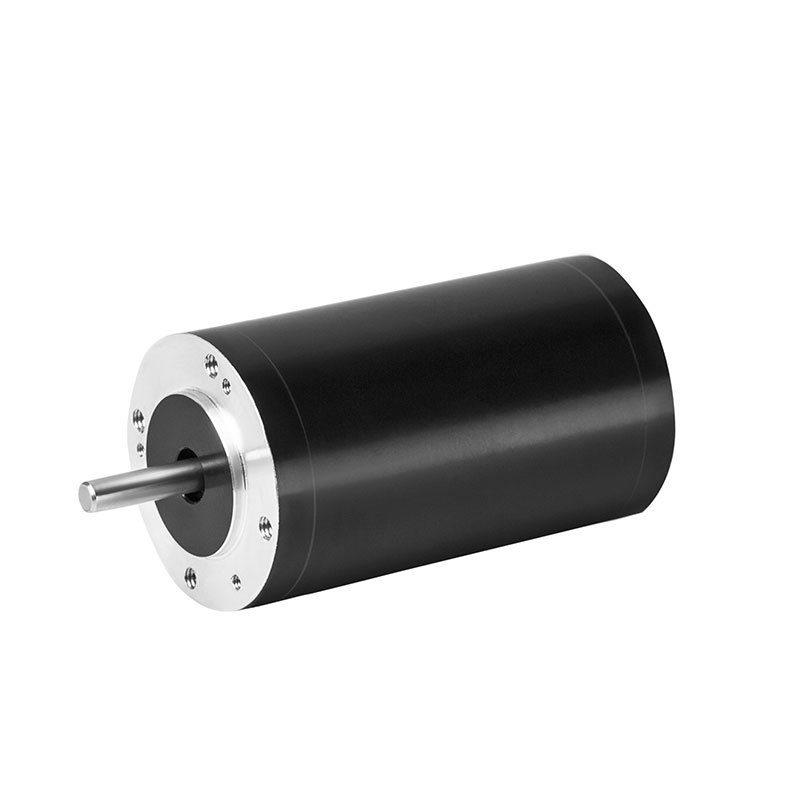

Basic Size: 42mm

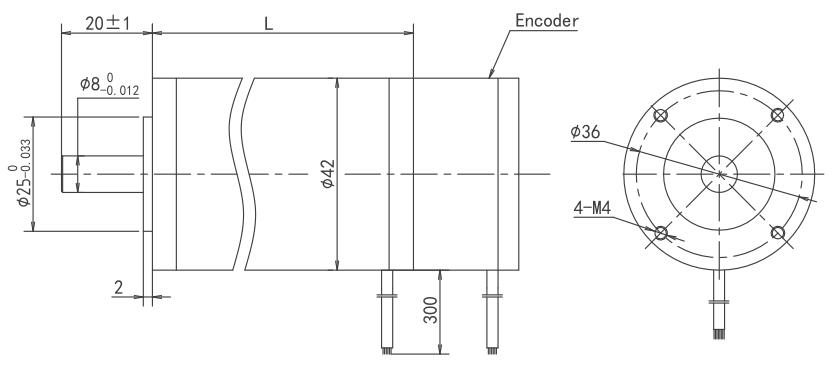

Length (mm): 52mm-72mm
Rated Voltage (VDC/VAC): 24VDC 48VDC
Rated Torque (N.m): 0.16-0.32N.m
Rated Power (W): 50-100W
Rated Speed (Rpm): 3000Rpm
| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) |
Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Peak Current (A) | Peak Torque (N.M) | Rotor Inertia (kg.cm2) | Torque Constant (N.m/A) | Torque Constant (V/krpm) | Line-Line Resistance (Ω) | Line-Line Inductance (mH) | Length (mm) | Weight (kg) | Encoder Resolution (P/R) |
| 42SYTT 485030 |
3 | 10 | 48 | 3000 | 0.16 | 50 | 1.6 | 4.8 | 0.48 | 0.025 | 0.12 | 7.1 | 3.5 | 3.0 | 52 | 0.7 | 1000, 1024, 2500/17bit |
| 42SYTT 481030 |
3 | 10 | 48 | 3000 | 0.32 | 100 | 3.2 | 9.6 | 0.96 | 0.035 | 0.12 | 7.1 | 2.1 | 2.0 | 72 | 0.93 |
*Note: We can manufacture products according to customer's requirements.
