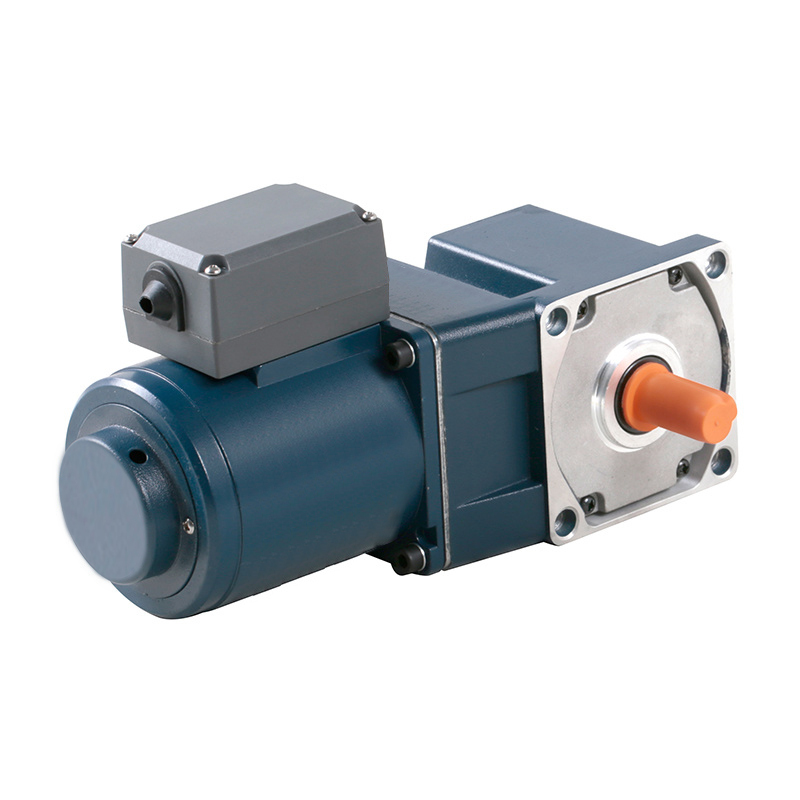

Pinion Shaft |
Output power (W) |
Rated Voltage (V)
|
Frequency (Hz)
|
Speed Control Range (r/min) |
Allowance Torque 1200r/min (mN.m) |
Allowance Torque 90r/min (mN.m) |
Starting Torque (mNm)
|
Rated Current (A)
|
Capacitor (μF)
|
|
4IK25RGN-A |
25 |
1ph100 | 50|60 |
90~1400 | 90~1700 |
190 | 47 | 88 | 0.50|0.55 | 8.0 |
|
4IK25RGN-E |
25 |
1ph 110 | 1ph 120 | 60 |
90~1700 |
190 | 50 | 105 | 0.45|0.50 | 7.0 |
|
4IK25RGN-C |
25 |
1ph 220 | 1ph 230 | 50 |
90~1400 |
190 | 47 | 88 | 0.25|0.23 | 1.8 |
|
4IK25RGN-H |
25 |
1ph 220 | 1ph 230 | 60 |
90~1700 |
190 | 45 | 88 | 0.23 | 1.8 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.31 |
| 5 | 300 | 0.52 |
| 7.5 | 200 | 0.99 |
| 9 | 166 | 1.04 |
| 10 | 150 | 1.16 |
| 12.5 | 120 | 1.64 |
| 15 | 100 | 1.97 |
| 18 | 83 | 2.09 |
| 20 | 75 | 2.32 |
| 25 | 60 | 3.29 |
| 30 | 50 | 3.95 |
| 36 | 41 | 4.73 |
| 50 | 30 | 6.58 |
| 60 | 25 | 7.10 |
| 75 | 20 | 8.00 |
| 90 | 16 | 8.00 |
| 100 | 15 | 8.00 |
| 120 | 12.5 | 8.00 |
| 150 | 10 | 8.00 |
| 180 | 8.3 | 8.00 |

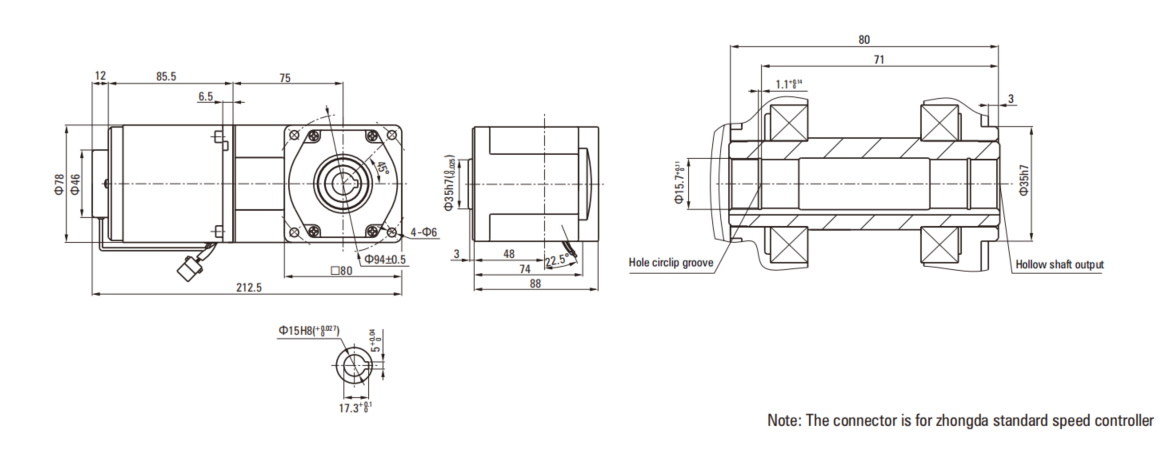

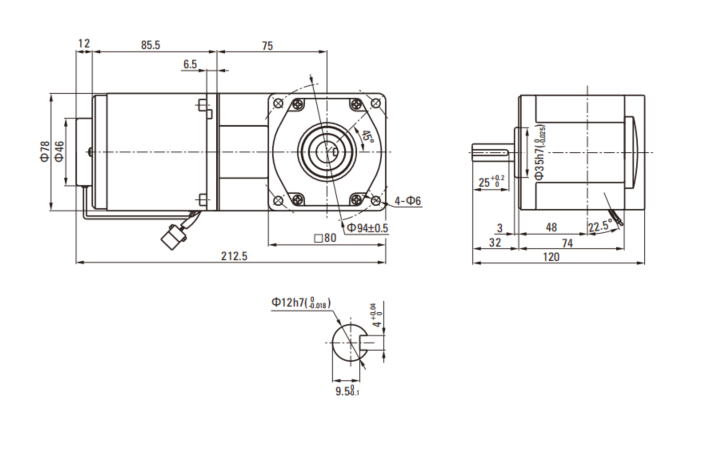

Motor Size Chart
