Pinion Shaft |
Round Shaft |
Rated Power (W)
|
Rated Voltage (V)
|
Frequency (Hz)
|
Rated Current(A)
|
Starting Torque (mNm)
|
Rated Torque (mNm)
|
Rated Speed (min-1)
|
Capacitor (μF)
|
|
4RK25GN-A |
4RK25GN-AT |
25 | 1ph100 | 50|60 | 160|140 | 200|165 | 200|165 | 1250|1550 | 10 |
|
4RK25GN-E |
4RK25GN-ET |
25 | 1ph 110 |1ph 120 | 60 | 140 | 165 | 165 | 1550 | 8.0 |
|
4RK25GN-C |
4RK25GN-CT |
25 | 1ph 220 |1ph 230 | 50 | 140|160 | 200 | 200 | 1250 | 2.2 |
|
4RK25GN-H |
4RK25GN-HT |
25 | 1ph 220 |1ph 230 | 60 | 140 | 165 | 165 | 1550 | 2.2 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.31 |
| 5 | 300 | 0.52 |
| 7.5 | 200 | 0.99 |
| 9 | 166 | 1.04 |
| 10 | 150 | 1.16 |
| 12.5 | 120 | 1.64 |
| 15 | 100 | 1.97 |
| 18 | 83 | 2.09 |
| 20 | 75 | 2.32 |
| 25 | 60 | 3.29 |
| 30 | 50 | 3.95 |
| 36 | 42 | 4.73 |
| 50 | 30 | 6.58 |
| 60 | 25 | 7.10 |
| 75 | 20 | 8.00 |
| 90 | 16 | 8.00 |
| 100 | 15 | 8.00 |
| 120 | 12 | 8.00 |
| 150 | 10 | 8.00 |
| 180 | 8 | 8.00 |

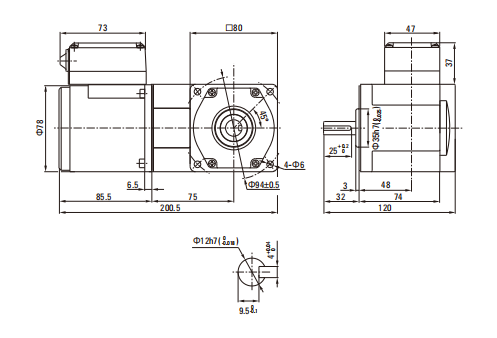

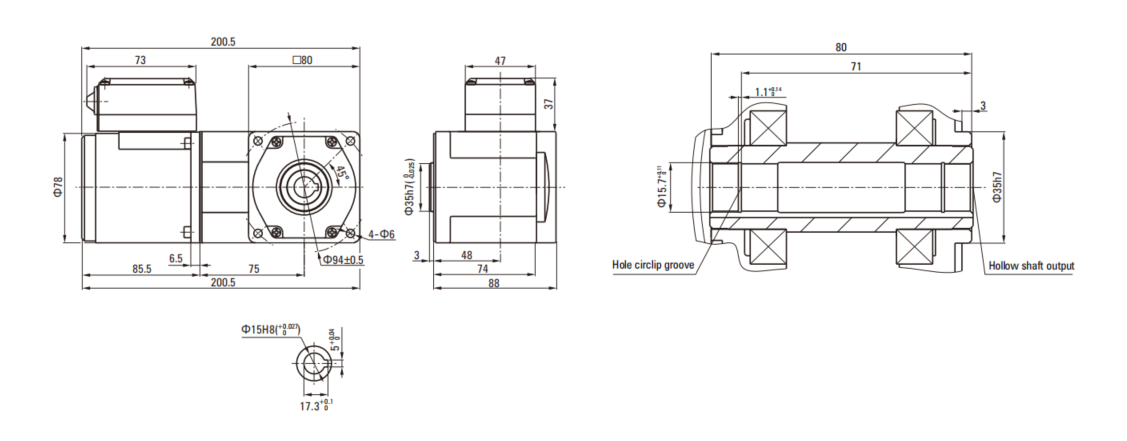

Motor Size Chart
