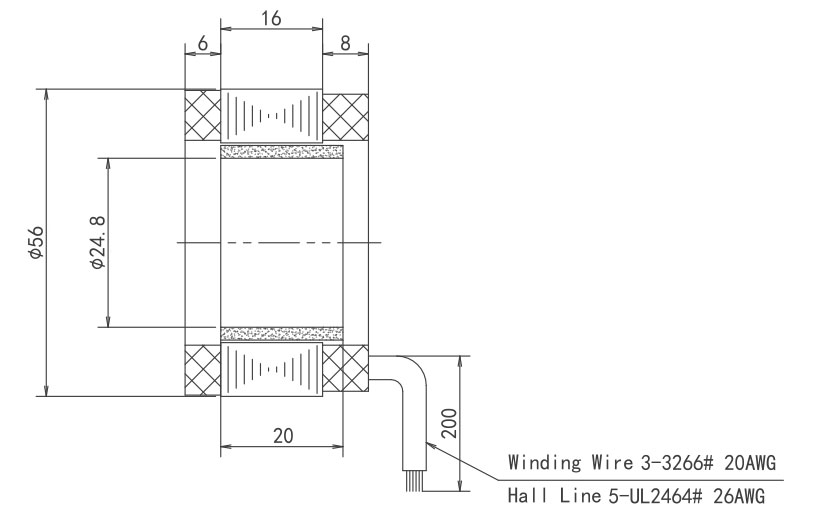

Basic Size: 56mm
Length (mm): 16mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 0.3N.m
Rated Power (W): 95W
Rated Speed (Rpm): 3000Rpm
| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) |
Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Peak Current (A) | Peak Torque (N.M) | Rotor Inertia (kg.cm2) | Torque Constant (N.m/A) | Torque Constant (V/krpm) | Line-Line Resistance (Ω) | Line-Line Inductance (mH) | Length (mm) | Weight (kg) |
|

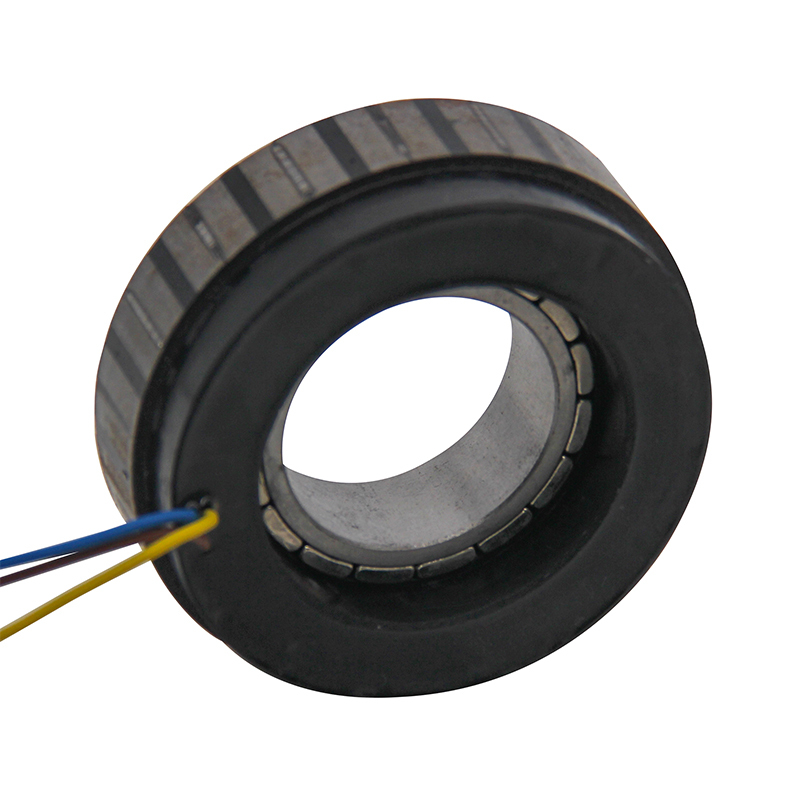

56SSEH 489030 |
3 | 16 | 48 | 3000 | 0.3 | 95 | 2.9 | 8.7 | 0.9 | 0.15 | 0.1 | 9.5 | 1.5 | 2.1 | 16 | 0.5 |
*Note: We can servo motor manufacturer products according to customer's requirements.
