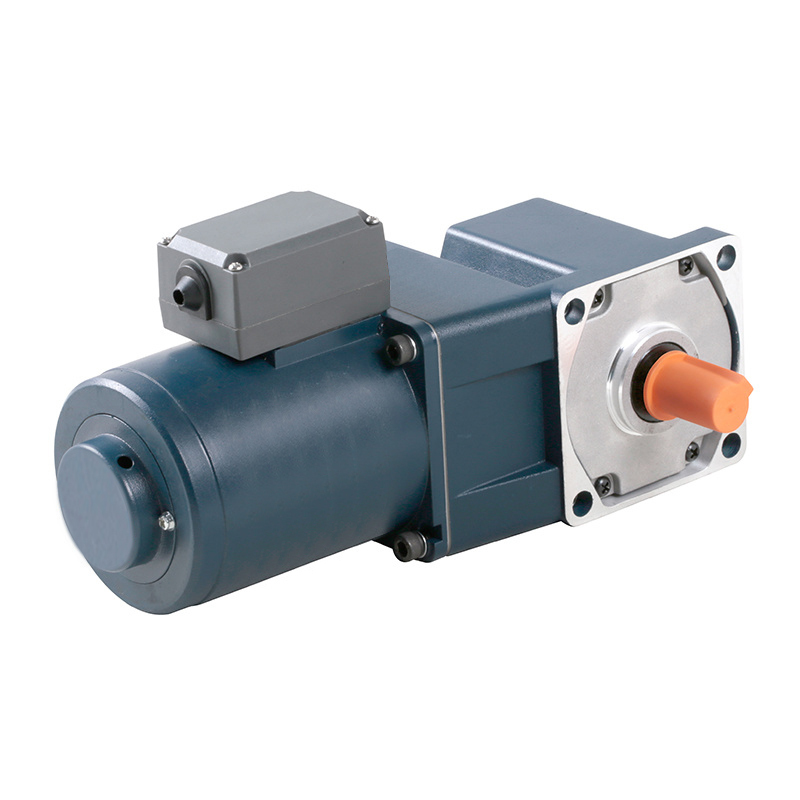

Pinion Shaft |
Output power (W) |
Rated Voltage (V)
|
Frequency (Hz)
|
Speed Control Range (r/min) |
Allowance Torque 1200r/min (mN.m) |
Allowance Torque 90r/min (mN.m) |
Starting Torque (mNm)
|
Rated Current (A)
|
Capacitor (μF)
|
|
5IK40RGU-A |
40 | 1ph100 | 50|60 |
90~1400| 90~1700 |
260 | 70 | 180 | 0.65|0.70 | 12 |
|
5IK40RGU-E |
40 | 1ph 110 | 1ph 120 | 60 |
90~1700 |
260 | 65 | 180 | 0.55|0.60 | 8.0 |
|
5IK40RGU-C |
40 | 1ph 220 | 1ph 230 | 50 |
90~1400 |
300 | 75 | 160 | 0.35|0.40 | 2.5 |
|
5IK40RGU-H |
40 | 1ph 220 | 1ph 230 | 60 |
90~1700 |
230 | 70 | 145 | 0.35|0.40 | 2.5 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.50 |
| 3.6 | 417 | 0.60 |
| 5 | 300 | 0.84 |
| 6 | 250 | 1.00 |
| 7.5 | 200 | 1.58 |
| 9 | 166 | 1.67 |
| 10 | 150 | 1.86 |
| 12.5 | 120 | 2.63 |
| 15 | 100 | 3.16 |
| 18 | 83 | 3.34 |
| 20 | 75 | 3.71 |
| 25 | 60 | 5.26 |
| 30 | 50 | 6.31 |
| 36 | 41 | 6.80 |
| 50 | 30 | 9.50 |
| 60 | 25 | 11.4 |
| 75 | 20 | 14.2 |
| 90 | 16 | 17.0 |
| 100 | 15 | 18.9 |
| 120 | 12.5 | 20.0 |
| 150 | 10 | 20.0 |
| 180 | 8.3 | 20.0 |

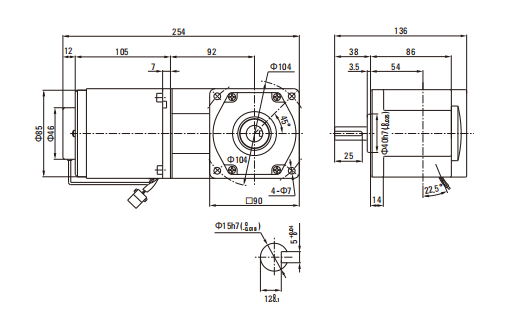

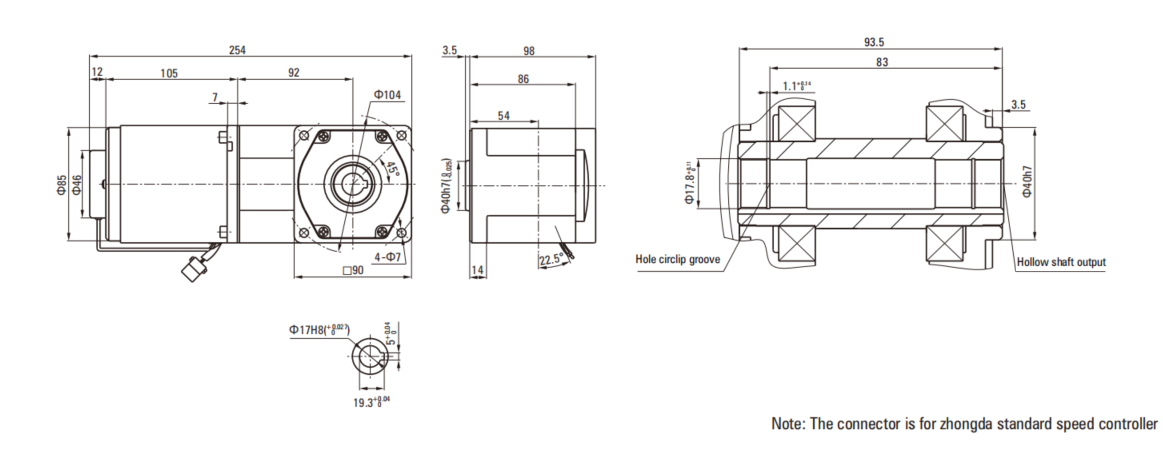

Motor Size Chart
