Pinion Shaft |
Round Shaft |
Rated Power (W)
|
Rated Voltage (V)
|
Frequency (Hz)
|
Rated Current(A)
|
Starting Torque (mNm)
|
Rated Torque (mNm)
|
Rated Speed (min-1)
|
Capacitor (μF)
|
|
5RK40GU-A |
5RK40GU-AT |
40 | 1ph100 | 50|60 | 0.78|1.05 | 300 | 315|260 | 1250|1550 | 15 |
|
5RK40GU-E |
5RK40GU-ET |
40 | 1ph 110 | 1ph 120 | 60 | 0.79|0.80 | 260 | 260 | 1550 | 12 |
|
5RK40GU-C |
5RK40GU-CT |
40 | 1ph 220 | 1ph 230 | 50 | 0.45 | 270 | 315 | 1250 | 3.0 |
|
5RK40GU-H |
5RK40GU-HT |
40 | 1ph 220 | 1ph 230 | 60 | 0.45 | 270 | 260 | 1550 | 3.0 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.50 |
| 3.6 | 417 | 0.60 |
| 5 | 300 | 0.84 |
| 6 | 250 | 1.00 |
| 7.5 | 200 | 1.58 |
| 9 | 166 | 1.67 |
| 10 | 150 | 1.86 |
| 12.5 | 120 | 2.63 |
| 15 | 100 | 3.16 |
| 18 | 83 | 3.34 |
| 20 | 75 | 3.71 |
| 25 | 60 | 5.26 |
| 30 | 50 | 6.31 |
| 36 | 41 | 6.80 |
| 50 | 30 | 9.50 |
| 60 | 25 | 11.4 |
| 75 | 20 | 14.2 |
| 90 | 16 | 17.0 |
| 100 | 15 | 18.9 |
| 120 | 12.5 | 20.0 |
| 150 | 10 | 20.0 |
| 180 | 8.3 | 20.0 |

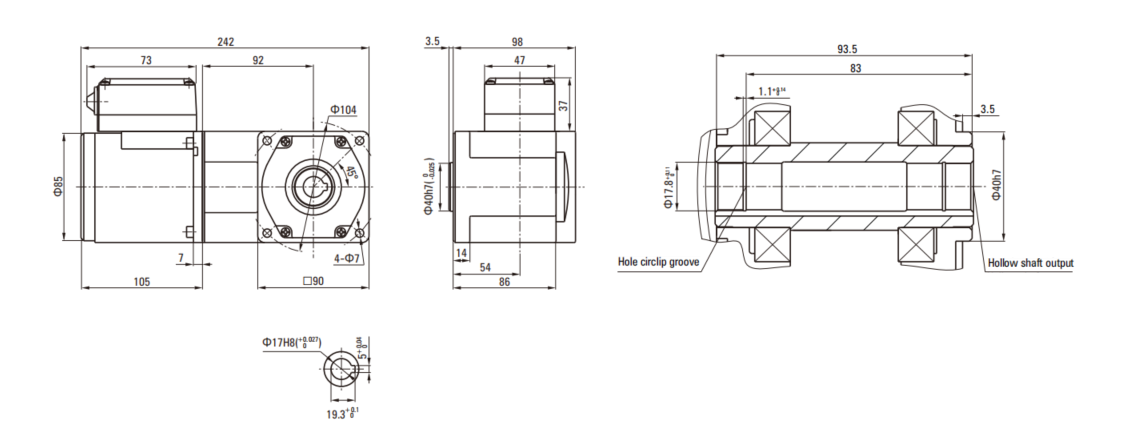

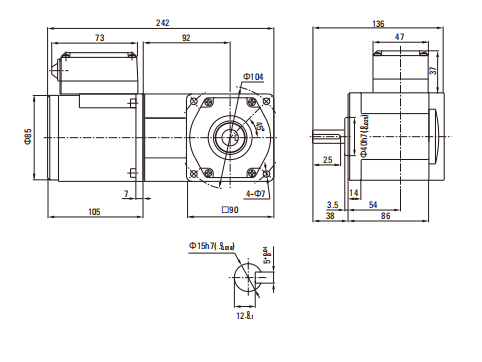

Motor Size Chart
