Pinion Shaft |
Round Shaft |
Rated Power (W)
|
Rated Voltage (V)
|
Frequency (Hz)
|
Rated Current(A)
|
Starting Torque (mNm)
|
Rated Torque (mNm)
|
Rated Speed (min-1)
|
Capacitor (μF)
|
|
5RK60GU-AF |
5RK60GU-AFT |
60 | 1ph100 | 50|60 | 1.26|1.70 | 470 | 470|380 | 1250|1550 | 25 |
|
5RK60GU-EF |
5RK60GU-EFT |
60 | 1ph 110 |1ph 120 | 60 | 1.05 | 330|380 | 380 | 1550 | 15 |
|
5RK60GU-CF |
5RK60GU-CFT |
60 | 1ph 220 |1ph 230 | 50 | 0.55|0.60 | 420|460 | 470 | 1250 | 4.5 |
|
5RK60GU-HF |
5RK60GU-HFT |
60 | 1ph 220 |1ph 230 | 60 | 0.55|0.60 | 420|460 | 380 | 1550 | 4.5 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.75 |
| 3.6 | 417 | 0.90 |
| 5 | 300 | 1.25 |
| 6 | 250 | 1.50 |
| 7.5 | 200 | 2.37 |
| 9 | 166 | 2.76 |
| 10 | 150 | 3.06 |
| 12.5 | 120 | 3.95 |
| 15 | 100 | 4.73 |
| 18 | 83 | 5.51 |
| 20 | 75 | 6.13 |
| 25 | 60 | 7.89 |
| 30 | 50 | 9.47 |
| 36 | 41 | 10.2 |
| 50 | 30 | 14.2 |
| 60 | 25 | 17.0 |
| 75 | 20 | 20.0 |
| 90 | 16 | 20.0 |
| 100 | 15 | 20.0 |
| 120 | 12.5 | 20.0 |
| 150 | 10 | 20.0 |
| 180 | 8.3 | 20.0 |

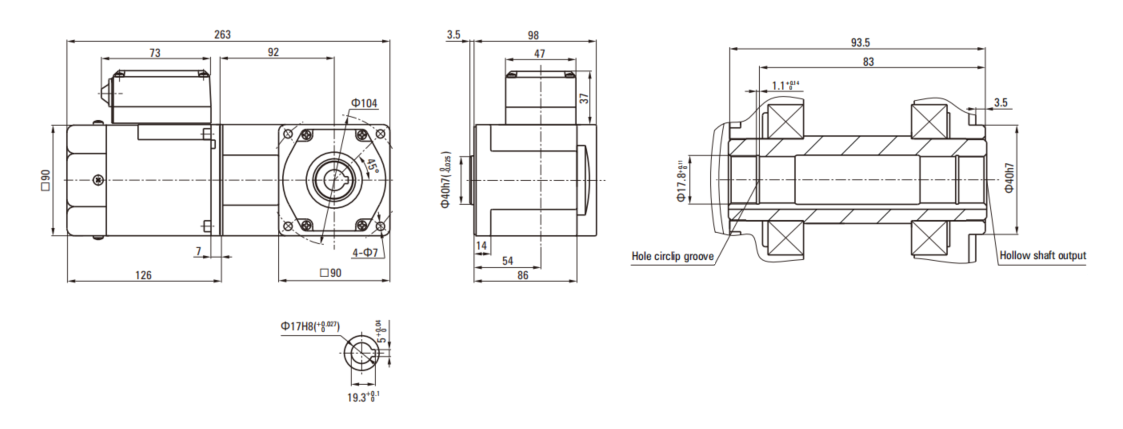

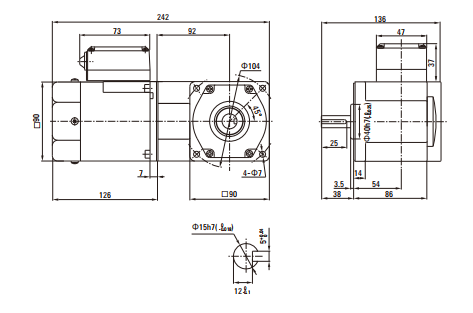

Motor Size Chart
