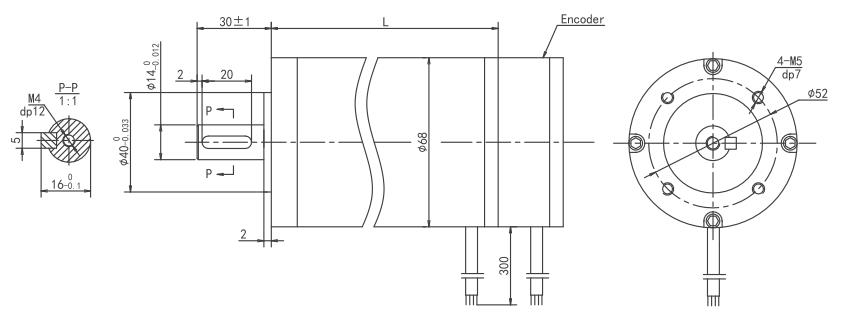

Basic Size: 68mm
Length (mm): 72mm-100mm
Rated Voltage (VDC/VAC): 48VDC 220VAC
Rated Torque (N.m): 0.64-1.27N.m
Rated Power (W): 200-400W
Rated Speed (Rpm): 3000Rpm
| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) |
Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Peak Current (A) | Peak Torque (N.M) | Rotor Inertia (kg.cm2) | Torque Constant (N.m/A) | Torque Constant (V/krpm) | Line-Line Resistance (Ω) | Line-Line Inductance (mH) | Length (mm) | Weight (kg) | Encoder Resolution (P/R) |
| 68SSTE 482030 |
3 | 8 | 48 | 3000 | 0.64 | 200 | 5.5 | 16.5 | 1.92 | 0.25 | 0.11 | 10.5 | 0.2 | 0.4 | 72 | 0.6 | 1000,1024,2500/17bit,23bit |
| 68SSTE 83030 |
3 | 8 | 48 | 3000 | 0.96 | 300 | 8.3 | 24.9 | 2.88 | 0.35 | 0.11 | 10.5 | 0.3 | 0.5 | 86 | 1 | |
| 68SSTE 484030 |
3 | 8 | 220 | 3000 | 1.27 | 400 | 11 | 33 | 3.81 | 0.45 | 0.11 | 10.5 | 0.4 | 0.6 | 100 | 1.4 | |
| 68SSTE 2202030 |
3 | 8 | 220 | 3000 | 0.64 | 200 | 1.45 | 4.35 | 1.92 | 0.25 | 0.44 | 29 | 10 | 11 | 72 | 0.6 | |
| 68SSTE 2204030 |
3 | 8 | 220 | 3000 | 1.27 | 400 | 2.9 | 8.7 | 3.81 | 0.45 | 0.44 | 29 | 2.2 | 5.5 | 100 | 1.4 |
*Note: We can manufacture products according to customer's requirements.
