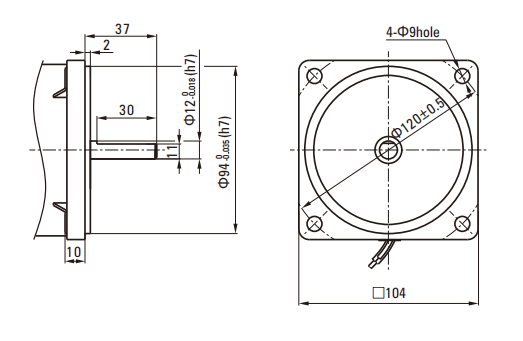

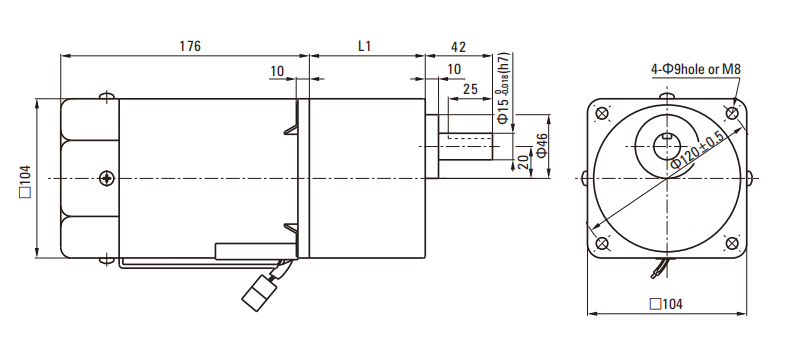

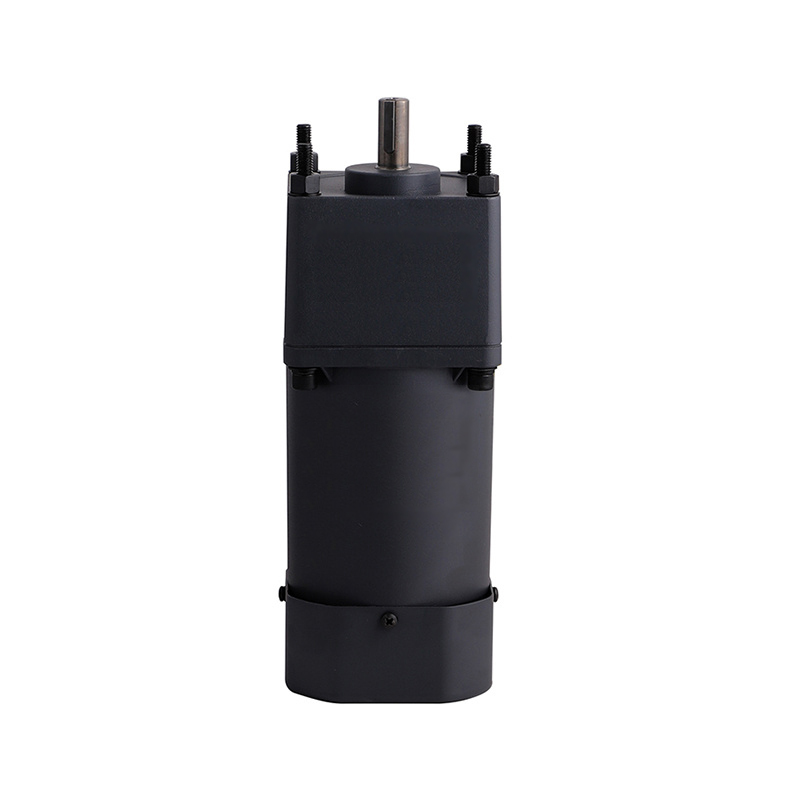

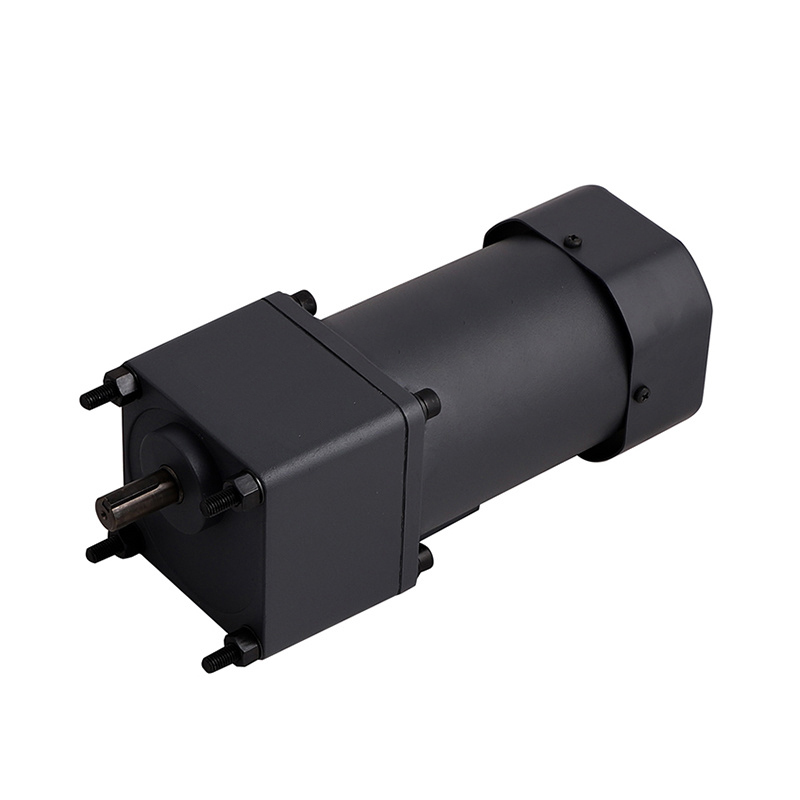

Pinion Shaft |
Output power (W) |
Rated Voltage (V)
|
Frequency (Hz)
|
Speed Control Range (r/min) |
Allowance Torque 1200r/min(mN.m) |
Allowance Torque 90r/min(mN.m) |
Starting Torque (mNm)
|
Rated Current (A)
|
Capacitor (μF)
|
|---|---|---|---|---|---|---|---|---|---|
| S104140-110 | 140 | 1ph100 | 50|60 |
90~135|90~1650 |
830 | 420 | 620 | 2.70|3.00 | 35.0 |
|
S104140-220 |
140 | 1ph 220 | 1ph 230 | 50 |
90~1350 |
830 | 420 | 620 | 1.05|1.15 | 10.0 |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 2.60 |
| 3.6 | 417 | 3.10 |
| 5 | 300 | 4.40 |
| 6 | 250 | 5.20 |
| 7.5 | 200 | 6.60 |
| 9 | 166 | 7.90 |
| 10 | 150 | 7.80 |
| 12.5 | 120 | 9.90 |
| 15 | 100 | 11.8 |
| 18 | 83 | 14.2 |
| 20 | 75 | 14.0 |
| 25 | 60 | 17.8 |
| 30 | 50 | 21.4 |
| 36 | 41 | 25.7 |
| 40 | 37 | 28.0 |
| 50 | 30 | 35.6 |
| 60 | 25 | 40.0 |
| 75 | 20 | 40.0 |
| 90 | 16 | 40.0 |
| 100 | 15 | 40.0 |
| 120 | 12.5 | 40.0 |
| 150 | 10 | 40.0 |
| 180 | 8.3 | 40.0 |
| 200 | 7.5 | 40.0 |
