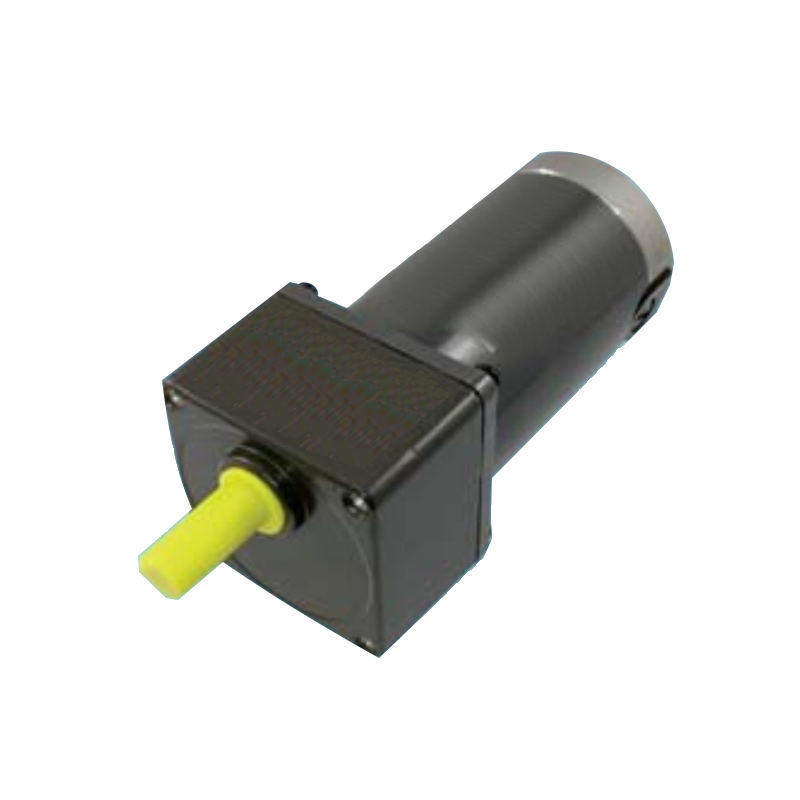

Note:
Weight: 1200～1400g/pcs(approx)
Packing details: CTN size: 48X25XH21cm 10pcs/CTN G.W.22kgs

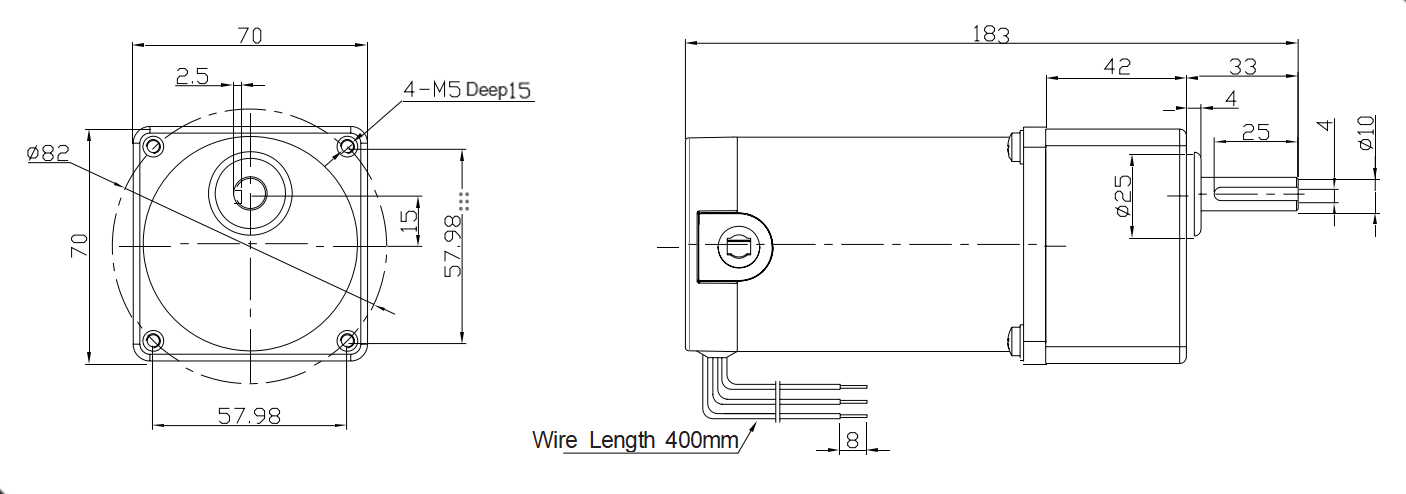

MOTOR APPEARANCE SIZE
Gearbox data
|
Number of stages |
2 Stages reduction |
3 Stages reduction |
4 Stages reduction |
|
Reduction ratio |
6 10 12 15 20 |
26 30 38 45 55 60 75 |
90 120 160 160 180 200 300 |
|
Gearbox length“ L ”mm |
42 |
||
|
Max.Running torque |
35kgf.cm |
80kgf.cm |
120kgf.cm |
|
Max.Gearing efficiency |
80% |
75% |
70% |
Motor data
|
Motor Model |
Rated Volt.V |
No load |
Load torque |
Stall torque |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
A |
r/min |
A |
r/min |
kgf.cm |
W |
kgf.cm |
A |
||
|
70DM2512GN-24R |
12 |
≤0 .8 |
2400 |
≤3 .6 |
2100 |
1.0 |
25 |
10 |
≤26 |
|
70DM3012GN-32R |
12 |
≤1 .2 |
3200 |
≤4 .5 |
2800 |
1.3 |
30 |
14 |
≤32 |
|
70DM2524GN-24R |
24 |
≤0 .4 |
2400 |
≤1 .8 |
2100 |
1.0 |
25 |
10 |
≤13 |
|
70DM3024GN-32R |
24 |
≤0 .6 |
3200 |
≤2 .2 |
2800 |
1.3 |
30 |
14 |
≤16 |
