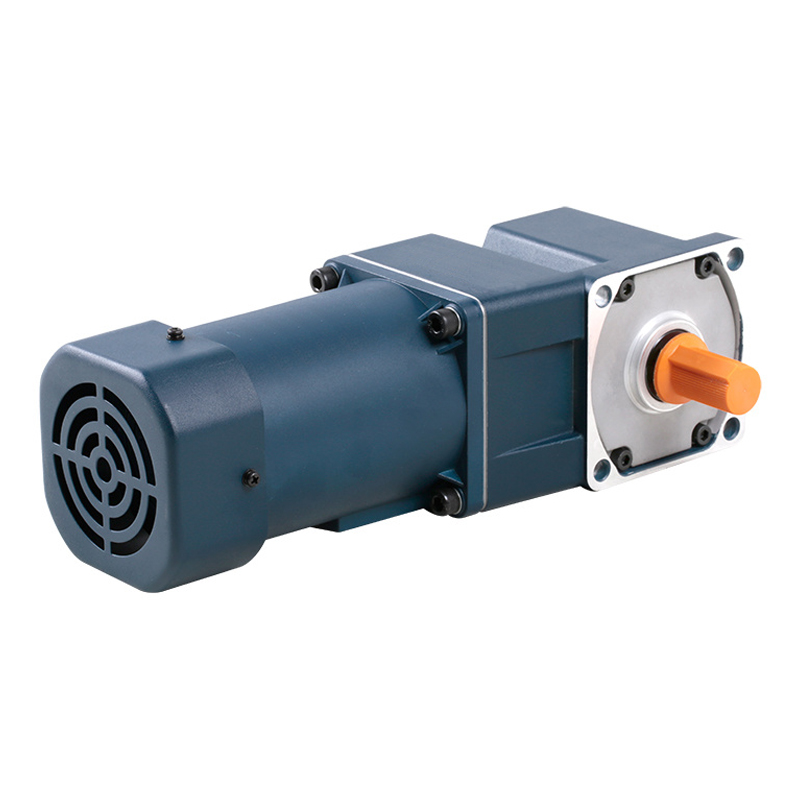

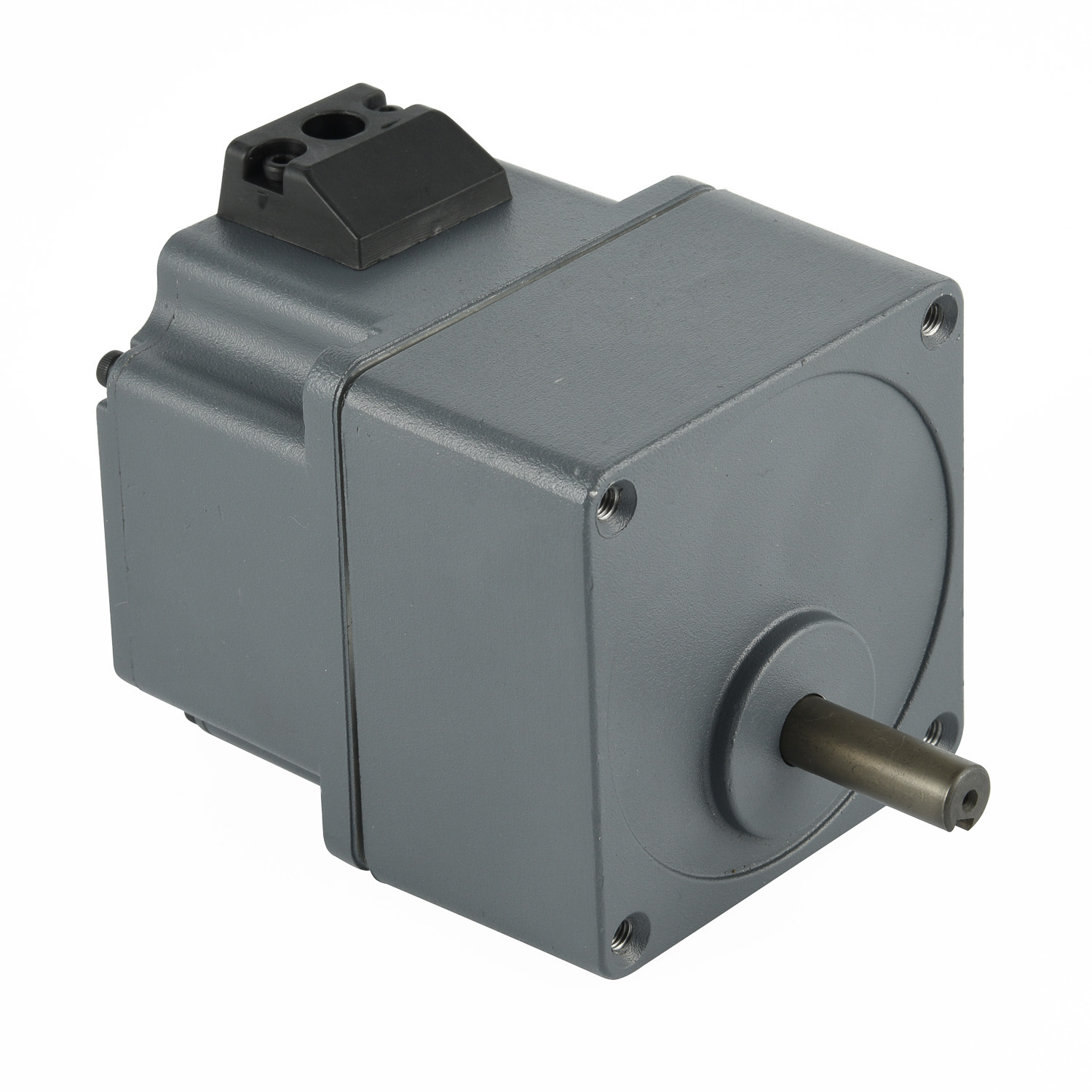

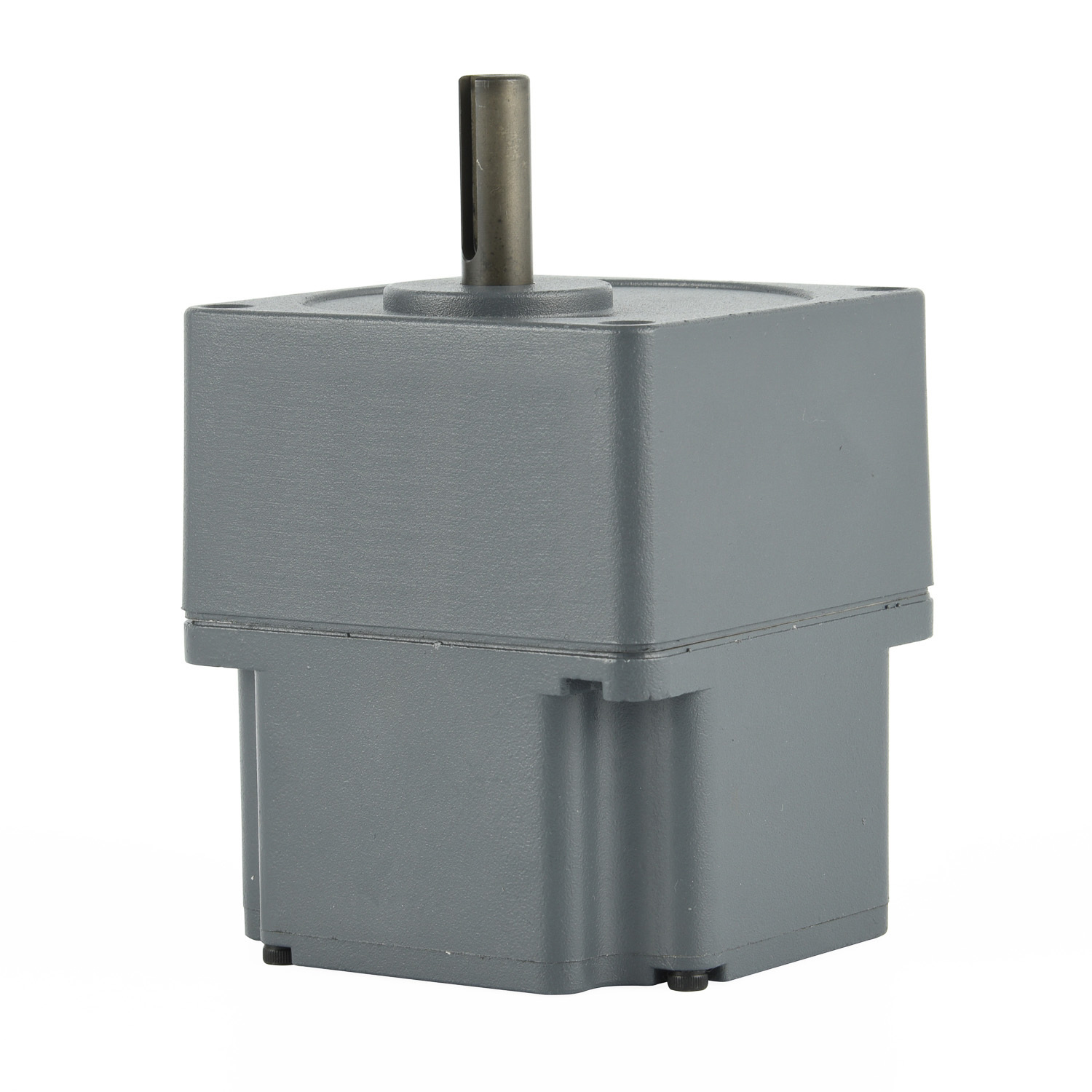

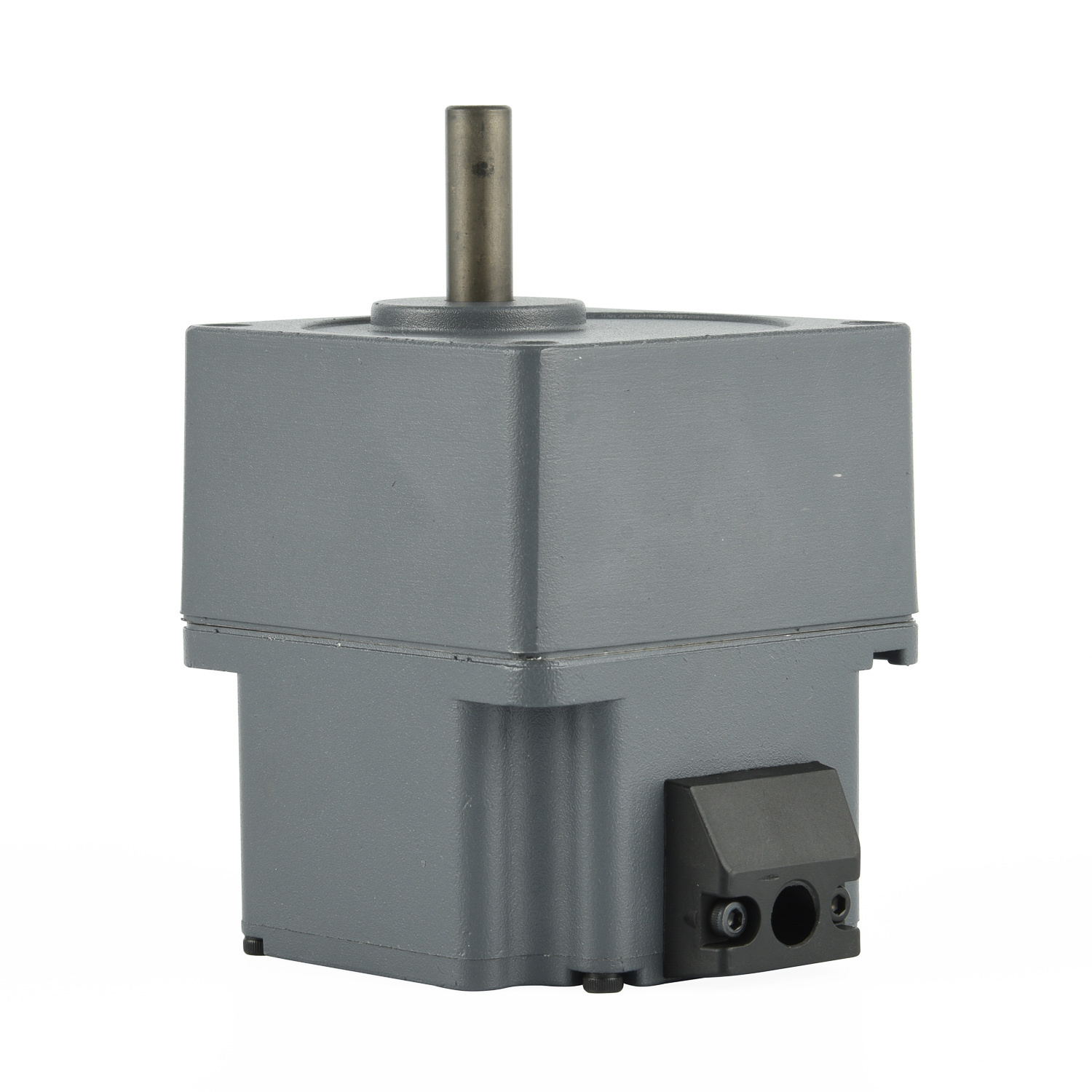

The 80 Series Small BLDC Motor offers precise speed control and quiet operation with power options of 40W and 60W. Designed by expert bldc motor manufacturers, it integrates seamlessly for reliable bldc motor control.
Compact Precision Drive Designed for Industrial Automation
The 80 Series small BLDC motor targets engineers and system integrators seeking compact, dependable solutions for high-precision motion tasks. As a product from renowned bldc motor manufacturers, it fulfills demands for a small bldc motor with stable speed regulation and minimal noise. This motor supports diverse voltage inputs including 110V, 220V AC, and 24VDC to accommodate varying industrial power environments. Its low rotor inertia and rated torque of 0.191 Nm facilitate rapid response, making it suitable for applications demanding tight torque and speed accuracy in automated assembly, robotics, and OEM machinery.
This bldc motor features a rated power of 60W and a speed control range from 200 to 3000 RPM with a ±1% stability margin, ensuring repeatable performance. Constructed with an anodized aluminum housing for enhanced thermal management, it maintains reliable operation below 60 dB noise level. The design includes compatibility with planetary or right-angle gear reducers with gear ratios from 3:1 to 200:1, enabling torque outputs up to 29 Nm. Such precise bldc motor control capabilities optimize energy efficiency and reduce maintenance in continuous industrial processes.
Widely applicable in precision automation, medical devices, and smart manufacturing systems, this small bldc motor excels in roles requiring quiet operation and robust torque delivery. Its integration flexibility supports tasks like pick-and-place automation, HVAC airflow control, and robotic arm actuation. The motor’s resistance to wear and ease of system compatibility provide measurable ROI improvements in production uptime and reduced noise compliance challenges. As a product engineered by leading bldc gearmotor manufacturers, it meets stringent operational standards across diverse industrial sectors.
The 80 Series Small BLDC Motor boasts a compact and robust mechanical structure tailored by expert bldc gearmotor manufacturers for efficient system integration. Its anodized aluminum casing promotes effective heat dissipation extending device longevity under continuous operation. Low rotor inertia combined with quality ball bearings reduces mechanical wear and facilitates fast acceleration, critical for automated cycles. Modular compatibility with planetary and right-angle gear reducers allows easy customization of torque and speed profiles, catering to specialized industrial equipment without significant design modification.
This small bldc motor delivers stable torque and speed with minimal fluctuation, supporting precise bldc motor control essential for delicate machinery. Quiet operation below 60 dB enhances the working environment, particularly in noise-sensitive applications such as medical devices. The motor’s voltage tolerance and multiple input options ensure operational stability across different power systems. These performance attributes translate into higher throughput rates and lower downtime, providing end users consistently reliable and energy-efficient functionality in demanding production environments.
Basic characteristics of motor
|
Rated power（W） |
60 (40W/60W) |
|
Rated speed（r/min） |
3000 |
|
Rated torque（N.m） |
0.191 |
|
Instantaneous maximum torque（N.m） |
0.287 |
|
Rotor moment of inertia（J:X10-4kg.m2） |
0.082 |
|
Speed control range（RPM） |
200~3000 |
|
Speed control range On load |
Below ±1%: Condition 0~rated torque, rated speed, rated voltage, room temperature |
|
Speed control On voltage |
Below±1%: Condition rated voltage ±10%, rated speed, rated load, room temperature |
|
Speed control On temperature |
Below±1%: Conditions of ambient temperature -10ºC~+40ºC rated voltage, rated load and rated speed |
|
Rated voltage（V） |
Single phase 110V | Single phase 220V | 24VDC (Optional 36VDC/48VDC) |
|
Voltage tolerance range |
±10% |
|
Frequency（Hz） |
50/60 |
|
Frequency tolerance range |
±5% |
|
Rated input current（A） |
1.7 | 1.0 | 3.7 |
|
Instantaneous maximum input current（A） |
3.3 | 1.9 | 5.6 |

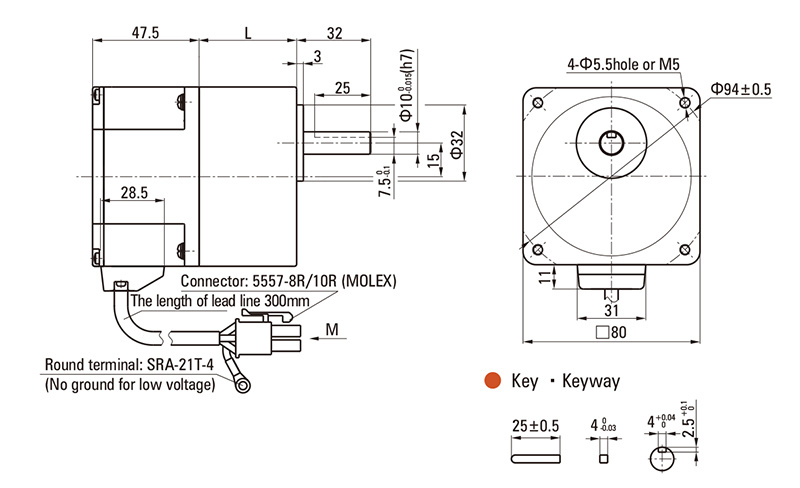

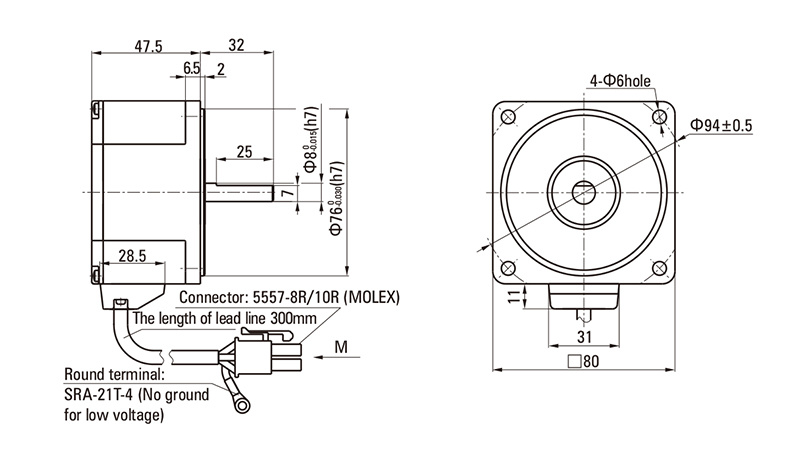

Circular shaft type optical motor

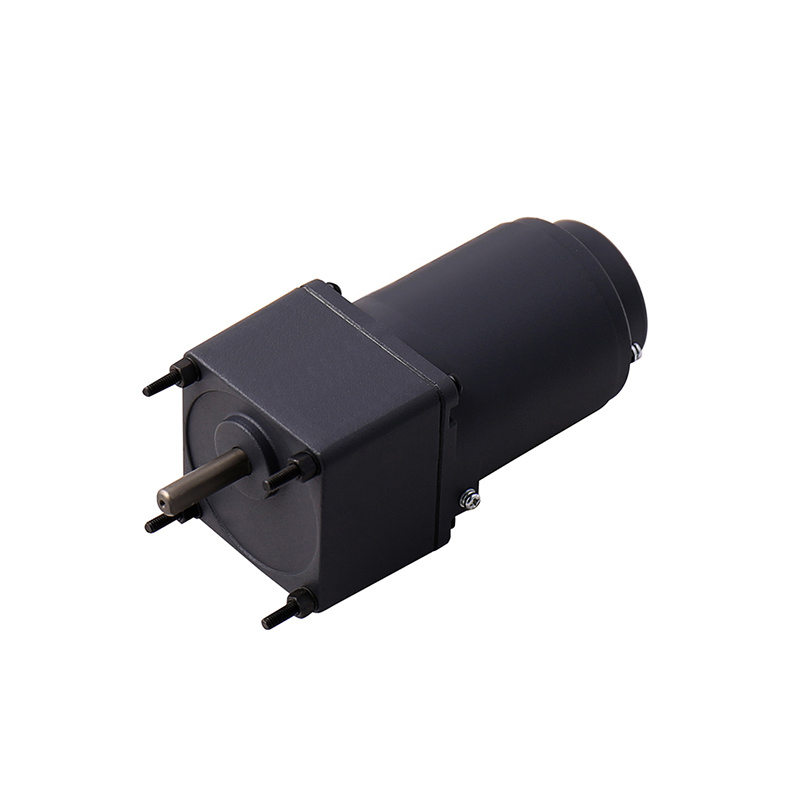

60W Parallel shaft speed reducer
Z4BLD40- GN-30S/4GN□K Gearmotor Data (at 200~1500RPM)
|
Gear Ratio
|
Rated Torque (Nm)
|
|---|---|
| 3 | 0.48 |
| 3.6 | 0.58 |
| 5 | 0.80 |
| 6 | 0.97 |
| 7.5 | 1.21 |
| 9 | 1.45 |
| 10 | 1.61 |
| 12.5 | 2.01 |
| 15 | 2.41 |
| 18 | 2.90 |
| 20 | 2.90 |
| 25 | 3.63 |
| 30 | 4.35 |
| 36 | 5.22 |
| 50 | 7.25 |
| 60 | 7.87 |
| 75 | 8.00 |
| 90 | 8.00 |
| 100 | 8.00 |
| 120 | 8.00 |
| 150 | 8.00 |
| 180 | 8.00 |
| 200 | 8.00 |
Z4BLD60- GN-30S/4GN□K Gearmotor Data (at 200~1500RPM)
|
Gear Ratio
|
Rated Torque (Nm)
|
|---|---|
| 3 | 0.72 |
| 3.6 | 0.87 |
| 5 | 1.21 |
| 6 | 1.45 |
| 7.5 | 1.81 |
| 9 | 2.17 |
| 10 | 2.41 |
| 12.5 | 3.02 |
| 15 | 3.62 |
| 18 | 4.34 |
| 20 | 4.35 |
| 25 | 5.44 |
| 30 | 6.53 |
| 36 | 7.83 |
| 50 | 8.00 |
| 60 | 8.00 |
| 75 | 8.00 |
| 90 | 8.00 |
| 100 | 8.00 |
| 120 | 8.00 |
| 150 | 8.00 |
| 180 | 8.00 |
| 200 | 8.00 |

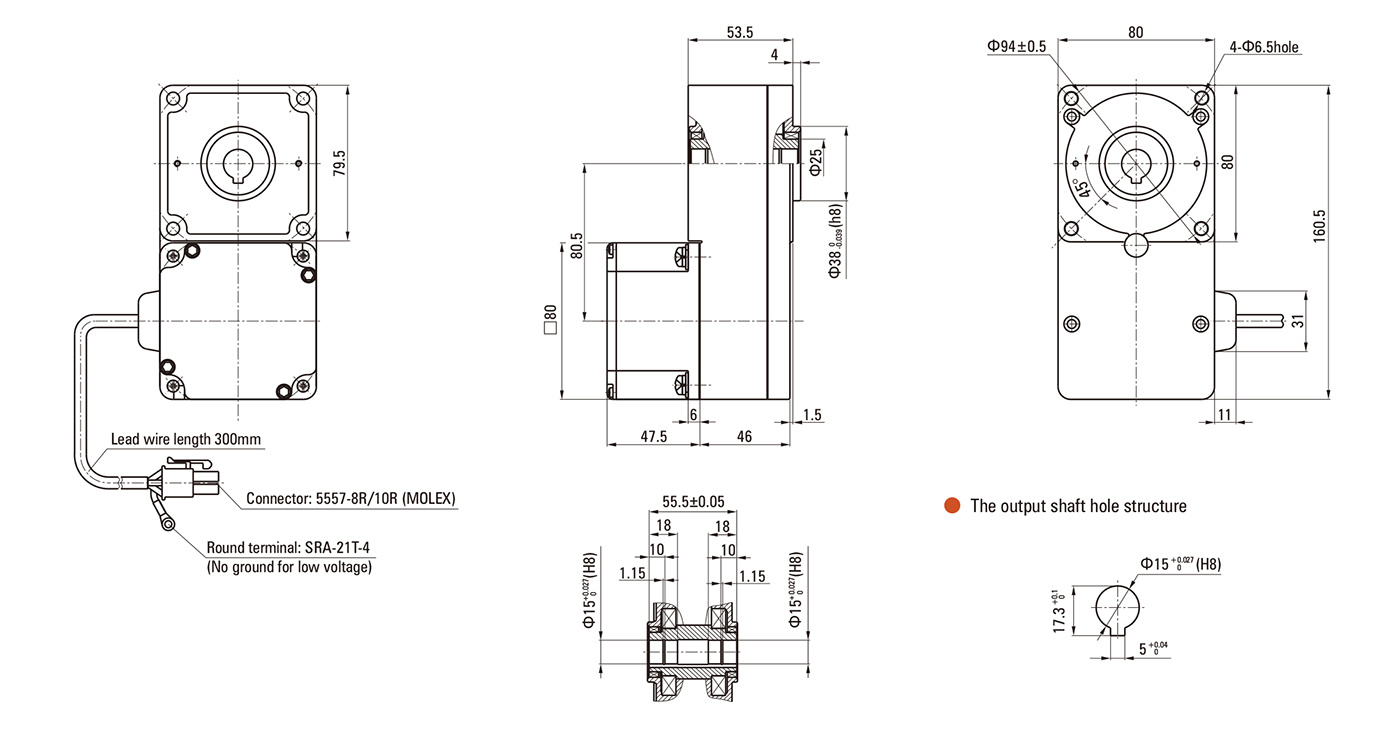

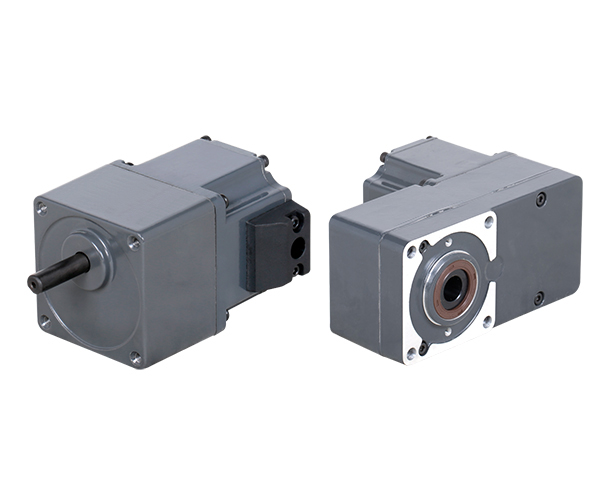

L type speed reducer
Z4BLD40- GN-30S/4GN□LC Gearmotor Data (at 200~1800RPM)
|
Gear Ratio
|
Rated Torque (Nm)
|
|---|---|
| 5 | 0.73 |
| 10 | 1.45 |
| 15 | 2.18 |
| 20 | 2.90 |
| 30 | 4.35 |
| 50 | 7.25 |
| 100 | 14.50 |
| 200 | 29.00 |
In manufacturing and robotic automation environments, the 80 Series Small BLDC Motor functions as a compact drive solution providing consistent speed and torque modulation. Its small bldc motor profile integrates effortlessly into robotic arms and precision assembly tooling, where tight bldc motor control is vital for repeatability and accuracy. The motor’s compatibility with various gear reducers enables customized torque amplification, ensuring compliance with mechanical load requirements. Its low noise and heat dissipation features streamline integration within cleanroom or noise-restricted production areas, increasing operational efficiency while maintaining quality standards.
Within medical instrumentation and laboratory automation, this small bldc motor offers critical advantages through low vibration and quiet performance. Its precise speed control capabilities enhance the accuracy of devices such as diagnostic analyzers and micro-pumps, where stability at variable speeds is mandatory. Robust design from reputable bldc motor manufacturers ensures prolonged reliability under continuous use and adherence to stringent quality controls. This motor’s energy-efficient operation supports compact and portable equipment layouts, simplifying compliance with healthcare standards and facilitating seamless integration into complex control systems.
What customization options do you offer for the 80 Series Small BLDC Motor?
We provide multiple options including rated power (40W or 60W), rated voltage (24VDC, 110V, 220V, and optionally 36VDC/48VDC), and compatibility with planetary or right-angle gear reducers for gear ratios from 3:1 to 200:1. Our team supports tailored configurations to fit your application requirements using premium BLDC motor components.
How does Caida ensure the durability and noise performance of this BLDC gearmotor?
We use anodized aluminum housings for superior heat dissipation combined with ball bearings, enhancing durability and operational lifespan. The motor operates below 60 dB noise level, making it suitable for noise-sensitive environments. Our rigorous quality controls ensure consistent performance expected from a reliable bldc gearmotor manufacturer.
Can the 80 Series Small BLDC Motor be mounted in different orientations?
Yes, due to its compact and robust design, the motor supports both horizontal and vertical mounting orientations. This flexibility aids integration into diverse industrial systems, ensuring stable speed and torque control whether installed in laboratory instruments, robotic arms, or smart manufacturing equipment.
What support does Caida provide for motor speed control and system integration?
Our BLDC motor control solutions allow precise speed regulation from 200 to 3000 RPM with ±1% stability. We assist with integration into your automation systems and support choice of compatible control drivers and gearboxes. Contact us for detailed technical guidance optimizing your motor control application.
