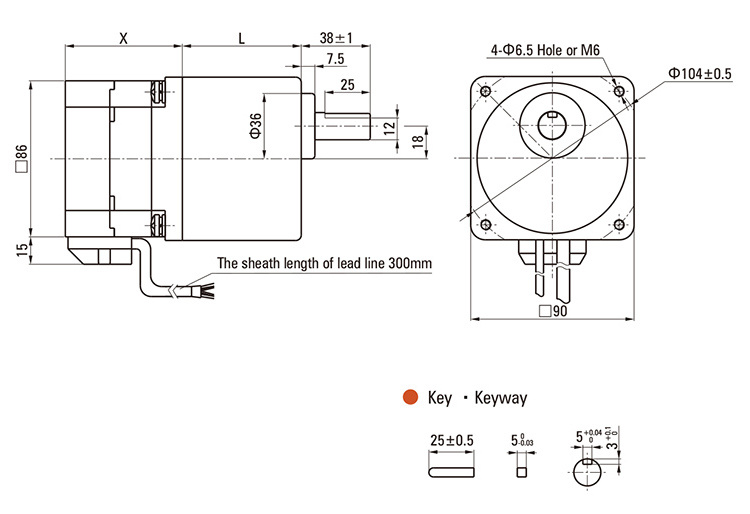

Parallel shaft speed reducer
Motor power band
| Rated power(W) | Rated speed(RPM) | Extent(mm） |
| 200 | 3000 | 64.5 |
| 300 | 3000 | 74.5 |
| 400 | 3000 | 84.5 |
| 500 | 3000 | 94.5 |
| 600 | 3000 | 105.5 |
| 750 | 3000 | 130.0 |
| Gearhead model | Gear ratio | Dimension |
| 5GU□KB | 3~200 | 65.5 |
Enter the gear ratio in the box (□) within the model name
Z55BLD200- GUL-30S/5GU□LC

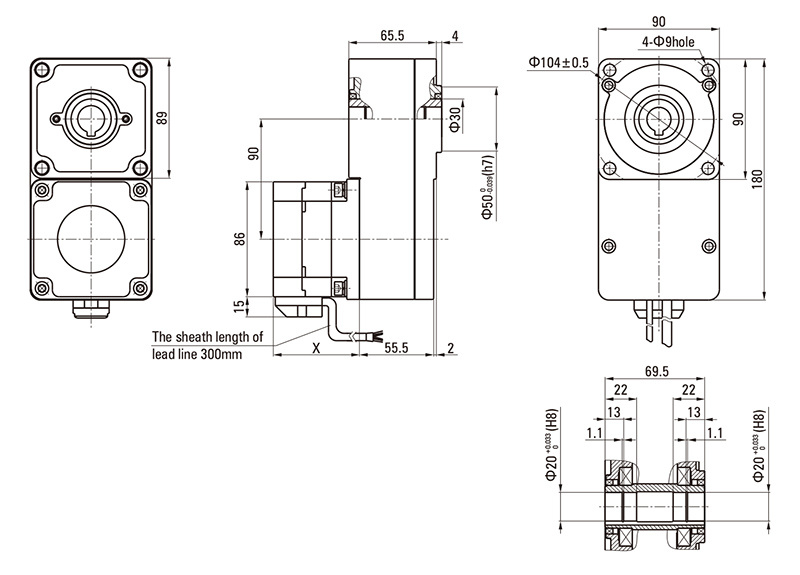

L type speed reducer

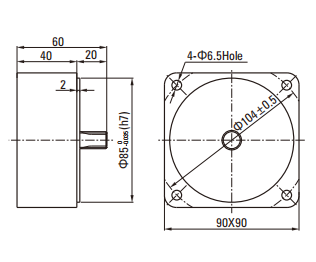

5GU□XK Decimal gearhead
The output shaft hole structure
Description
Functional Role and Target User Profile

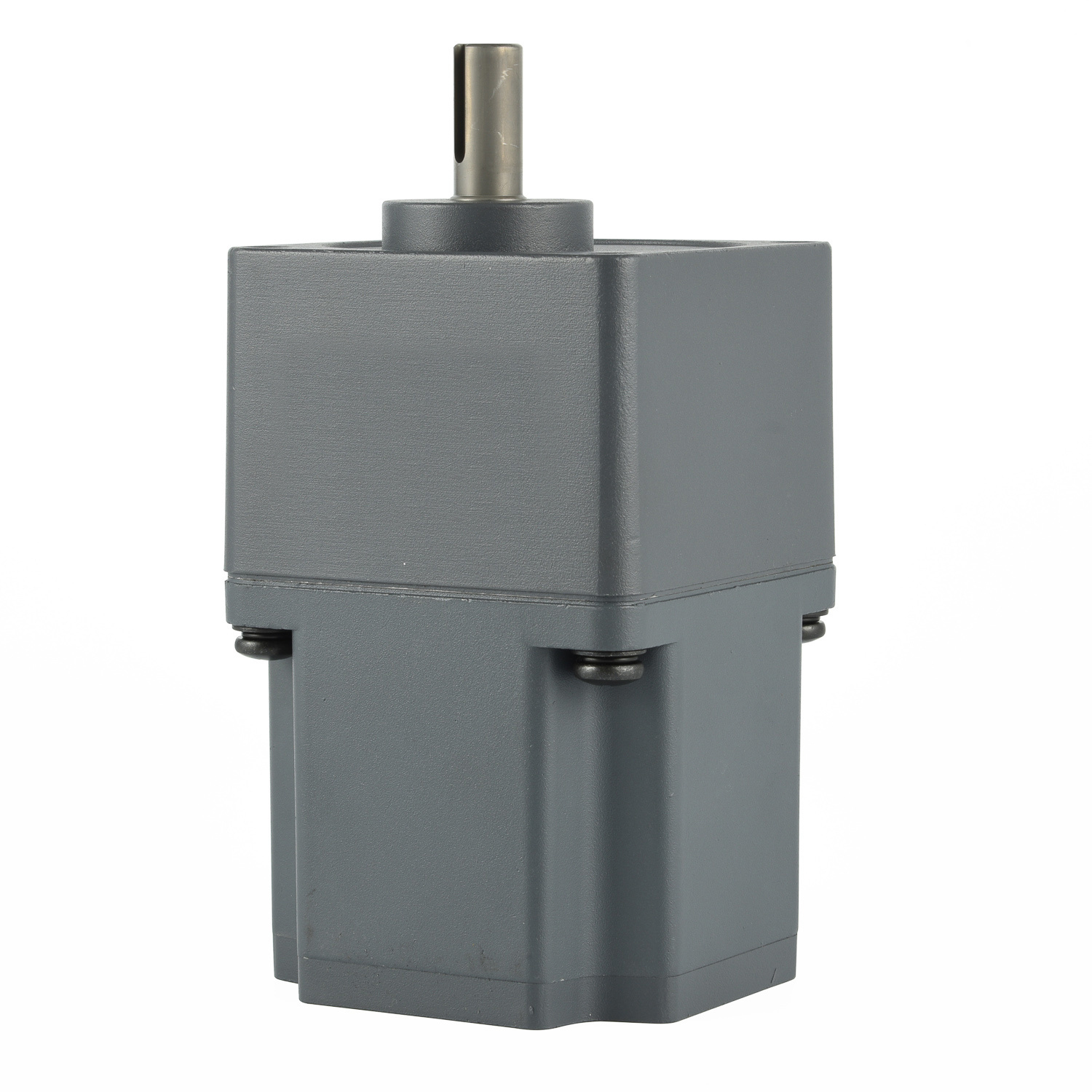

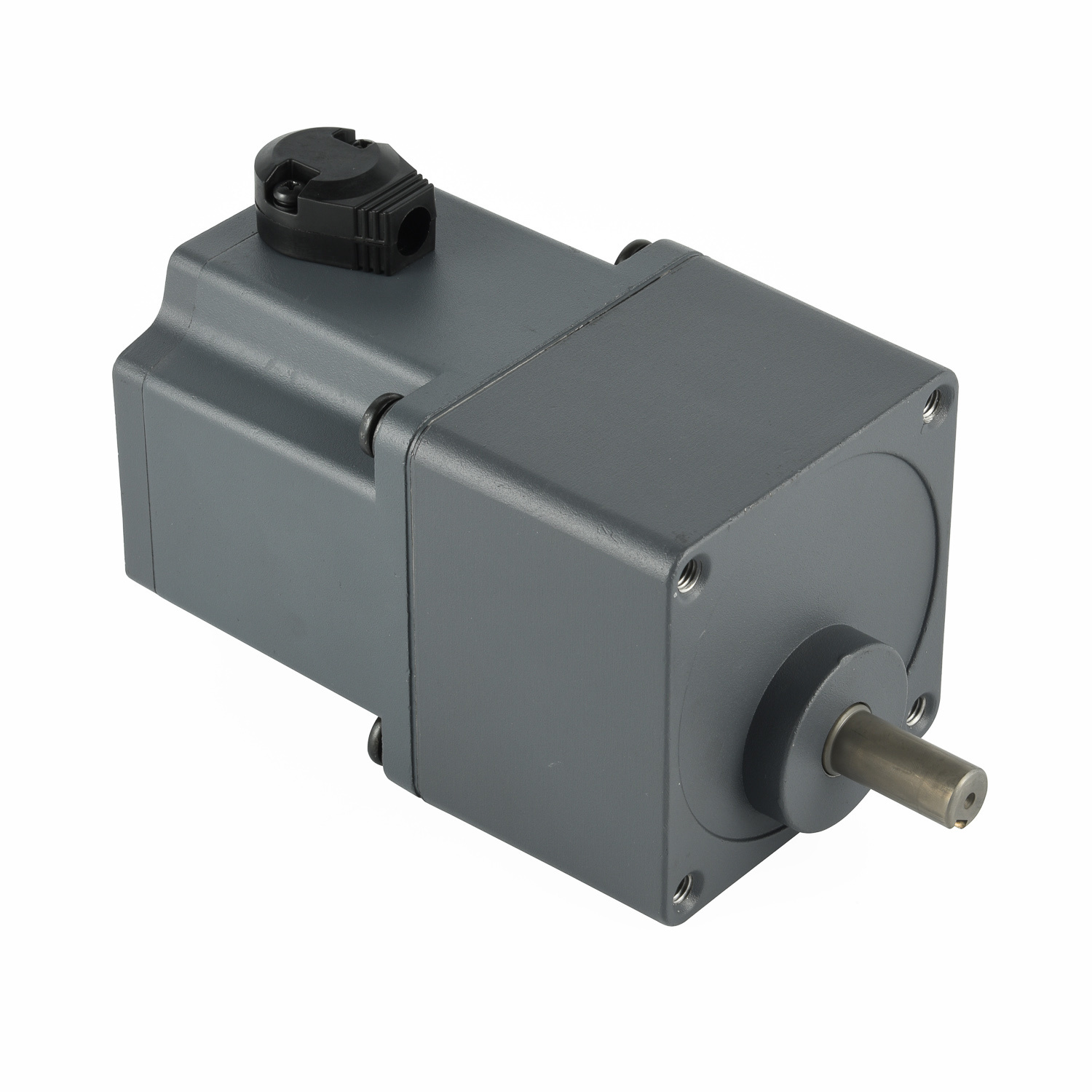

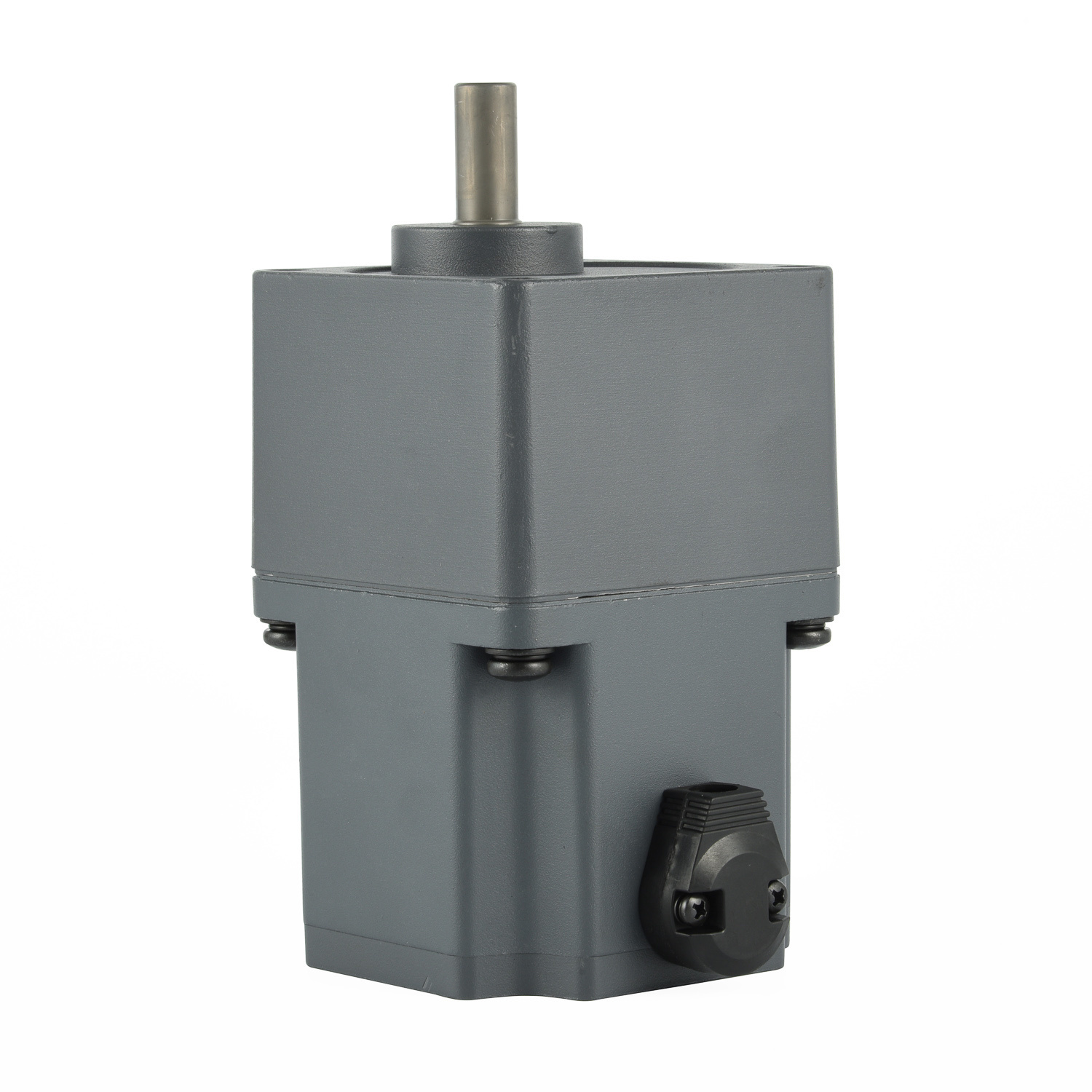

Designed for engineering and industrial automation professionals, the 86 Series Brushless DC Motor GU Type provides a reliable solution for applications requiring precise speed and torque regulation. Targeted at system integrators and equipment manufacturers, this bldc motor with parallel shaft speed reducers addresses diverse operational demands across sectors. Its rated power range of 200W to 750W and 3000 RPM speed accommodate a variety of machinery size and power specifications, facilitating flexible integration within automated processes that require stringent bldc motor control protocols. This product meets the needs of users seeking performance consistency combined with modular adaptability in industrial drive systems.
Advanced Technical Characteristics and Specifications
The 86 Series features customizable gear ratios spanning from 3 to 200, implemented through a decimal gearhead with precise output shaft hole construction, enhancing mechanical compatibility. Rated power options from 200W up to 750W operate reliably at 3000 RPM, with a compact extent dimension ranging from 64.5mm to 130mm supporting space-constrained installations. Developed by a certified bldc gearmotor manufacturer, this product adheres to CE, UL, and RoHS standards ensuring quality and safety compliance. In-house production controls enable consistency in torque delivery and speed regulation, crucial for applications requiring exact bldc motor control and durability in demanding industrial environments.
Industry Deployment and Operational Value
This brushless DC motor type is optimized for implementation in sectors requiring robust power transmission and precision motion control, including automation, robotics, and conveyor systems. Its adaptability supports integration into compact actuator assemblies or as replacements in existing brushless motor setups to enhance efficiency. The product’s configurable gear ratios and stable output characteristics facilitate improved system reliability and reduced maintenance overhead. Localized stock availability further improves procurement agility, making it a practical choice for manufacturers prioritizing uptime and operational efficiency in industrial automation workflows reliant on advanced bldc motor control capabilities.
Use Scenarios
Precision Torque Control in Automated Machinery
Within the manufacturing automation arena, precise torque delivery is essential for processes such as assembly line robots and CNC machines. The 86 Series brushless DC motor fulfills this role by providing customizable gear ratios and controlled speed profiles, enabling accurate motion sequencing and repeatable torque application. Its compliance with CE and RoHS standards ensures operational safety and environmental adherence. This motor’s compact design facilitates integration into limited-space actuator units, supporting seamless workflow coordination and system harmonization in automated production environments requiring dependable bldc motor control.
Speed Regulation in Conveyor and Material Handling Systems
In logistics and material handling sectors, consistent speed regulation of conveyor belts and transport lines is vital for throughput optimization. The GU Type 86 Series’s broad gear ratio flexibility combined with stable power output allows precise adjustment of conveyor speeds to match operational requirements. Its robust construction and compliance with international certifications mitigate downtime risks, enabling reliable service in continuous operation settings. Integration with existing control architectures is facilitated by the motor’s standardized mounting and output shaft design, thereby improving automation efficiency and contributing to overall system synchronization critical in high-demand industrial logistics workflows.
FAQ
What customization options are available for the 86 Series Brushless DC Motor GU Type?
The 86 Series offers customizable gear ratios from 3 to 200 to meet specific speed and torque requirements. As a leading bldc motor manufacturer, Caida supports tailored configurations to adapt the bldc gearmotor manufacturer product for diverse industrial applications.
How does Caida ensure the quality and reliability of its brushless motors?
Caida manufactures the 86 Series under strict quality controls and international certifications including CE, UL, and RoHS. This guarantees the bldc motor products meet global standards for durability and performance across high-precision industrial environments.
What are the installation requirements for integrating the 86 Series motor into existing systems?
The motor features a decimal gearhead with precise output shaft hole structures to simplify integration into machinery. Detailed multilingual technical documentation and customer support from the bldc motor manufacturer assist with seamless assembly and system compatibility.
What delivery options are available for the 86 Series Brushless DC Motor?
Caida operates European overseas warehouses enabling local 72-hour delivery for urgent orders. Delivery timelines depend on location and order volume, ensuring efficient logistics and availability for businesses sourcing from a trusted bldc motor control supplier.
