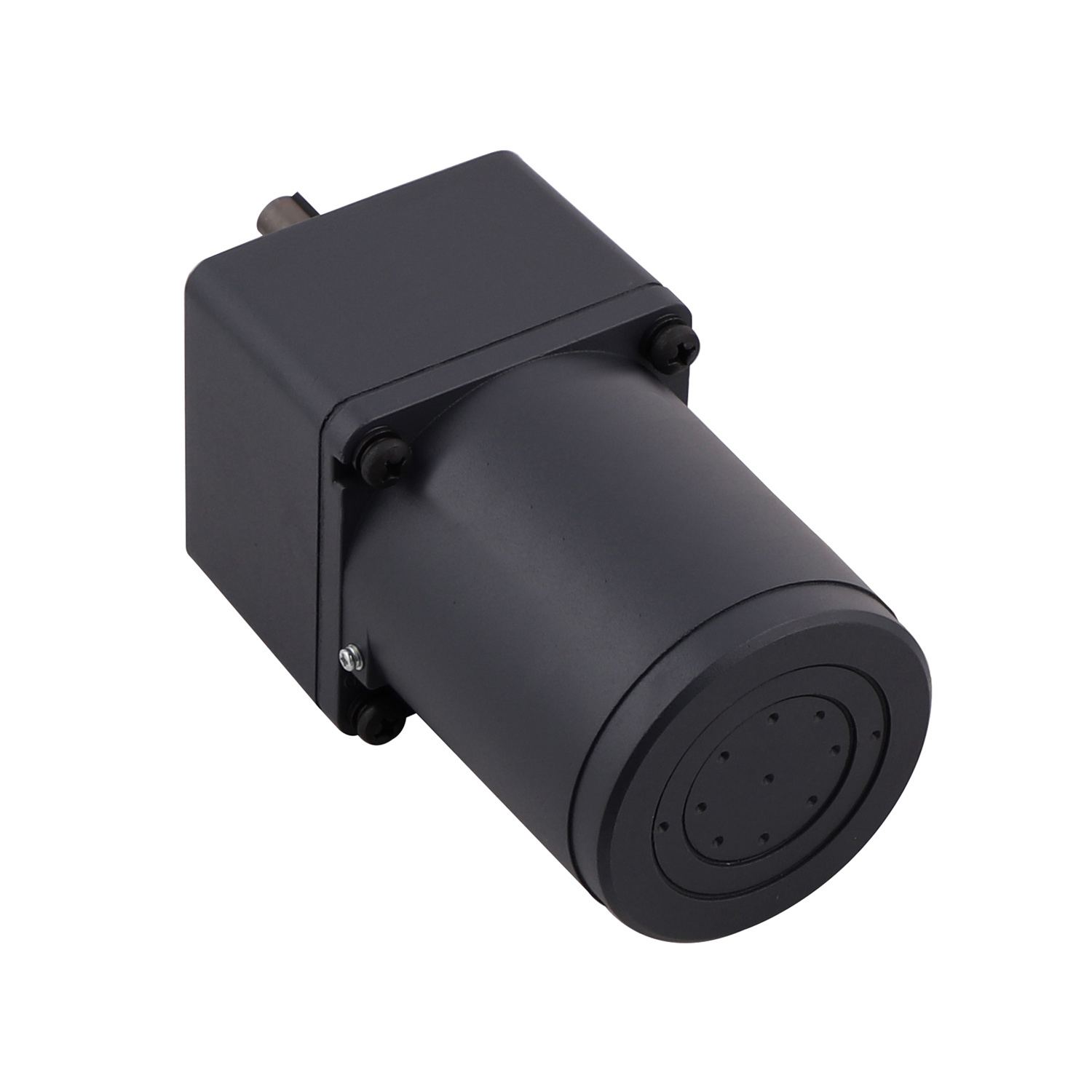

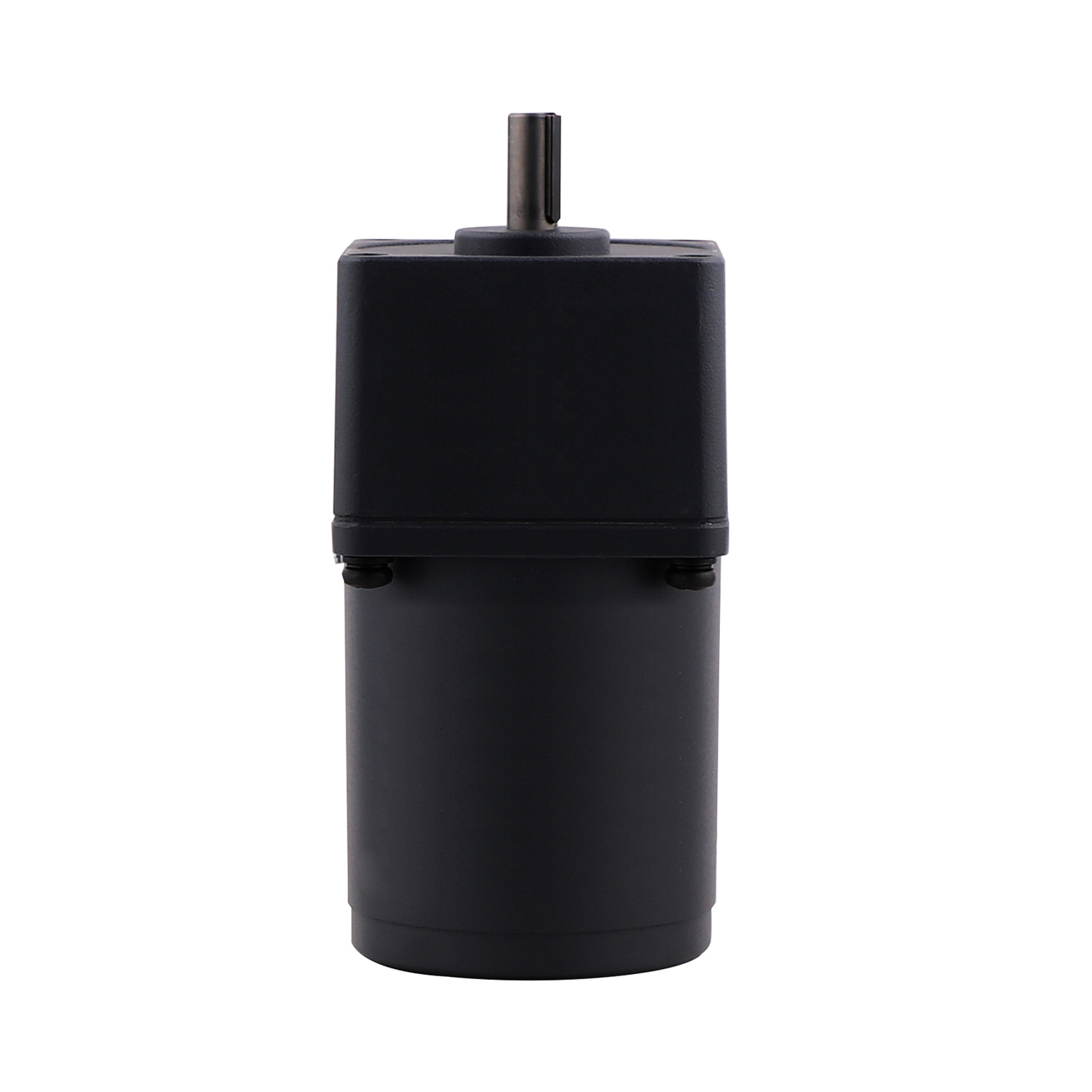

The compact 90 mm 60 W unit is a small ac motor providing robust torque and versatile voltage compatibility. Trusted among ac motor manufacturers and ac motor suppliers for precise industrial automation needs.
This small ac motor is engineered to meet the demands of OEMs, engineers, and procurement specialists requiring reliable, space-efficient motors. Its compact design with a 90 mm diameter and 60 W power output is ideal for applications where mechanical constraints dictate compactness without compromising performance. Target users include manufacturers in automation, robotics, and laboratory equipment sectors who seek dependable motion solutions. Recognized by global ac motor suppliers, this product supports single-phase and three-phase power inputs, ensuring compatibility across diverse operational requirements and serving as an adaptable component in complex drive systems.
The 60 W small ac motor features measurable specifications optimized for industrial use: operating from –10 °C to +50 °C with up to 85% relative humidity, it withstands demanding ambient conditions. Paired with a precision planetary gearbox offering gear ratios from 3:1 to 200:1, the motor delivers adjustable torque output up to 10 Nm and speeds ranging from 7.5 min⁻¹ to 3500 min⁻¹. Radial and axial load capacities at rated gear ratios are designed for robustness—300 N and 100 N respectively—ensuring system reliability and extended operational life. Its lightweight construction supports easy integration by ac motor manufacturers seeking compact yet high-performance drive units.
In practical use, this small ac motor excels in conveyor systems, access control devices, and laboratory turntables requiring precise speed and torque management. It suits environments from logistics and material handling to security automation, where load profiles and power density are critical. Integration with planetary gearboxes allows OEMs and system integrators to customize output dynamics for specialized motion tasks, enhancing workflow efficiency and system responsiveness. This solution positions itself as a vital component in automation technology portfolios maintained by ac motor suppliers worldwide.
The motor's architecture reflects a strategic combination of size efficiency and mechanical durability, achieving a balance between compactness and performance. With a rigid frame measuring 90 mm in diameter and a total weight of approximately 2.7 kg, this assembly facilitates modular integration with standard planetary gearboxes sold by ac motor suppliers. Electrical compatibility with both single-phase and three-phase power supplies simplifies system design and reduces customization overhead for ac motor manufacturers. The inclusion of multiple capacitor options and robust load handling capacity underscores the thoughtful engineering geared toward diverse industrial installation requirements.
Performance advantages of this small ac motor include high starting torque capabilities up to 1000 mNm in select models, which ensures quick responsiveness in dynamic load conditions. The motor’s ability to operate continuously under up to 85% relative humidity and a temperature range spanning –10 °C to +50 °C enhances its reliability across challenging industrial environments. Proven low weight and adaptable speed control increase user value by facilitating easier installation and precise tuning within complex automated systems. These factors contribute to reducing maintenance downtime and improving total cost of ownership for clients sourcing from ac motor suppliers.
|
Model
|
Rated Power (W)
|
Rated Voltage (V)
|
Frequency (Hz)
|
Rated Current(A)
|
Starting Torque (mNm)
|
Rated Torque (mNm)
|
Rated Speed (min-1)
|
Capacitor (μF)
|
| C9060-110T | 60 | 1ph 100 | 50 | 60 | 1.00 | 1.10 | 320 | 470 | 380 | 1250 | 1550 | 20.0 |
| C9060-220T | 60 | 1ph 220 | 1ph 230 | 50 | 0.50 | 0.55 | 340 | 470 | 1250 | 4.0 |
| C9060-S220T | 60 | 3ph 220 | 50 | 60 | 0.45 | 0.40 | 1000 | 800 | 470 | 380 | 1250 | 1550 | - |
| C9060-S380T | 60 | 3ph 380 | 50 | 60 | 0.26 | 0.23 | 1000 | 800 | 470 | 380 | 1250 | 1550 | - |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 1.10 |
| 3.6 | 417 | 1.40 |
| 5 | 300 | 1.90 |
| 6 | 250 | 2.30 |
| 7.5 | 200 | 2.90 |
| 9 | 166 | 3.40 |
| 10 | 150 | 3.57 |
| 12.5 | 120 | 4.80 |
| 15 | 100 | 5.70 |
| 18 | 83 | 6.80 |
| 20 | 75 | 7.03 |
| 25 | 60 | 8.60 |
| 30 | 50 | 10.0 |
| 36 | 41 | 10.0 |
| 40 | 37 | 10.0 |
| 50 | 30 | 10.0 |
| 60 | 25 | 10.0 |
| 75 | 20 | 10.0 |
| 90 | 16 | 10.0 |
| 100 | 15 | 10.0 |
| 120 | 12.5 | 10.0 |
| 150 | 10 | 10.0 |
| 180 | 8.3 | 10.0 |
| 200 | 7.5 | 10.0 |
Radial Load (FR) from reduction 25 : 1 (10 mm from face mounting): 300 N | Axial Load (FA): 100 N | Net Weight Gearbox max. 1.35 kg
|
Capacitance (μF)
|
L
|
W
|
H
|
|---|---|---|---|
| 4.0 | 47 | 23 | 35 |
| 12.0 | 47 | 17 | 31 |
| 20.0 | 47 | 23 | 35 |
In logistics and manufacturing environments, conveyor automation demands precise torque and speed control to maintain flow and avoid bottlenecks. This small ac motor fulfills a critical role by providing compact, high-torque propulsion capable of handling radial loads up to 300 N. Its compatibility with planetary gearboxes allows the integration of variable speed gear ratios to match specific conveyor belt speeds and load conditions. Compliance with industrial temperature and humidity standards ensures operational consistency, making this product a preferred choice for OEMs collaborating with ac motor suppliers to deliver advanced material handling solutions that optimize throughput.
This small ac motor is widely employed in automatic sliding gates and security doors, where smooth, reliable motion control enhances functionality and safety compliance. The motor’s high starting torque supports rapid actuator engagement, while quiet operation suits environments where noise reduction is essential. Integration with planetary gearboxes helps tailor torque and speed to diverse access control mechanisms, ensuring precise positioning and consistent performance. System integrators working with ac motor manufacturers benefit from the motor’s standardized form factor and broad voltage compatibility, simplifying retrofits and new installations within security infrastructure frameworks.
What customization options do you offer for the 90 mm 60 W AC motor?
We provide various voltage and frequency configurations for the 90 mm 60 W AC motor, including single-phase and three-phase models. Additionally, our integrated planetary gearboxes offer gear ratios from 3:1 to 200:1, enabling tailored torque and speed solutions that meet your specific requirements.
How do I integrate this small AC motor into existing automation systems?
Our small AC motor is designed for easy integration in compact spaces and supports common industrial voltages and frequencies. We provide detailed technical specifications and compatibility with Caida’s planetary gearbox, assisting your engineering team to streamline installation and optimize system performance.
What maintenance requirements apply to this AC motor and gearbox combo?
We recommend routine inspection aligned with operating conditions. The rugged design of our AC motor and planetary gearbox minimizes wear under rated loads; however, periodic lubrication of the gearbox and checks on electrical components ensure consistent reliability and prolonged service life.
How does Caida handle delivery and support for industrial clients?
We offer fast and reliable worldwide logistics for all AC motor models and gearboxes. Our customer service team provides pre-supply consultation and post-supply technical support to help you select the right ac motor supplier product and address any application or installation questions promptly.
