Note:

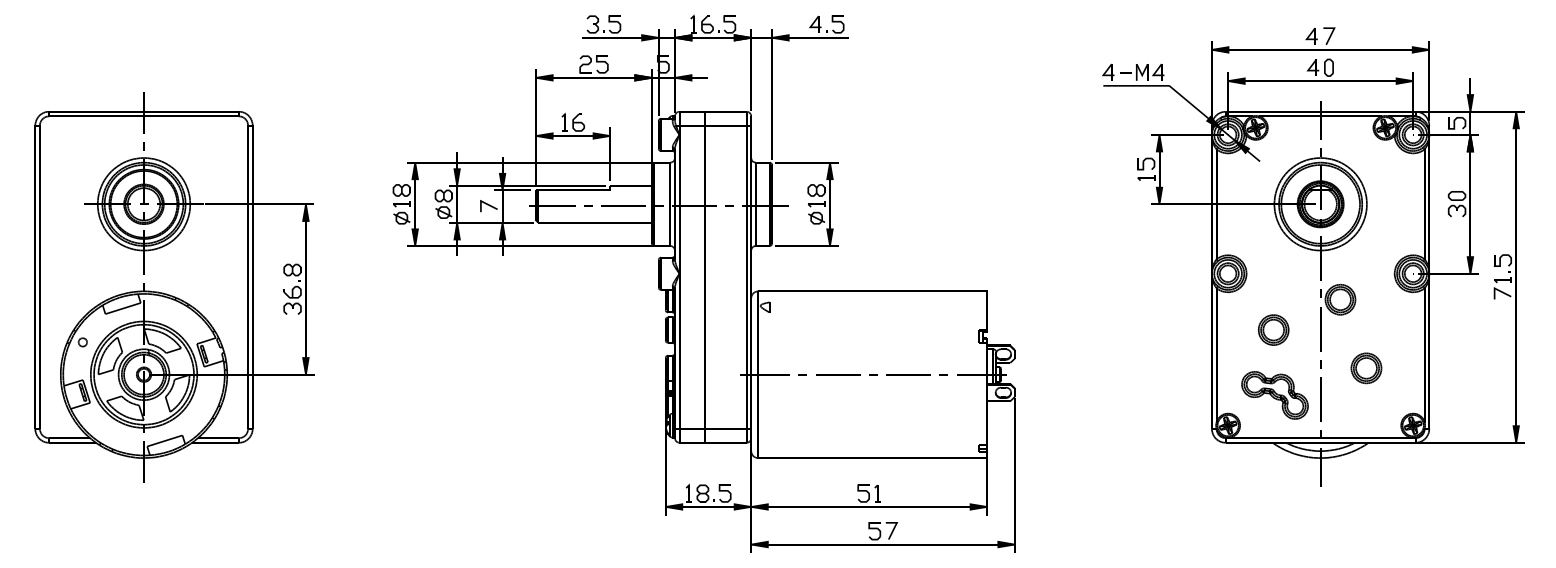

MOTOR APPEARANCE SIZE
Gearbox data
|
Number of stages |
3 Stages reduction |
4 Stages reduction |
5 Stages reduction |
|
Reduction ratio |
73 |
135、252 |
391、506、730 |
|
Gearbox length“ L ”mm |
10kgf.cm |
20kgf.cm |
30kgf.cm |
|
Max.Running torque |
30kgf.cm |
60kgf.cm |
90kgf.cm |
|
Max.Gearing efficiency |
73% |
65% |
59% |
Motor data
|
Motor Model |
Rated Volt.V |
No load |
Load torque |
Stall torque |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
A |
r/min |
A |
r/min |
kgf.cm |
W |
kgf.cm |
A |
||
|
VF-545123000 |
12 |
≤110 |
3000 |
≤450 |
2200 |
100 |
2.2 |
400 |
1800 |
|
VF-545124500 |
12 |
≤220 |
4500 |
≤800 |
3300 |
150 |
4.9 |
600 |
3000 |
|
VF-545126000 |
12 |
≤350 |
6000 |
≤1500 |
4500 |
200 |
9.0 |
800 |
5500 |
|
VF-545243000 |
24 |
≤60 |
3000 |
≤230 |
2200 |
100 |
2.2 |
400 |
900 |
|
VF-545244500 |
24 |
≤110 |
4500 |
≤400 |
3300 |
150 |
4.9 |
600 |
1500 |
|
VF-545246000 |
24 |
≤150 |
6000 |
≤750 |
4500 |
200 |
9.0 |
800 |
3000 |
