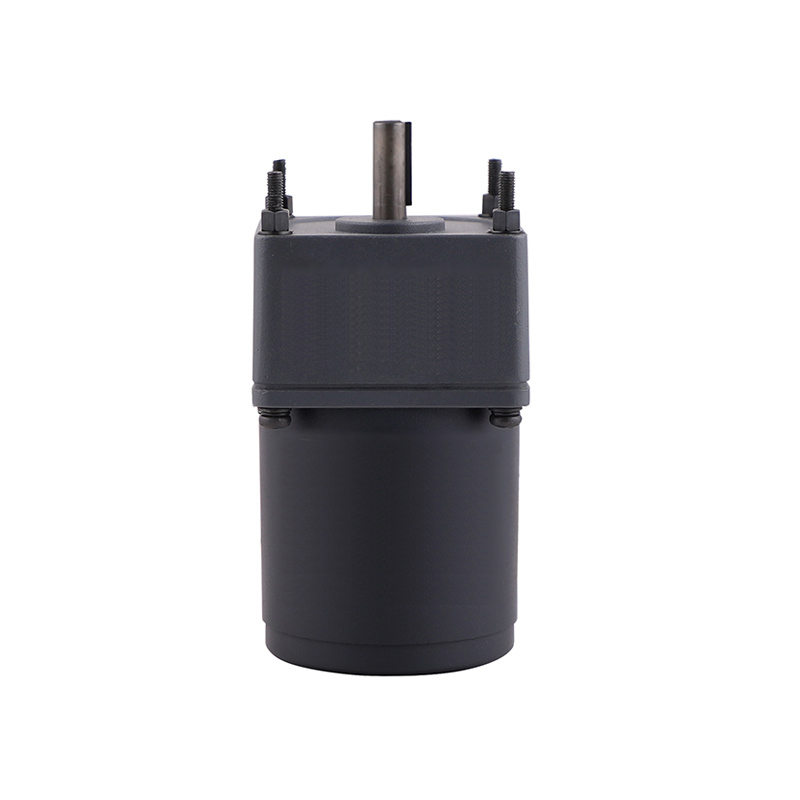

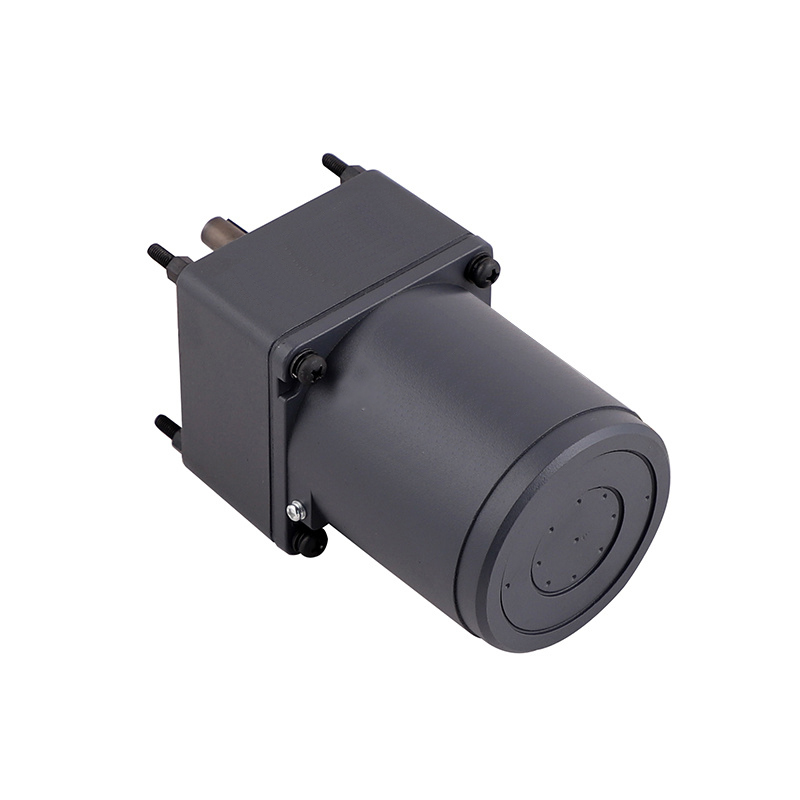

The 80mm 25 W AC Motor offers compact, efficient power for industrial automation. Trusted by global ac motor manufacturers, this small ac motor delivers reliable torque and smooth speed control, ideal for precise machinery integration.
This small ac motor is engineered for professional users requiring compact, dependable power sources in various automation systems. As a product from established ac motor manufacturers, it targets OEMs and integrators seeking motors that fit limited-space environments while delivering consistent operational stability. The 80 mm dimension and 25 W output suit applications demanding continuous duty with effective noise and vibration control. By offering flexible compatibility with multiple gear types, this ac motor supplier provides customizable solutions to optimize system performance and meet diverse industrial needs.
Equipped with configurable gear ratios ranging from 3.5:1 up to 200:1, this ac motor supports output speeds between 3,500 min⁻¹ and 7.5 min⁻¹, adapting torque delivery from 0.49 Nm to 8.0 Nm. It operates reliably within a temperature range of –10 °C to +50 °C and relative humidity of up to 85%. The motor’s rated current variability (0.106 to 0.55 A) and capacitor options allow precise electrical tuning. Its lightweight of 1.6 kg, combined with robust axial and radial load capacity, ensures adaptability and easy integration in complex drive assemblies supplied by professional ac motor suppliers focused on durability and precision engineering.
Recognized by ac motor suppliers for its compliance with CE, UL, and RoHS standards, this small ac motor drives systems including conveyors, rotary tables, and door mechanisms across packaging, electronics assembly, and security sectors. Its low-noise, low-vibration characteristics support environments sensitive to operational disturbance while delivering consistent motion control. The ability to integrate with various gearboxes facilitates tailored motion profiles, improving throughput and equipment longevity. As a solution from trusted ac motor manufacturers, it addresses diverse engineering requirements encountered in modern industrial facilities.
This ac motor features a compact, modular design that supports various gearbox integrations such as worm, bevel, and planetary configurations. Its structural architecture enables simple assembly within constrained spaces while maintaining mechanical resilience under radial and axial loads up to specified thresholds. The combination of lightweight construction and a broad range of gear ratios allows system designers to optimize torque and speed without compromising footprint. Ac motor suppliers leverage these design attributes to provide systems that adapt reliably to diverse industrial automation environments.
Performance-wise, the small ac motor delivers smooth torque output with precise speed regulation, ensuring minimal vibration and noise, essential for sensitive machinery applications. Its operational parameters support steady continuous use, even under fluctuating loads, which enhances system uptime and reduces maintenance costs. Users benefit from the motor’s energy-efficient power consumption and broad environmental tolerances, making it suitable for various industrial locations. Ac motor manufacturers emphasize these universal performance benefits, providing a reliable solution that integrates seamlessly into automated workflows.
|
Model
|
Rated Power (W)
|
Rated Voltage (V)
|
Frequency (Hz)
|
Rated Current(A)
|
Starting Torque (mNm)
|
Rated Torque (mNm)
|
Rated Speed (min-1)
|
Capacitor (μF)
|
| C8025-110 | 25 | 1ph100 | 50|60 | 0.50 | 0.55 | 120 | 200 | 165 | 1250 | 1550 | 8.0 |
| C8025-220 | 25 | 1ph 220 | 1ph 230 | 50 | 0.25 | 0.23 | 120 | 200 | 1250 | 1.8 |
| C8025-S220 | 25 | 3ph220 | 50|60 | 0.185 | 0.170 | 350 | 250 | 200 |165 | 1250 | 1550 | - |
| C8025-S380 | 25 | 3ph380 | 50|60 |
0.106 | 0.098 |
350 | 250 | 200 | 165 | 1250 | 1550 | - |
|
Gear Ratio
|
Speed (min-1)
|
Rated Torque (Nm)
|
|---|---|---|
| 3 | 500 | 0.49 |
| 3.6 | 417 | 0.58 |
| 5 | 300 | 0.81 |
| 6 | 250 | 0.97 |
| 7.5 | 200 | 1.20 |
| 9 | 166 | 1.50 |
| 10 | 150 | 1.55 |
| 12.5 | 120 | 2.00 |
| 15 | 100 | 2.40 |
| 18 | 83 | 2.90 |
| 20 | 75 | 3.17 |
| 25 | 60 | 3.70 |
| 30 | 50 | 4.40 |
| 36 | 41 | 5.30 |
| 40 | 37 | 5.57 |
| 50 | 30 | 6.60 |
| 60 | 25 | 7.90 |
| 75 | 20 | 8.00 |
| 90 | 16 | 8.00 |
| 100 | 15 | 8.00 |
| 120 | 12.5 | 8.00 |
| 150 | 10 | 8.00 |
| 180 | 8.3 | 8.00 |
| 200 | 7.5 | 8.00 |
Radial Load (FR) from reduction 25 : 1 (10 mm from face mounting): 200 N | Axial Load (FA): 50 N | Axiallast (FA): 50 N| Net Weight Gearbox max. 0.8 kg
|
Capacitance (μF)
|
L
|
W
|
H
|
|---|---|---|---|
| 1.8 | 36 | 13.5 | 24 |
| 7.0 | 47 | 24.0 | 37 |
| 8.0 | 48 | 26.5 | 38 |
In packaging industry environments, consistent material flow requires small, reliable drives capable of precise speed control and low maintenance. This small ac motor plays a pivotal role in powering conveyor belts, ensuring steady transport of products through different stages of packaging. The motor’s flexible gear ratios enable accurate speed matching to conveyor speeds, while low vibration and noise maintain product integrity. Integration with control systems allows synchronization with upstream and downstream equipment, optimizing packaging throughput. Ac motor suppliers ensure these motors comply with industry operational standards, facilitating smooth process automation.
Within security and access control sectors, the motor supports slow, precise motion in door actuation systems requiring quiet operation and consistent torque delivery. This small ac motor’s low-vibration characteristics and adjustable speed via multiple gearbox options meet safety and comfort standards demanded in frequent-access environments. Its broad temperature and humidity tolerance allow deployment in diverse indoor and outdoor installations. Engineering teams rely on ac motor manufacturers for dependable supply of these motors to ensure seamless integration into electronic control units and automated access workflows, enhancing system reliability.
What types of gearboxes can I use with the INDUCTION MOTORS 80mm 25 W AC Motor?
We offer flexible integration with various gearboxes including worm, bevel, and planetary types. This allows you to customize speed and torque output to match your specific application requirements using our compact AC motor systems.
Can you customize the motor’s speed and torque to fit my application?
Yes, we provide a wide selection of gear ratios from 3.5:1 up to 200:1, enabling precise speed ranges between 3,500 min⁻¹ down to 7.5 min⁻¹ and torque outputs from 0.49 Nm to 8.0 Nm. Our solutions support tailored power adjustments on this small but robust AC motor.
How do I ensure proper installation and maintenance of this small AC motor?
We recommend installing the motor in environments within –10 °C to +50 °C and relative humidity of 20% to 85%. Proper ventilation and avoiding excessive load beyond 200 N radial and 50 N axial help maintain durability. Our technical support can guide you through installation and upkeep.
What certifications and standards does your AC motor comply with?
Our products are manufactured under ISO 9001:2015 certification, meeting CE, UL, and RoHS standards. This ensures the AC motor you purchase from us adheres to strict quality and environmental requirements, supporting your industrial applications with reliability and compliance.
