Outside Diameter 52 DC Brush Motor
|
Motor Type |
Gearbox Model |
Gear Ratio |

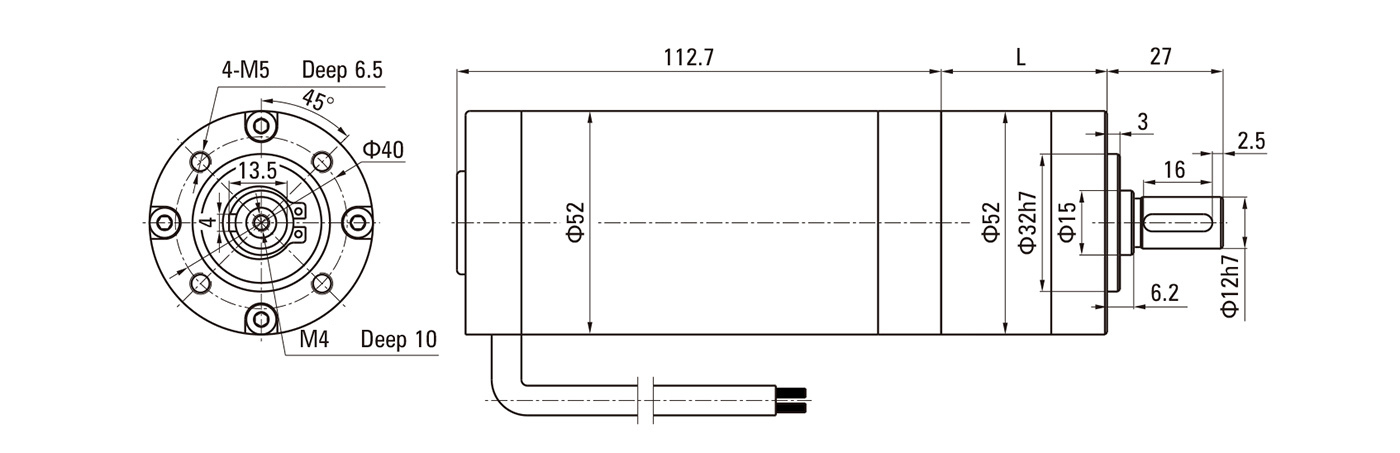

Dimension |
|
Z52DPN |
52PN□ |
3.65~8.63 | 13.53~58.22 | 67.08~392.98 |
38.6 | 54.2 | 69.8 |
DC Motor Technical Data
|
Motor Type |
Voltage(V) |
Rated Power(W) |
No-load Current(A) |
No-load Speed(RPM) |
Rated Current(A) |
Rated Speed(RPM) |
Rated Torque(N.m) |
Motor Life(H) |
|
Z52DPN2440-30S |
24 | 40 | 1.0 | 3500 | 2.5 | 3000 | 0.127 | 2000 |
|
Z52DPN2460-30S |
24 | 60 | 1.2 | 3600 | 4.0 | 3000 | 0.191 | 2000 |
DC Planetary Gear Motor Technical Data
|
Gear Ratio
|
Output shaft speed (r/min) |
Allowable torque(Nm) |
Reduction stage |
|---|---|---|---|
| 3.65 | 822 | 0.42 | 1 |
| 5.36 | 560 | 0.61 | 1 |
| 6.55 | 458 | 0.75 | 1 |
| 8.63 | 348 | 0.99 | 1 |
| 13.53 | 222 | 1.39 | 2 |
| 18.92 | 159 | 1.95 | 2 |
| 24.65 | 122 | 2.54 | 2 |
| 28.05 | 107 | 2.89 | 2 |
| 33.92 | 89 | 3.49 | 2 |
| 44.69 | 67 | 4.60 | 2 |
| 58.22 | 52 | 5.99 | 3 |
| 67.08 | 45 | 6.22 | 3 |
| 81.11 | 37 | 7.52 | 3 |
| 91.36 | 33 | 8.47 | 3 |
| 102.88 | 29 | 9.54 | 3 |
| 118.98 | 25 | 11.03 | 3 |
| 127.74 | 24 | 11.84 | 3 |
| 145.36 | 21 | 13.48 | 3 |
| 165.64 | 18 | 15.36 | 3 |
| 191.56 | 16 | 17.76 | 3 |
| 231.61 | 13 | 21.47 | 3 |
| 301.68 | 9.9 | 25.00 | 3 |
| 392.98 | 7.6 | 25.00 | 3 |
Precision Engineering in a Compact Form

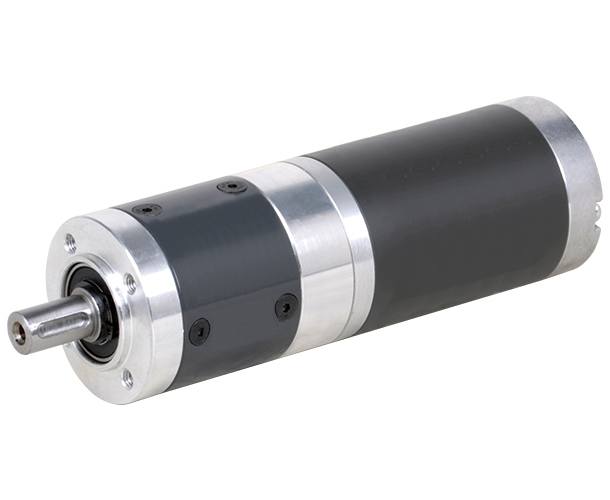

The ZPNΦ52 BRUSH by Caida is a compact drive solution that integrates a 52 mm brushed DC motor from the Z52DPN series with the high‑performance 52PN□ planetary gearbox. This planetary gear motor operates on 24 V DC and is available in rated power options of 40 W and 60 W. The no‑load speeds reach 3 500 RPM and 3 600 RPM respectively, while the rated speed remains steady at 3 000 RPM. With torque outputs of 0.127 Nm and 0.191 Nm, this model provides a precise and powerful motion source suitable for continuous operation in demanding environments.
Wide Gear Ratio Range for Greater Flexibility
The ZPNΦ52 BRUSH offers an extensive selection of gear ratios from 3.65:1 to 392.98:1 through single, double, and triple stage configurations. This flexibility allows for a wide spectrum of output speeds—from 822 RPM down to 7.6 RPM—and torque capacities ranging from 0.42 Nm up to 25.00 Nm. Such a range makes this planetary gear motor ideal for tailored applications that require a specific balance of torque and speed, whether in industrial machinery or automation systems.
Reliable Motion Performance Across Applications
Engineered for durability and consistent performance, the ZPNΦ52 BRUSH is rated for 2 000 hours of operational life. The planetary gearbox ensures efficient power transmission with minimal backlash, while the brushed DC motor provides predictable response and straightforward control. This integration makes it suitable for applications requiring long-term use with minimal maintenance, and positions it as a competitive solution among planetary gear motor manufacturers and gearmotor suppliers.
Product Advantages
Compact Design with Integrated Gearbox
The ZPNΦ52 BRUSH combines motor and gearbox into a compact, unified unit that saves installation space and reduces mechanical complexity. The 52 mm brushed DC motor and precision planetary gearbox are tightly integrated, simplifying assembly and offering a clean, efficient motion solution for equipment where size constraints are a critical factor.
Optimized Gear Ratio Selections
Equipped with a planetary gearbox offering gear reduction from 3.65:1 up to 392.98:1, the ZPNΦ52 BRUSH can accommodate a wide range of mechanical requirements. Whether the application calls for high speed with low torque or slow motion with high torque, this gearmotor delivers consistent performance. Its rated torque range of 0.42 Nm to 25.00 Nm supports diverse use cases in motion systems and automation.
Built for Longevity and Reliability
Rated for 2 000 hours of service life, the ZPNΦ52 BRUSH is built to perform over extended periods. The motor options at 40 W and 60 W provide dependable power, and the planetary gearbox ensures stable load handling. With high-quality components and tested performance, this model stands out among planetary gearmotor suppliers for its durability and design integrity.
Use Cases
Compact Automation Equipment
The ZPNΦ52 BRUSH is ideally suited for small automation systems, such as robotic joints or compact conveyors, where precise control and limited space are required. By selecting gear ratios like 44.69:1 or 58.22:1, engineers can implement low-speed, high-torque movements necessary for accurate operation in tight mechanical setups.
Industrial Machinery and Motion Control
Industrial control systems benefit from the wide performance range of the ZPNΦ52 BRUSH. Applications such as pick‑and‑place units, positioning tables, and light-duty drive assemblies can rely on the consistent 3 000 RPM rated speed and robust torque output. The product’s adaptability makes it a practical choice for OEMs seeking dc motor suppliers who deliver flexibility and value.
Laboratory and Testing Equipment
For laboratory devices requiring delicate motion and quiet operation, the ZPNΦ52 BRUSH offers smooth speed reduction and torque precision through high-ratio planetary gearing. Gear ratios such as 133.97:1 or 392.98:1 allow extremely slow, controlled output suitable for sample adjustment arms or micro-positioners in scientific applications.
About Us
Caida specializes in the R&D and production of high-performance drive systems, offering a broad range of compact electric motors, planetary gear motors, and planetary gearboxes for industrial and commercial use. With product lines covering brushed and brushless DC motors, AC gear motors, servo motors, stepper motors, and customized motion components, Caida meets the diverse demands of OEMs, integrators, and equipment designers.
The ZPNΦ52 BRUSH, along with the ZPNΦ42 and ZPNΦ62, represents Caida’s focus on integrating planetary gearing with durable motor cores to deliver compact and efficient solutions. All products are engineered for longevity and precision, with clear specifications on rated voltage, torque, power, and gearbox reduction stages to guide selection and deployment. Our in-house design capabilities ensure that every motor-gearbox assembly aligns with the application’s needs for torque, size, speed, and life expectancy.
As a trusted planetary gear motor manufacturer and gearmotor supplier, Caida supports clients with technical consultation and product customization to ensure optimal system integration. We provide consistent quality, competitive pricing, and responsive service to global customers in robotics, automation, logistics, medical, and more. Choose Caida for proven expertise in motion solutions that work.
Contact us today to learn how ZPNΦ52 BRUSH can drive precision and performance in your next motion control system.
FAQ
What motor sizes and power options are available for ZPNΦ52 BRUSH?
This model integrates a 52 mm brushed DC motor with rated power of 40 W or 60 W at 24 V.
What gear ratios can be selected for ZPNΦ52 BRUSH?
The planetary gearbox offers ratios from 3.65:1 to 392.98:1 using single to triple stage configurations.
What is the typical output speed and torque range?
Output shaft speeds range from 822 RPM to 7.6 RPM with torques from 0.42 Nm up to 25.00 Nm.
How long can ZPNΦ52 BRUSH operate under normal use?
It is designed for 2 000 hours of operational life under rated conditions.
Which industries commonly use this model?
ZPNΦ52 BRUSH is well-suited for robotics, industrial machinery, laboratory devices, and automated systems requiring compact, precise motion control.
