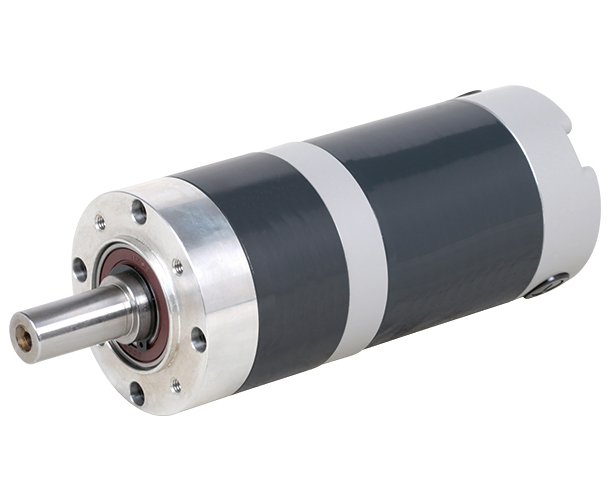

The Caida ZPNΦ82 Brush is a high-efficiency industrial planetary gearmotor featuring an 82 mm brushed DC motor and precision planetary gearbox. This solution from leading planetary gearmotor suppliers ensures reliable torque and scalable speed control.
Optimized for Industrial Motion Control and Automation
The Caida ZPNΦ82 Brush planetary gearmotor is engineered specifically for industrial automation and motion control professionals requiring robust torque output and precise speed regulation. Designed by expert planetary gear motor manufacturers, this compact integrated system appeals to engineers tasked with upgrading conveyor drives, robotic actuators, indexing devices, and other machinery needing scalable power transmission. Its modular design facilitates seamless installation and integration within complex mechanical assemblies, supporting heavy-duty continuous operations in manufacturing environments demanding both reliability and serviceability from their dc motor suppliers.
At its core, this planetary gearmotor incorporates an 82 mm brushed DC motor coupled with a proprietary planetary gearbox offering a broad gear ratio spectrum from 3.65:1 to 392.98:1. This flexibility provides output shaft speeds ranging approximately from 822 RPM down to 7.6 RPM, while delivering torque up to 84 Nm to satisfy diverse application requirements. The system supports single to triple reduction stages, enabling fine-tuned control of mechanical reduction. Electrical options extend from 12 V/90 W to 24 V/180 W, accommodating varied power inputs. With a rated motor life of around 2000 hours, combined with robust construction, this product exemplifies dependable performance for precision demanding industrial settings.
The planetary gearmotor from Caida plays a critical role in industries such as heavy-duty conveyor systems, pick-and-place machinery, indexing devices, and industrial positioning equipment. Its ability to maintain stable torque under varying load conditions makes it indispensable where precise actuation and repeatability are paramount. As a trusted planetary gearmotor supplier, Caida ensures this product adheres to industrial standards for power transmission efficiency and compact footprint, promoting seamless adoption within factory automation lines. This gearmotor facilitates improved workflow dynamics while lowering maintenance overhead, fulfilling engineering requirements for continuous-duty applications requiring controlled mechanical speed reduction.
This planetary gearmotor benefits from a structurally optimized design that integrates the 82 mm brushed DC motor and precision planetary gearbox into a compact and service-friendly assembly. The modular approach allows flexible adaptation across multiple gear ratio configurations offered by Caida, developed by top-tier planetary gear motor manufacturers. The rugged construction supports continuous industrial usage and withstands wear in demanding environments. Its design ensures efficient power transmission while simplifying maintenance procedures, which is highly valued by procurement teams sourcing reliable components from established dc motor suppliers.
From a performance perspective, the Caida planetary gearmotor delivers superior torque consistency and speed regulation across numerous reduction stages, making it suitable for progressive automation needs. The brushed motor core offers maintainability advantages with predictable operational characteristics favored by system integrators. The product provides excellent adaptability to diverse voltage and power configurations that suit evolving application demands. Its reliable duty cycle, combined with precision gearing, ensures operational stability and longevity, translating to reduced downtime and enhanced ROI for industrial users requiring quality and value from their planetary gearmotor suppliers.
Outside Diameter 82 DC Brush Motor
|
Motor Type |
Gearbox Model |
Gear Ratio |

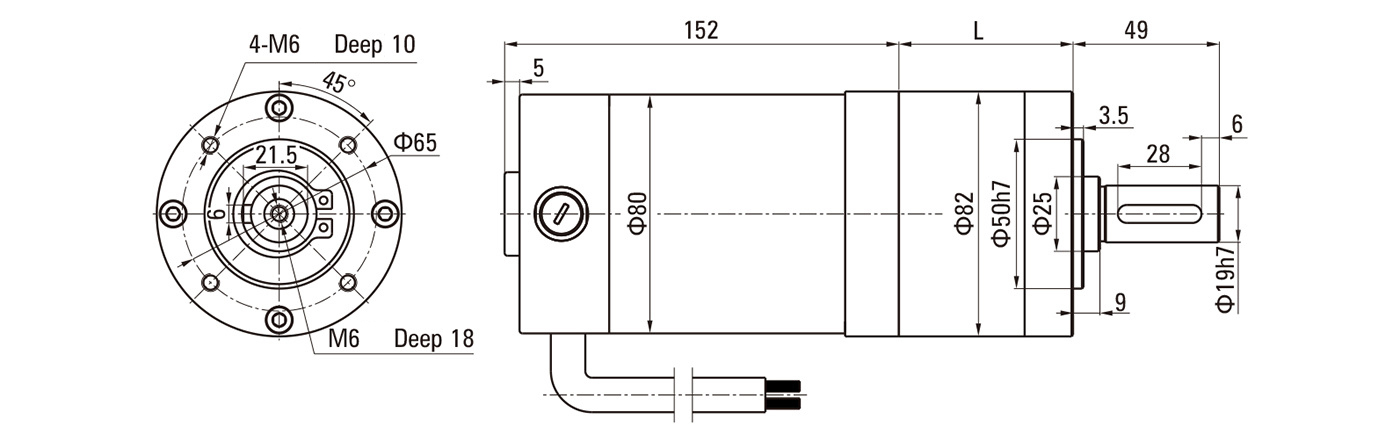

Dimension |
|
Z82DPN |
82PN□ |
3.65~8.63 | 13.53~58.22 | 67.08~392.98 |
63.70 | 80.50 | 103.2 |
DC Motor Technical Data
|
Motor Type |
Voltage(V) |
Rated Power(W) |
No-load Current(A) |
No-load Speed(RPM) |
Rated Current(A) |
Rated Speed(RPM) |
Rated Torque(N.m) |
Motor Life(H) |
|
Z82DPN1290-30S |
12 |
90 |
2.0 |
3500 |
10.5 |
3000 |
0.287 |
2000 |
|
Z82DPN24120-30S |
24 |
120 |
2.0 |
3400 |
7.20 |
3000 |
0.382 |
2000 |
|
Z82DPN48180-30S |
24 |
180 |
2.0 |
3500 |
5.50 |
3000 |
0.573 |
2000 |
DC Planetary Gear Motor Technical Data
|
Gear Ratio
|
Output shaft speed (r/min) |
Allowable torque(Nm) |
Reduction stage |
|---|---|---|---|
| 3.65 | 822 | 1.30 | 1 |
| 5.36 | 560 | 1.80 | 1 |
| 6.55 | 458 | 2.30 | 1 |
| 8.63 | 348 | 3.00 | 1 |
| 13.53 | 222 | 4.20 | 2 |
| 18.92 | 159 | 5.90 | 2 |
| 24.65 | 122 | 7.60 | 2 |
| 28.05 | 107 | 8.70 | 2 |
| 33.92 | 89 | 10.5 | 2 |
| 44.69 | 67 | 13.8 | 2 |
| 58.22 | 52 | 18.0 | 3 |
| 67.08 | 45 | 18.7 | 3 |
| 81.11 | 37 | 22.6 | 3 |
| 91.36 | 33 | 25.5 | 3 |
| 102.88 | 29 | 28.7 | 3 |
| 118.98 | 25 | 33.2 | 3 |
| 127.74 | 24 | 35.6 | 3 |
| 145.36 | 21 | 40.5 | 3 |
| 165.64 | 18 | 46.2 | 3 |
| 191.56 | 16 | 53.4 | 3 |
| 231.61 | 13 | 64.6 | 3 |
| 301.68 | 9.9 | 84.0 | 3 |
| 392.98 | 7.6 | 84.0 | 3 |
About Us
Caida is a leading provider of high-efficiency transmission systems, delivering integrated motion solutions to industrial markets across Europe, Southeast Asia, and North America. Since 2010, we have maintained full-chain in-house production, with capabilities spanning from 0.5 W micro‑motors to 200 kW industrial power systems under ISO 9001:2015 management. Our engineering and manufacturing processes comply with CE, UL, and RoHS standards, supported by multilingual technical documentation and rapid European-region deliveries within 72 hours.
Our product offerings include high-precision planetary gear motors, planetary gearboxes, brushless and brushed DC gearmotors, servo motors, stepper motors, and tailored mini and multi-purpose motors. We engineer systems achieving torque from 5 Nm to 12,000 Nm with backlash precision ≤ 3 arcmin, offering highly responsive and stable operations.
Caida also develops turnkey automation systems—integrating PLCs, inverters, sensors, and control equipment—optimized for industrial workflows, ensuring seamless factory implementation. Supported by advanced R&D partnerships and committed to client success, we offer technical guidance before and after sales, customization, and user-centric service to build long-term competitive advantage for our customers.
Contact us now to explore how the ZPNΦ82 BRUSH can deliver robust, precision torque in your next motion control application.
In manufacturing facilities with automated conveyor lines, this planetary gearmotor fulfills a pivotal role by providing controlled torque and speed essential for material handling. The gearmotor鈥檚 robust design resists continuous load stresses while its selectable gear ratios support variable speed configurations needed for different production stages. As procured from trusted planetary gear motor manufacturers, this component integrates effectively within conveyor drives and interfaces with programmable logic controllers, ensuring synchronization and process stability. Its compact footprint allows dense equipment layouts without compromising mechanical output quality, streamlining factory floor productivity.
Within robotic pick-and-place operations, the Caida planetary gearmotor supplies the high-torque actuation and variable speed control necessary for repetitive, precise positioning tasks. The system鈥檚 reliable brushed DC motor and precision gearbox combination satisfies stringent accuracy and durability metrics demanded by automation engineers sourcing from qualified dc motor suppliers. Enhanced by multi-stage gear reductions, this gearmotor maintains consistent mechanical output under fluctuating dynamic loads, optimizing cycle times and reducing mechanical backlash. Its compliance with industrial standards facilitates integration into advanced automation workflows, improving overall system responsiveness and operational efficiency.
What customization options do you offer for the Caida ZPNΦ82 Brush planetary gearmotor?
We provide tailored configurations including a wide range of gear ratios from 3.65:1 to 392.98:1 and motor power options (12 V/90 W to 24 V/180 W). Our expertise as a planetary gearmotor supplier allows us to adapt the product to meet specific torque and speed requirements for your industrial applications.
How do I maintain the ZPNΦ82 Brush gearmotor to ensure long-term reliability?
Our ZPNΦ82 Brush integrates a brushed DC motor core designed for straightforward maintenance. Regular inspection and cleaning of the brushes and commutator help extend motor life, which typically reaches around 2000 hours. We recommend following our service guidelines to maximize durability and consistent performance.
What installation support does Caida provide for this industrial planetary gearmotor?
We supply comprehensive technical documentation and guidance to facilitate smooth installation of our compact, modular gearmotor. As experienced planetary gear motor manufacturers, we assist with mounting, wiring, and gear ratio selection to ensure optimal operation in your machinery.
What are your delivery and support options for international business customers?
We maintain rapid delivery capabilities with shipments across Europe, Southeast Asia, and North America, often within 72 hours. Our team provides full pre-sales consultation and post-sales technical assistance to support your procurement and maintenance needs for the planetary gearmotor products.
