· 8 current options and 16 subdivision options
· Half current function at rest
· Over voltage, under voltage and over-current protection functions
8 current options and 16 subdivision options
Half current function at rest
Over voltage, under voltage and over-current protection functions

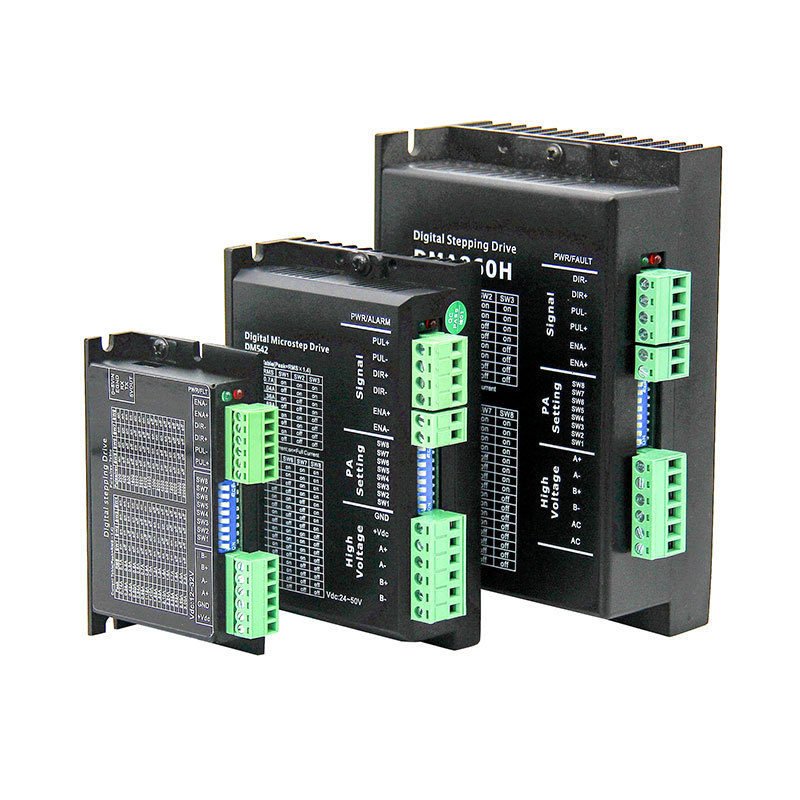

DM series is a mature and economical stepper motor drive. The drive integrates the function of parameter power on automatic setting, which can automatically generate the optimal operation parameters for different motors and maximize the performance of the motor.
Selection Guide
| Mode | DM430 | DM542 | DM860H |
| Power Supply | 12~32VDC | 24~50VDC | 24~75VAC or 30~110VDC |
| Maximum peak current | 3A | 4.2A | 7.2A |
| Control Modes | Enable, Direction, Pulse | Enable, Direction, Pulse, Alarm Output, Double Pulse Mode | |
| Subdivisions | 1~100 | 1~128 | 1~256 |
| Control Signal Voltage | 4~28VDC | ||
| Weight | 110g | 260g | 520g |

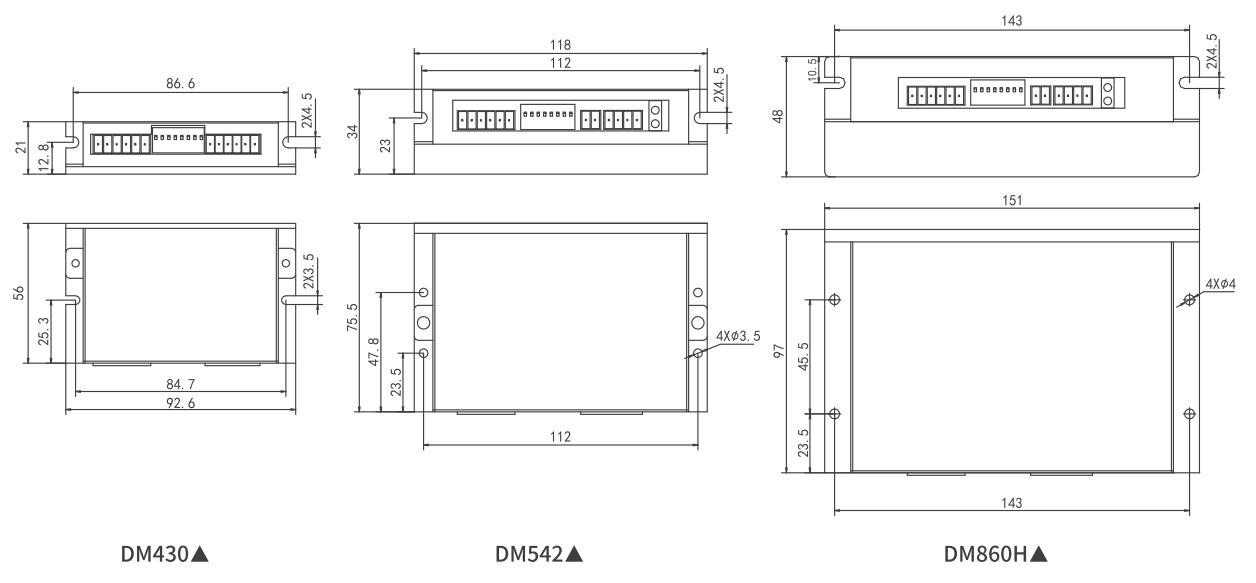

| Dimensions | 92×56×21mm | 118×75.5×34mm | 151×97×48mm |
