· Support Position,Speed, Torque Control Mode
· Easy to Tuning Software
· Multiple Speeds Changeable via Digital Inputs

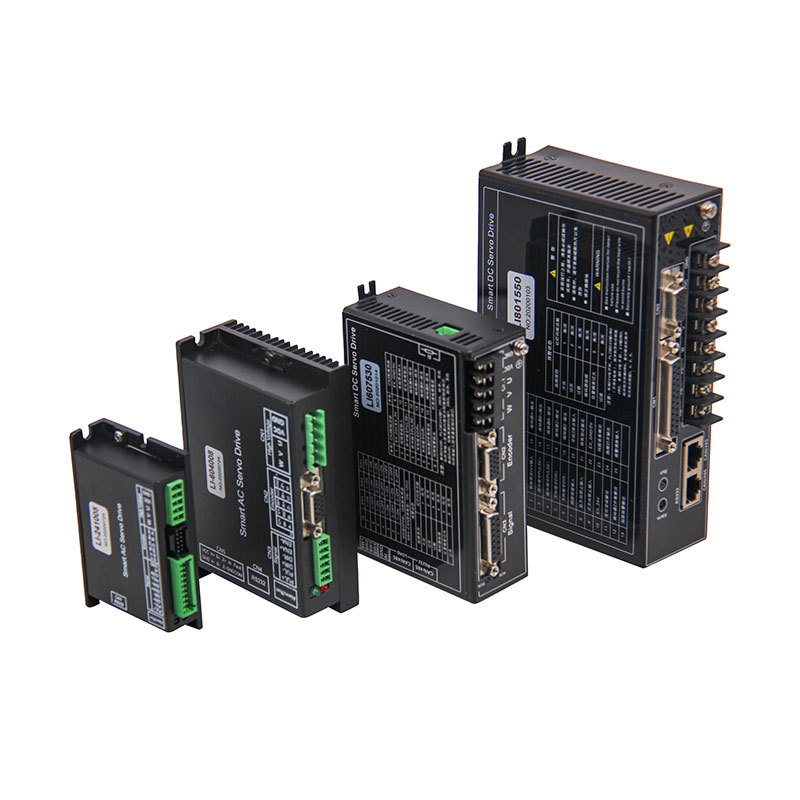

The LI series feature with high sample rate control algorithm, velocity feed forward, torque feed forward math model and flexible filter function. It ensures fast system response time, high accuracy and efficiency.

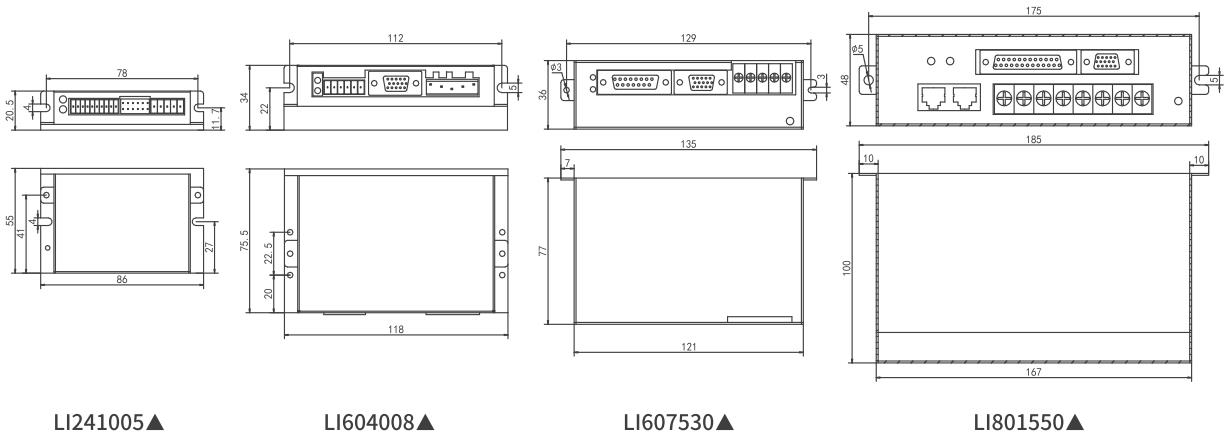

| Mode | PowerSupply | Maximum Continuous Output Currentr | Output Peak Current | Communication Ports | Encorder Resolution | Weight | Dimensions |
| LI241005 | 24VDC | 5A | 10A | RS232，CAN | 1000~2500ppr | 106g | 86×55×21 |
| LI604008 | 18~60VDC | 8A | 24A | RS232 | 260g | 118×75×34mm | |
| LI607530 | 24~60VDC | 15A | 30A | RS232，RS485，CAN | 400g | 121×77×36 | |
| LI801550 | 18~80VDC | 25A | 50A | RS232，RS485，CAN | 910g | 185×100×30mm |
