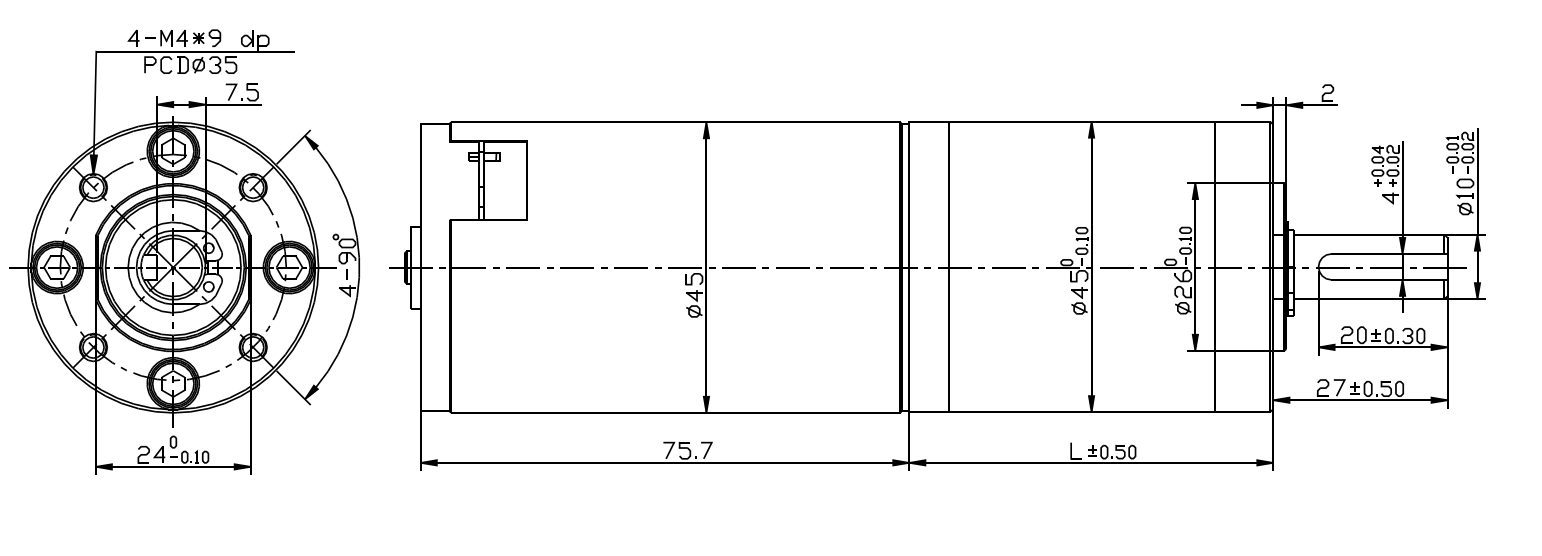

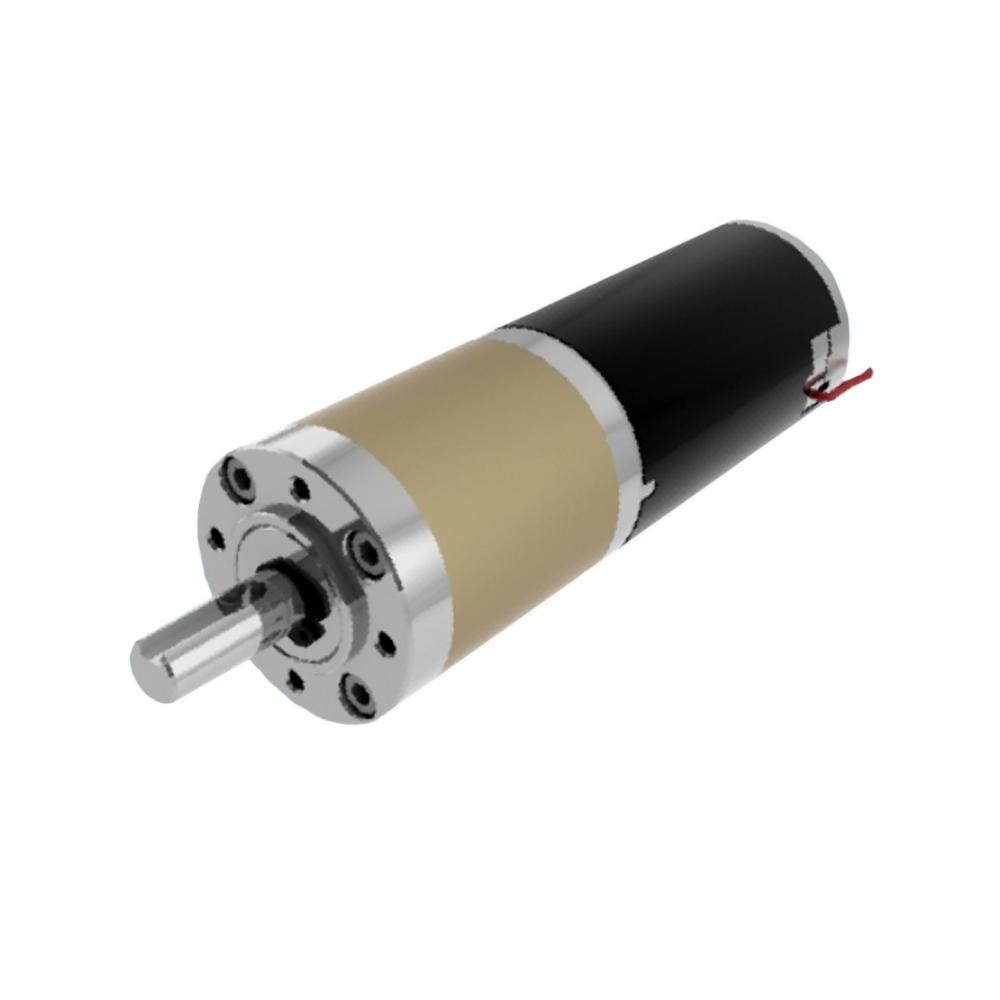

Typical applications:Pan/Tilt camera,Grill,Oven,Cleaning machine,Garbage disposers,Packing bank note machine,Coffee machine,Medical machine,Manotat,Amusement equipment,infusion pumps,Office equeipment,Householdappliances,Automatic actuator.APPEARANCE SIZE
Gearbox data
|
Number of stages |
1 Stages reduction |
2 Stages reduction |
3 Stages reduction |
4 Stages reduction |
5 Stages reduction |
|
Reduction ratio |
3.7 |
10.2、13.7、19.2 |
32.5、50.9、 71.2、99.5 |
139、188、264、 369、516 |
699、977、1367、 1911、2672、3736 |
|
Reduction ratio |
33.6 |
44.9 |
56.2 |
67.5 |
78.8 |
|
Max.Running torque |
20kgf.cm |
60kgf.cm |
120kgf.cm |
120kgf.cm |
120kgf.cm |
|
Max.Gear breking torque |
60kgf.cm |
180kgf.cm |
360kgf.cm |
360kgf.cm |
360kgf.cm |
|
Max.Gearing efficiency |
90% |
81% |
73% |
65% |
59% |
Motor data
|
Motor Model |
Rated Volt.V |
No load |
Load torque |
Stall torque |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
mA |
r/min |
mA |
r/min |
gf.cm |
W |
gf.cm |
A |
||
|
ZY45ZY123000 |
12 |
≤210 |
3000 |
≤1200 |
2430 |
390 |
9.5 |
2470 |
6.6 |
|
ZY45ZY124500 |
12 |
≤440 |
4500 |
≤2050 |
3710 |
480 |
17.8 |
2706 |
10.2 |
|
ZY45ZY126000 |
12 |
≤630 |
6000 |
≤4150 |
5240 |
610 |
31.9 |
4700 |
20.3 |
|
ZY45ZY243000 |
24 |
≤120 |
3000 |
≤620 |
2590 |
380 |
9.84 |
2160 |
3.4 |
|
ZY45ZY244500 |
24 |
≤270 |
4500 |
≤1340 |
3850 |
490 |
18.8 |
3233 |
5.5 |
|
ZY45ZY246000 |
24 |
≤360 |
6000 |
≤2050 |
5120 |
650 |
33.2 |
4715 |
12.2 |
