· Torque Ripple Smoothing
· Microstep Emulation
· Advanced Current Control
· Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Advanced Current Control
Anti-Resonance

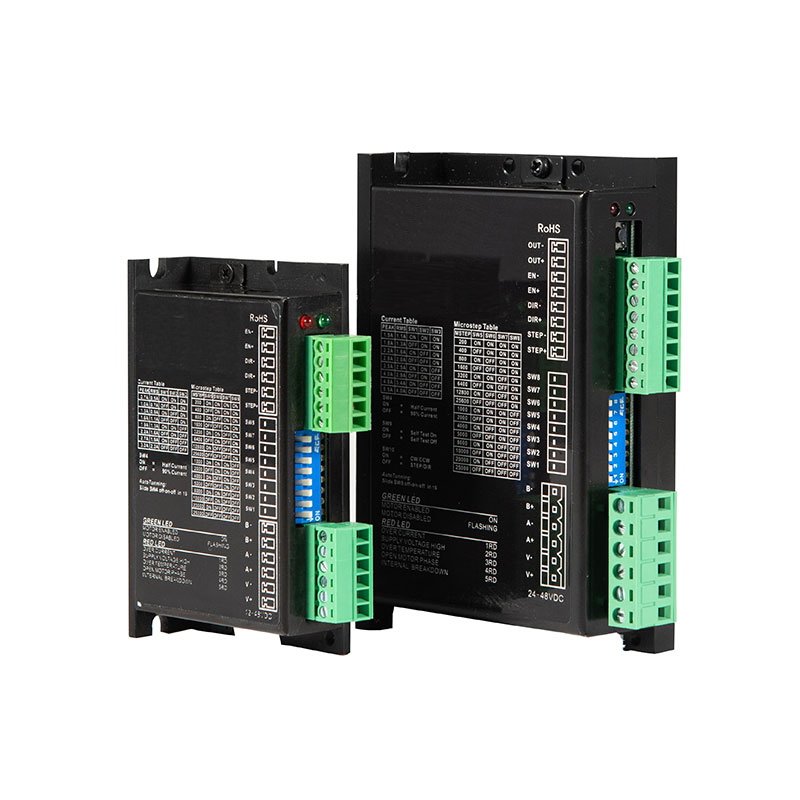

These drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options.
Selection Guide
| Mode | SD3 | SD5 | SD9 |
| Power Supply | 12~48VDC | 24~48VDC | 24~75VDC |
| Maximum peak current | 3A | 5.5A | 9.8A |
| Control Modes | Step & Direction | Step & Direction/CW& CCW | |
| Subdivisions | 1~128 | ||
| Control Signal Voltage | 4~28VDC | ||
| Weight | 140g | 300g | |

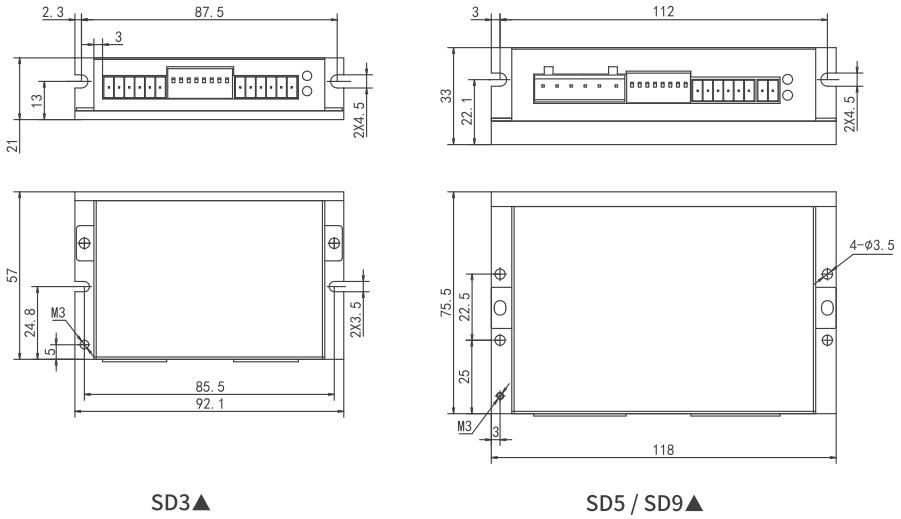

| Dimensions | 92×57×21mm | 118×76×34mm | |
