Motor Data

Gearmotor Data (at 3GN□K)

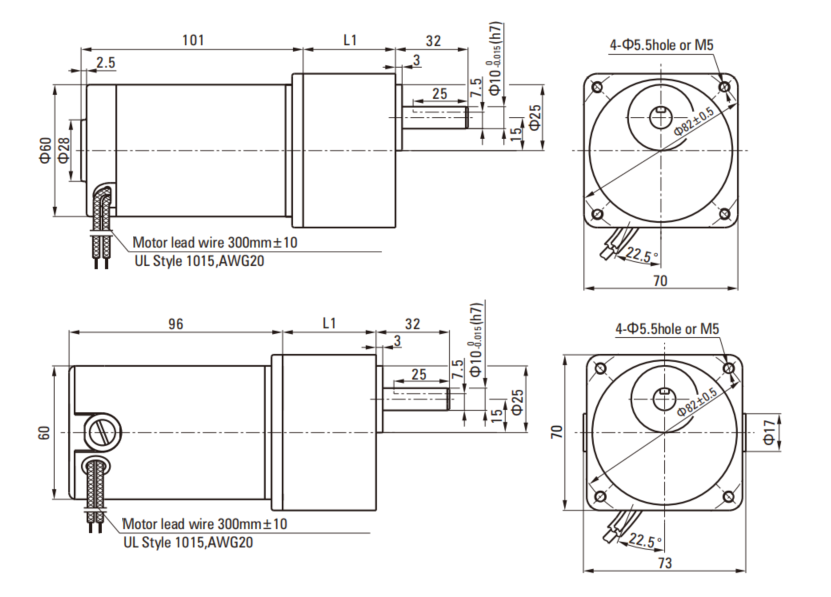

AC-Z3D25-12 Technical Drawing

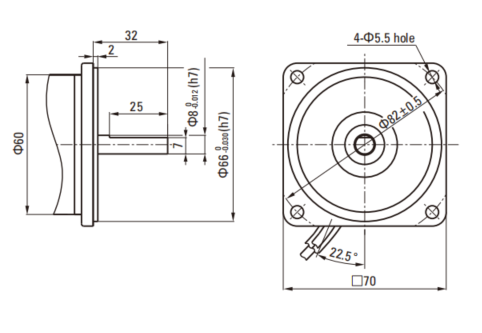

AC-Z3D25-12 Motor Drawing

Optimized for Compact Industrial Integration
The DC Motor 70mm 25W is engineered to meet the demands of industrial engineers, system integrators, and procurement teams requiring a balance of size and performance. This motor excels in applications where space constraints exist but reliable power transmission cannot be compromised. Offered by reputable dc motor manufacturers, the unit accommodates different electrical environments thanks to its 12V, 24V, and 90V models, ensuring compatibility across a diverse range of equipment. Its design facilitates straightforward integration into automated machinery, conveyors, and gearmotor assemblies, providing end-users with a versatile power solution optimized for precise speed and torque control.

Robust Technical Specifications for Reliable Operation
Designed under rigorous quality standards, this DC motor features a 70 mm diameter housing delivering 25W of power with rated torque approximating 80-88 mNm. The product exemplifies technical reliability with brush longevity up to 2000 operational hours and mechanical durability marked by its lightweight 1.0 kg construction. Performance metrics include stable no-load speeds ranging from 3100 to 3300 r/min depending on the voltage model, with current ratings optimized for efficient energy usage. Multiple gear ratio compatibility expands operational flexibility, enabling adjustments in speed and torque to match specific system requirements. As such, it serves as a practical component supplied by experienced dc motor suppliers focused on meeting stringent industrial specifications.

Applicable across Diverse Industrial Contexts
The motor’s versatility allows deployment in various industrial environments, from compact automated machinery requiring precision control to light load power transmission in conveyor systems. It also functions effectively as a replacement unit for existing equipment needing 25W power class motors. The consistent performance and compliance with international certifications such as CE, UL, and RoHS reinforce its value in applications subject to regulatory oversight. Moreover, the motor supports educational and prototype development settings, aiding technical staff in testing and innovation. This breadth of applicability underscores its role as a dependable product from established dc motor manufacturers for integration into system-wide solutions.


Product Advantages

Design and System Integration Benefits
The DC Motor 70mm 25W features a compact and modular design that simplifies system-level integration, particularly where spatial constraints are critical. Its standardized 70 mm diameter housing and support for varying gear ratios enable seamless adaptation into existing drive assemblies and new developments. As a product supplied by reputable dc motor suppliers, it benefits from adherence to ISO 9001:2015 quality management practices, ensuring production consistency and compatibility with dc motor controllers typically employed in automation environments. This structural design promotes reduced installation complexity and enhanced maintenance access, facilitating efficient system deployment for industrial applications.

Enhanced Operational Performance and User Efficiency
From a performance standpoint, the motor delivers steady no-load and rated speeds that enable accurate control vital in automation and robotics sectors. Its brush life expectancy of up to 2000 hours significantly reduces downtime and maintenance costs, supporting continuous operation. Weighing approximately 1.0 kg, this motor is lightweight for easier handling without compromising durability, directly benefiting engineers and technicians during assembly and servicing. Manufactured by trusted dc motor manufacturers, the product’s robust specifications combined with reliable electrical parameters optimize energy consumption, thus contributing to overall system efficiency and improved return on investment.


Use Scenarios

Precision Drive Solution for Automated Machinery
In automated manufacturing facilities, compact drive components are essential to maintain throughput and precision. The DC Motor 70mm 25W fulfills this requirement by providing consistent torque and speed control within limited installation spaces. Its availability in multiple voltage configurations allows tailoring to the specific electrical architecture of automation lines. Furthermore, compliance with international standards ensures integration compatibility with advanced dc motor controllers for real-time speed regulation. This motor serves as a critical element within conveyor and robotic assembly systems, enhancing operational stability and aligning with industrial process control strategies employed by process engineers and maintenance experts.

Role in Conveyor and Light Load Transmission Systems
In logistics and light material handling industries, reliable power transmission is necessary for efficient conveyor operation. This 25W DC motor from a recognized dc motor supplier offers an optimal balance of torque and speed for such applications, ensuring smooth load movement with minimal energy consumption. The motor’s compact design and adaptable gear ratios enable its use in varied transmission setups, from small package sorting conveyors to prototype experimental equipment. Its assured performance supports operational uptime and maintenance scheduling, successfully integrating within system controls and meeting regulatory compliance standards critical for supply chain management environments.


FAQ

What customization options are available for the DC MOTORS 70mm 25W?
The DC MOTORS 70mm 25W comes in multiple voltage models including 12V, 24V, and 90V. Additionally, the motor supports varying gear ratios to precisely match torque requirements, enabling tailored solutions from a trusted dc motor supplier.

How do I maintain the DC MOTORS 70mm 25W for optimal longevity?
To maintain optimal performance and brush life, the motors require periodic inspection aligned with their 2000-hour brush lifespan. Proper operation within rated voltages and current ensures reliability, backed by documentation from the dc motor manufacturer.

What are the shipping and delivery options for industrial buyers in Europe?
Caida offers local 72-hour delivery services across Europe through its overseas warehouses, facilitating fast logistics for industrial customers. This ensures reduced lead times and consistent supply of dc motor products for timely project deployment.

Can the DC MOTORS 70mm 25W be easily integrated into existing systems?
Yes, the compact 70mm diameter and lightweight design (~1.0 kg) support easy integration into space-constrained setups. The motor’s stable speed and torque characteristics help ensure reliable operation across diverse industrial applications requiring precise DC motor control.
