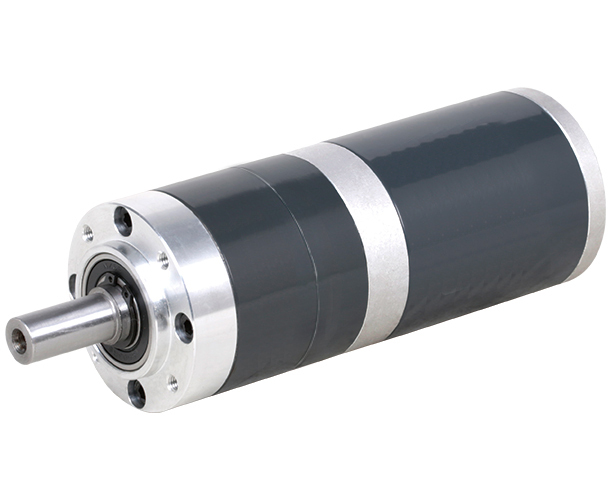

The ZPNΦ62 integrates a high-performance planetary gearmotor with brushless DC technology, offering precise torque control and efficient operation. Ideal from renowned planetary gearmotor suppliers and dc motor suppliers for advanced automation.
Functional Focus for Automation and Robotics
The ZPNΦ62 Brushless DC Planetary Gear Motor caters to industrial automation engineers and system integrators requiring precise motion control within compact spaces. Its design as a planetary gearmotor provides enhanced torque transmission while preserving motor efficiency. This makes it suitable for users across sectors ranging from robotics joints to laboratory automation instruments. As part of offerings from leading planetary gear motor manufacturers, this unit supports integration into complex systems where reliability and space optimization are critical parameters. The role of such a component from experienced planetary gearmotor suppliers is to deliver consistent and customizable performance in demanding operational environments.
Equipped with a 62 mm brushless DC motor paired with a planetary gearmotor, this product delivers rated power options of 60 W and 90 W, operating at 24 V with a rated speed of 3,000 RPM. The integrated planetary gearbox supports gear ratios from 3.65:1 up to 392.98:1, translating into output shaft speeds ranging between 822 RPM and 8 RPM. Allowable torque spans from 0.63 Nm to 45 Nm depending on the gear ratio, ensuring versatile speed-torque targeting. The brushless design enhances motor longevity by eliminating brush wear, thereby reducing maintenance downtime. These precise specifications enable system designers and procurement engineers sourcing from planetary gear motor manufacturers and dc motor suppliers to reliably predict performance within diverse automation frameworks.
The ZPNΦ62 planetary gearmotor is engineered to meet the stringent requirements of sectors including robotic joint actuation, conveyor drives, and calibration rigs. Its compact construction and robust torque capabilities facilitate use in collaborative robotics and precision small machinery where space and noise constraints exist. Within manufacturing and laboratory automation contexts, it delivers repeatable torque and speed control essential for quality assurance and operational uptime. As a component recommended by established planetary gearmotor suppliers, this motor supports optimized workflows by integrating seamlessly with control systems, thereby increasing ROI and reducing total cost of ownership in industrial deployments.
This planetary gearmotor from recognized planetary gear motor manufacturers features modular integration of brushless DC motors and planetary gearboxes, providing a compact and rigid assembly. Multiple gear reduction stages (single, double, triple) enable application-specific customization of output speed and torque without compromising mechanical integrity. The architecture facilitates uniform torque transmission and efficient load distribution, which minimizes wear on components. Its protection rating and precise fit allow for direct installation into systems with limited envelope space. The collaborative design approach by leading planetary gearmotor suppliers aligns with industrial standards, ensuring straightforward interfacing with existing DC motor suppliers’ products for scalable system upgrades.
From a performance perspective, the brushless design significantly reduces maintenance requirements by eliminating brush friction, promoting a longer operational life. The planetary gearmotor achieves smooth torque delivery across a wide range of output speeds, allowing users to fine-tune motion profiles in real-time applications. Its efficiency translates into lower power consumption and reduced heat generation during continuous operations. Users sourcing from dc motor suppliers will find this solution valuable for precision-driven tasks requiring consistent output under varying load conditions. Moreover, the noise levels and mechanical backlash are minimized, which supports quiet operation in environments demanding low acoustic emissions.

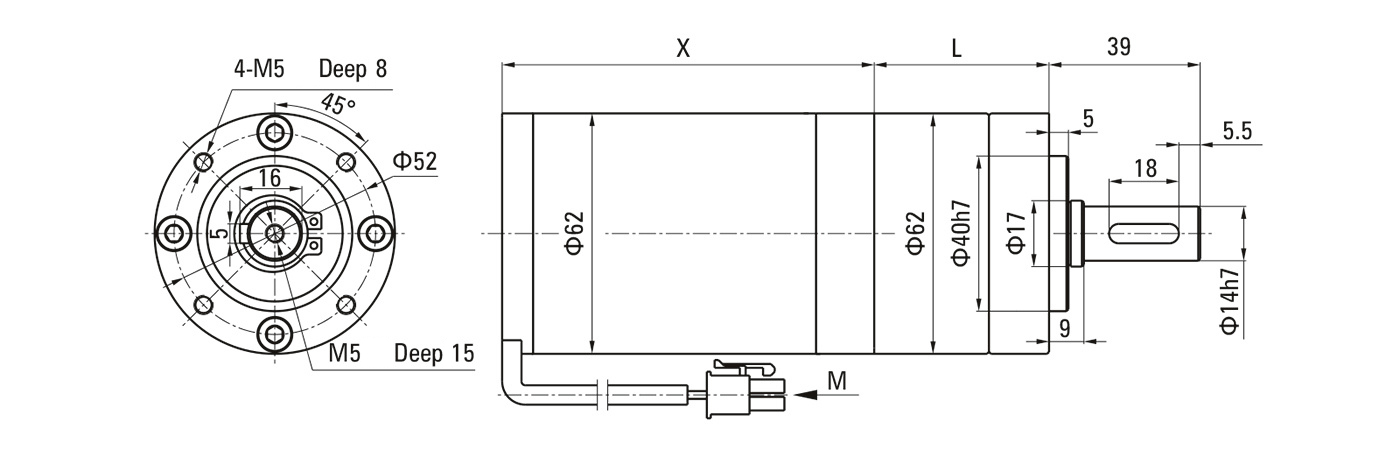

Outside Diameter 62 DC Brushless Motor

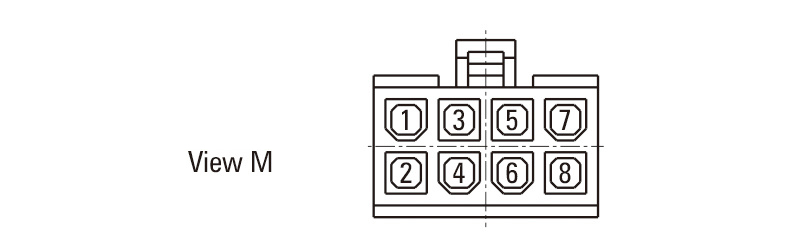

| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| U | V | W | GND | Hv | Hw | Hu | +Vcc |
|
Motor Type |
Dimension(mm) |
Gearbox Model |
Gear Ratio |
Dimension |
|
Z62BLDPN2460-30S |
96 |
62PN□ |
3.65~8.63 | 13.53~58.22 | 67.08~392.98 |
45.1 | 62.7 | 80.3 |
|
Z62BLDPN2490-30S |
113 |
BLDC Motor Technical Data
|
Motor Type |
Voltage(V) |
Rated Power(W) |
Rated Current(A) |
Rated Speed(RPM) |
Rated Torque(N.m) |
Grade Protection(IP) |
|
Z62BLDPN2460-30S |
24 |
60 |
3.4 |
3000 |
0.191 |
20 |
|
Z62BLDPN2490-30S |
24 |
90 |
5.4 |
3000 |
0.287 |
20 |
BLDC Planetary Gear Motor Technical Data
|
Gear Ratio
|
Output shaft speed (r/min) |
Allowable torque(Nm) |
Reduction stage |
|---|---|---|---|
| 3.65 | 822 | 0.63 | 1 |
| 5.36 | 560 | 0.92 | 1 |
| 6.55 | 458 | 1.13 | 1 |
| 8.63 | 348 | 1.48 | 1 |
| 13.53 | 222 | 2.09 | 2 |
| 18.92 | 159 | 2.93 | 2 |
| 24.65 | 122 | 3.81 | 2 |
| 28.05 | 107 | 4.34 | 2 |
| 33.92 | 88 | 5.25 | 2 |
| 44.69 | 67 | 6.91 | 2 |
| 58.22 | 52 | 9.01 | 2 |
| 67.08 | 45 | 9.35 | 3 |
| 81.11 | 37 | 11.31 | 3 |
| 91.36 | 33 | 12.74 | 3 |
| 102.88 | 29 | 14.34 | 3 |
| 118.98 | 25 | 16.59 | 3 |
| 127.74 | 23 | 17.81 | 3 |
| 145.36 | 21 | 20.27 | 3 |
| 165.64 | 18 | 23.10 | 3 |
| 191.56 | 16 | 26.71 | 3 |
| 231.61 | 13 | 32.29 | 3 |
| 301.68 | 10 | 42.06 | 3 |
| 392.98 | 8 | 45.00 | 3 |
About Us
Caida is a global provider of industrial transmission solutions since 2010, delivering efficient drive systems across Europe, Southeast Asia, and North America. With ISO 9001:2015 certification and full in-house production from 0.5 W micro-motors to 200 kW industrial systems, we uphold stringent quality. Our engineering team ensures compliance with CE, UL, and RoHS standards, backed by multilingual technical documentation and European warehouses enabling 72-hour delivery Caida.
We offer a wide product portfolio including planetary gear motors, planetary gearboxes, BLDC, and DC gearmotors, servo, stepper, mini, and multi-purpose motors. Our torque capability spans from 5 Nm to 12 000 Nm with high-precision backlash control ≤ 3 arcmin Caida. Beyond products, Caida excels in custom automation solutions, incorporating PLCs, inverters, sensors, and control systems for optimized workflows.
Our strengths lie in technological leadership, pre-sales and post-sales consultancy, and customer-centric service. Caida collaborates with world-class R&D teams, offering tailored motion solutions and full technical support to enhance customer competitiveness and deliver long-term value Caida.
Contact us now to see how the ZPNΦ62 BRUSHLESS can elevate precision and efficiency in your motion control system.
Use Scenarios
In high-precision manufacturing environments, robotic joints require swift and reliable actuation with minimal backlash and noise. The ZPNΦ62 planetary gearmotor delivers consistent torque profiles essential for smooth joint rotation and positioning accuracy. Within robotic systems, it functions as a core actuator component, facilitating motion control that adheres to tight tolerances demanded by automation workflows. Sourced through reputable planetary gearmotor suppliers, its brushless DC motor technology ensures durability under continuous cyclic loads. Integration into robotic control systems benefits from compatibility with signal interfaces and mechanical coupling designed by top planetary gear motor manufacturers, enhancing system reliability and throughput.
Industrial conveyor drives demand robust, low-maintenance motors capable of supporting continuous operation. The ZPNΦ62 planetary gearmotor suits this requirement by providing a wide torque range adaptable to various cargo weights and speeds. Its high gear ratio options enable precise speed control critical for material flow regulation. As a product sourced from trusted dc motor suppliers, it complies with industrial protection standards and supports efficient torque coupling to conveyor components. The gearmotor’s compact size simplifies installation in densely arranged assembly lines, improving overall factory workflow by reducing downtime and enhancing system resilience.
What customization options are available for the ZPNΦ62 Brushless DC Planetary Gear Motor?
We offer various gear ratios from 3.65:1 to 392.98:1 with single, double, or triple reductions for precise speed and torque adjustment. As a leading planetary gearmotor supplier, we support tailored configurations to suit specific industrial applications requiring compact and efficient drives.
How do I ensure proper installation of the ZPNΦ62 planetary gear motor in my automation system?
Our team provides detailed technical documentation and multilingual support to guide installation. The compact integration of motor and gearbox ensures easy mounting in tight spaces. For smooth commissioning, we recommend referencing our guidelines or contacting us for direct engineering support as experienced DC motor suppliers.
What maintenance is required for the brushless DC planetary gear motor?
The brushless design greatly reduces wear by eliminating brushes, minimizing maintenance efforts compared to brushed motors. Proper lubrication of the planetary gearbox and periodic operational checks help maintain long service life. We prioritize durable designs to reduce downtime in your production line.
Can you support quick delivery for industrial orders of these planetary gear motors?
Yes, we maintain European overseas warehouses that enable 72-hour local delivery across Europe. Our global production capability and certification adherence ensure prompt, compliant dispatch for B2B clients needing reliable planetary gearmotor sourcing and timely supply chain solutions.
